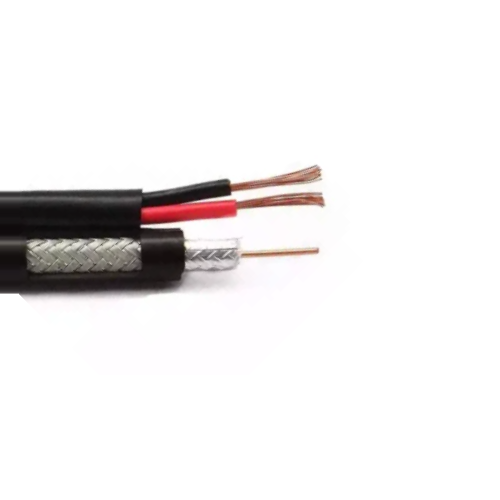

Wavenet H59+182BCRXX2-SM 20/1 Solid RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable

Wavenet H59+182BCRXX2-SM 20/1 Solid RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable

Allowable Ampacity for Wavenet H59+182BCRXX2-SM 20/1 Solid RG59 18/2 BC Siamese Unshielded CMR Coaxial Power Cable: 100 Amps

Applicable Standards:

•RG59/U 95% Copper Braid CATV 75 Ω Coaxial Cable
•Reference Standard SCTE IPS-SP-001 / UL 1655, UL 13, UL 444

Also Known as:

Coaxial Cable, Wavenet Cable, CCTV Cable, RG59/U Cable, RG Cable, Power Cable

Colors:

White, Black

Package:

⦁ 1000ft / Reel

Specification:

AWG Size: 20
Number of Conductor: 1
Conductor: Bare Copper
Diameter: 0.03228 (inches)
Insulation Material: Skin Foam PE
Nom. Thickness: 0.0559 (inches)
Insulation Diameter: 0.14409 (inches)
Braid Shield: C. C. A.
Coverage Area: 95 (%)
Jacket Material: PVC
Nominal Thickness: 0.0307 (inches)
Cable Diameter: 0.1756 (inches)
AWG Size: 18
Number of Conductor: 2
Number of Strands: 7
Insulation Material: PE
Jacket Material: PE
Nom. Thickness: 0.0314 (inches)
Cable Diameter: 0.2358 (inches)
Nominal Weight: 42 lbs.
Part Number: H59+182BCRXX2-SM
