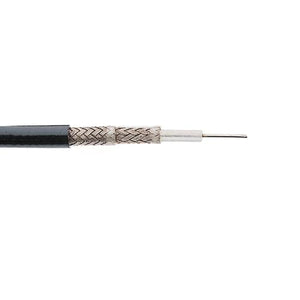

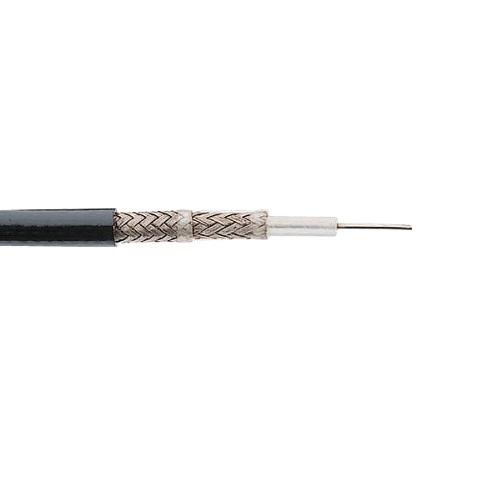

M/17/94-RG179 38 AWG 1C Non-Lowsmoke Solid Extruded Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable

M/17/94-RG179 38 AWG 1C Non-Lowsmoke Solid Extruded Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable

Application:

• Non-Low Smoke Radio Frequency For Naval Shipboard.
• These Cables Have Excellent Abrasion Characteristics, And Low Smoke, Zero Halogen, And Low Toxicity Properties.

Also Known As:

M17 Wire, Non-Low Smoke Cable, Dielectric Cable, Coaxial Cable, MIL-DTL-17 Cable, Military Cable.

Allowable Ampacity for M/17/94-RG179 38 AWG 1C Non-Lowsmoke Solid Extruded Dielectric Core Silver-Coated Copper Wire TC 2000V Coaxial Cable: 100 Amps

Construction:

Inner conductor:

• Seven strands of silver-coated, annealed-copper-covered, steel wire, each strand, .004 inch diameter
• Overall diameter: 0.012 inch ± 0.001

Dielectric core:

• Type F-1: Solid, extruded PTFE
• Diameter: 0.063 inch ± 0.003.

Outer conductor:

• Single braid of AWG No. 38 silver-coated copper wire.
• Diameter: 0.084 inch, maximum.
• Coverage: 92.3%, nominal
• Carriers: 16
• Ends: 5
• Picks/inch: 12.0 ± 10%

Jacket:

• Type IX: FEP.
• Diameter: 0.100 inch ± 0.005.

Specification :

• Size: 38 AWG
• Temp Range: -67 +392 Fahrenheit
• Temp Range: -55 +200 Celsius
• Max Operating Voltage VRMS: 1200
• Impedance Ohm VP: 75 +/- 3%
• Capacitance: 23 Pf/Ft
• Test Frequency: 3 GHz Unswept
• Weight: 0.01155 lbs
• Shields: 38SC 0.084 Inches
• Conductor: SCCS 7/.004 0.012 inches
• Jacket O.D.: 0.100
• Armor O.D.: N/A
• Jacket Material: FEP-IX
• Dielectric: PTFE .063 Inches
• Part Number: M/17/94-RG179
