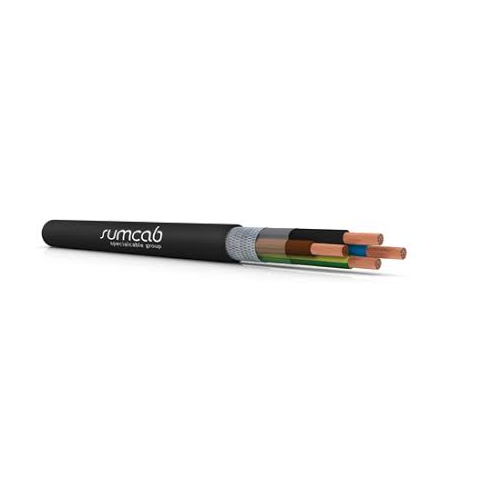

Sumflex® 111000040250000 8 AWG 4C Bare Copper Braid Shielded Concentric PVC RC4V-K 0.6/1kV Screened Cable

Allowable Ampacity for Sumflex® 111000040250000 8 AWG 4C Bare Copper Braid Shielded Concentric PVC RC4V-K 0.6/1kV Screened Cable: 100 Amps

Application:

Flexible power, instrumentation and control cable. For connections where the voltage induced by an external electromagnetic field can affect the transmitted signal. For powering equipment such as variable speed drives, scales electronics etc

Also Known as:

Sumflex® RC4V-K Cable, RC4V-K Cable, Sumflex Cable, Screened Cable, Sum Cable, Flexible Cable

General properties:

• Construction regulations IEC60502
• Flame retardant according to EN60332-1-2 / IEC60332-1-1
• Good resistance to chemical agents
• Good resistance to water impacts
• Weatherproof

Technical Characteristics:

• Service voltage 0.6/1kV
• Test voltage 3,500V AC for 5 min.
• Service temperature –25ºC to 90ºC in fixed installation
• Maximum conductor temperature 90ºC (250ºC in case of short circuit)
• Electrical resistance according to UNE 60228
• Maximum allowable current according to IEC60364
• 5 x Ø Minimum bending radius

Specification:

AWG Size: 8
Number of Conductor: 4
Conductor: Bare Copper
Conductor x Section: 4G10 mm²
Exterior: 19.5 mm
Resistance Ω/km at 20ºC: 1.91
Intensity (30ºC) To (on air): 75
Rated Voltage: 0.6/1kV
Weight: 549.67 lbs/MFT
Part Number: 111000040250000

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
