Leviton SDX Wall-Mount Fiber Enclosure 5WLRG-12C

Product Information

Specification

About:

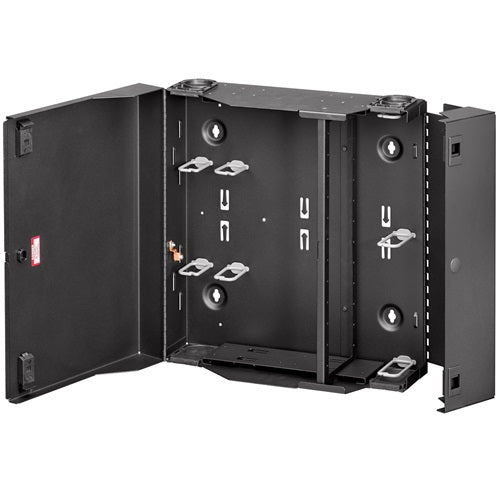

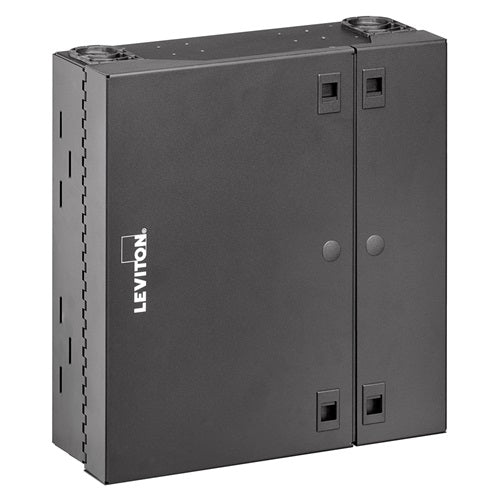

OPT-X SDX Wall-Mount Fiber Optic Enclosures allow for inter-connect or cross-connect between cable and active equipment while using minimum wall space. The enclosure features and design allow for easy field termination of fiber connectors, splicing, or pre-terminated plug-and-play solutions. The fiber enclosures are primarily used in controlled indoor applications, such as in entrance facilities, equipment rooms, and telecommunications rooms.

Also known as:

SDX Wall-Mount Fiber Enclosure, HDX Adapter Plates and HDX Cassettes, SDX Adapter Plates.

Specification:

Type : Wall Mount Enclosure
UPC : 078477824986
Color : Black
Material : 16-gauge steel

Features:

• Dual doors (service side and customer side) with slam latches for ease of access
• Low-profile (depth), small-size enclosure minimizes protrusion from the wall
• Large-size enclosure can be retrofitted in field for splice only enclosure (accepts up to 24 splice trays)
• Accepts SDX Adapter Plates, Splice Modules, MTP Cassettes, and Splice Trays for multiple solution capabilities
• Removable cable entry/exit grommets allow for pre-terminated fiber trunk install, cable protection, and minimizes dust buildup
• Constructed of 16-gauge steel for enhanced durability
• Ground lug provided for added cable strain relief protection and grounding of armored cable
• Optional cable strain-relief mounting kit (installed on service side) protects incoming fiber cable
• Optional key/lock kit secures service-side door or service-side and customer-side doors
• Optional HDX-to-SDX conversion adapter bracket accepts HDX Adapter Plates and HDX Cassettes
