4U Rack-Mount Fiber Distribution Patch & Splice Panel Enclosure Slide-Out FDU FB36-6386R12

Product Information

Specification

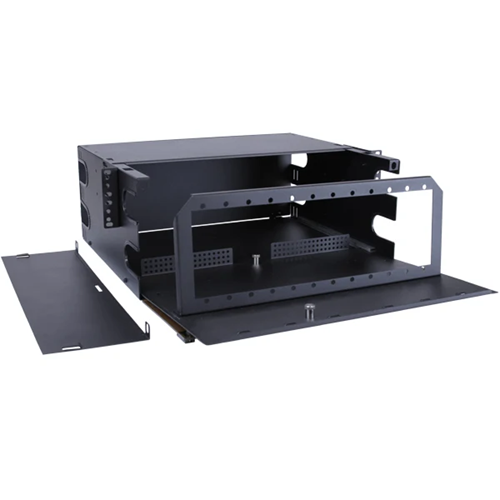

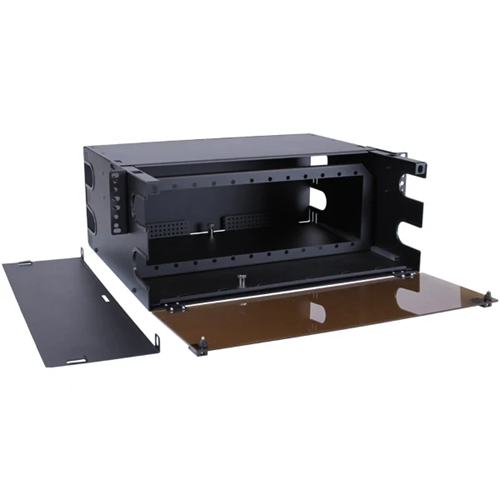

The 4U Rack-Mount Fiber Distribution Patch & Splice Panel Enclosure is a high-density fiber distribution unit designed for fiber patching, termination, and splicing in a single rack-mount enclosure. This 4U panel supports up to 12 LGX adapter panels and provides capacity for up to 288 fiber splices when configured with eight 36-fiber splice trays. The slide-out master panel provides convenient access to fiber connections and splice trays, while the integrated tray stop helps prevent overextension of fiber cables. The removable two-piece top and door latches allow easy access for installation and maintenance.

Features :

• 4U Rack-Mount Design: Designed for installation in standard 19-inch equipment racks.

• High-Density Capacity: Supports up to 288 fiber splices.

• 12 LGX Adapter Panel Capacity: Holds up to 12 compatible LGX fiber optic adapter panels.

• Splice Tray Support: Accommodates up to eight 36-fiber splice trays.

• Smooth Slide-Out Design: Provides convenient access to fiber connections and splice trays.

• Integrated Tray Stop: Helps prevent overextension of fiber cables when the panel is pulled out.

• Removable Two-Piece Top: Allows easy access to the interior of the enclosure.

• Easy-Access Door Latches: Provides convenient access to adapter panels and fiber connections.

• Universal Mounting Hardware: Supplied for 19-inch rack installation.

• Flexible Termination: Can be ordered fully terminated with fiber cabling or pigtails.

• Cable Management: Includes cable management spools for organized fiber routing.

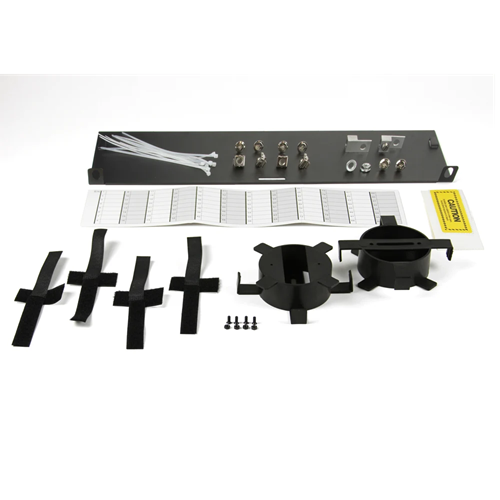

What's in the Box

• Qty 1 – 4U Slide-Out Rack-Mount Fiber Patch & Splice Panel

• Qty 2 – Cable Management Spools

• Qty 1 – Installation Hardware and Cable Management Kit
