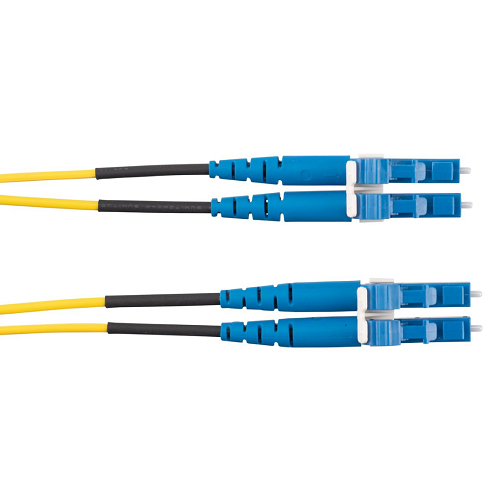

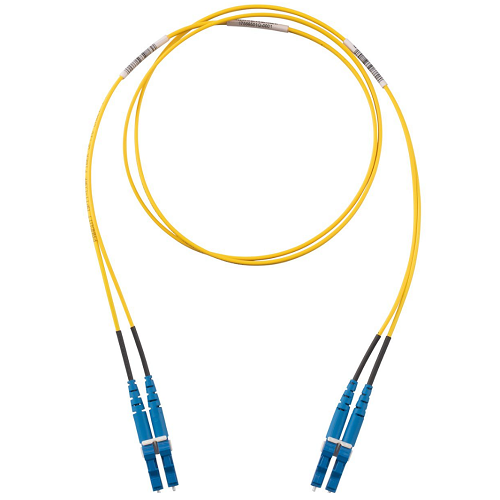

Opti-Core Fiber Optic Patch Cord Pigtail OS1/OS2 LC Duplex
Select a Variant
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The Opti-Core Fiber Optic Patch Cord Pigtail OS1/OS2 with LC Duplex connectors is a high-quality cable designed for networking and telecommunication applications. This patch cord is optimized for OS1/OS2 single-mode fiber, ensuring low attenuation and high data transmission rates. The LC duplex connectors provide a secure and stable connection, ideal for high-speed data networks.
Also Known As:
• Single-Mode Fiber Compatibility
• LC Duplex Connectors
• High Performance
• Optimized Data Transmission
Common Applications:
Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Standards Met:
Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
Construction:
• Core and Cladding: Uses a single-mode optical fiber with a small core diameter that allows only one mode of light to propagate, reducing dispersion and increasing transmission distance.
• LC Duplex Connectors: These are high-precision connectors with a locking tab mechanism for secure, stable connections. The duplex configuration allows for bidirectional data transmission.
• Jacket Material: Typically made of a durable, protective material that is resistant to environmental factors, such as UV light, moisture, and temperature variations, making it suitable for both indoor and outdoor use.
• Strain Relief: Incorporates strain relief mechanisms to protect the fiber from stress and damage at the connection points.
• Polishing and Termination: The fiber ends are precisely polished and terminated to ensure minimal signal loss and optimal light transmission.
• Quality Testing: Each cable is typically tested for insertion loss and return loss to ensure high performance and reliability.
Features:
• OS1/OS2 Compatibility: Designed specifically for single-mode OS1/OS2 fibers, making it ideal for long-distance, high-speed data transmission.
• LC Duplex Connectors: Features low-profile, high-precision LC connectors with a secure latch mechanism, enabling easy and stable connections.
• High Data Rates: Supports high bandwidth and data transfer rates, essential for modern telecommunications and data center applications.
• Low Attenuation and Back Reflection: The precise polishing and quality of the fiber ensure low signal loss and minimal back reflection, crucial for maintaining signal integrity.
• Durability: Constructed with robust materials, making it resistant to environmental and mechanical stress, suitable for various installation environments.
• Compact and Flexible Design: The cable's design is both space-efficient and flexible, facilitating easy installation and routing in tight spaces.
Download PDF Spec Sheet
