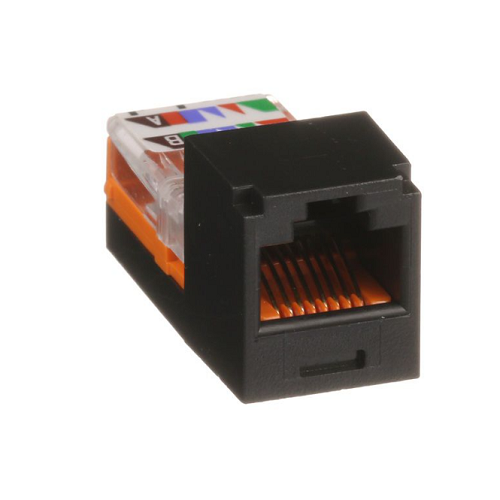

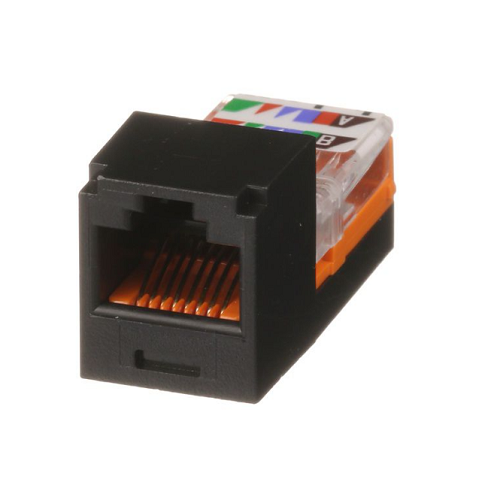

Mini-Com RJ45 Cat5e UTP Jack Module Leadframe

Product Information

Specification

Also Known As:

The Mini-Com RJ45 Cat5e UTP Jack Module Leadframe can also be referred to as a Cat5e RJ45 jack, Ethernet jack, network jack, or simply as a Cat5e jack.

About:

This is a compact, modular Ethernet connector designed for high-speed data transmission. It is compatible with Cat5e cabling, ensuring optimal performance for networking applications. The leadframe technology ensures precision and reliability in connectivity.

Common Applications:

• Data Centers: For connecting servers, switches, and other equipment.
• Offices: Used in workstations, computers, printers, and other devices to the network.
• Home Networks: Connecting PCs, smart TVs, gaming consoles, etc., to the internet.
• Telecommunications: Used in the telephone and internet connections in various facilities.

Features:

•  Ease of Installation: Quick and easy installation with a tool-less or minimal tool requirement.
•  High Performance: Meets Cat5e performance requirements ensuring high-speed data transmission.
•  Durability: Made with materials that resist wear and tear, ensuring a long lifespan.
•  Compact Design: Saves space and allows for increased flexibility in tight spaces.
•  Compatibility: Can be used with a wide range of devices and is compatible with both T568A and T568B wiring schemes.

Standards:

•  TIA/EIA-568-B: The standard for the design and verification of unshielded twisted pair cabling systems.
•  ISO/IEC 11801: International standard for data communication and cabling systems.
•  UL Listed: It may also adhere to the safety standards and requirements set by Underwriters Laboratories.

Construction:

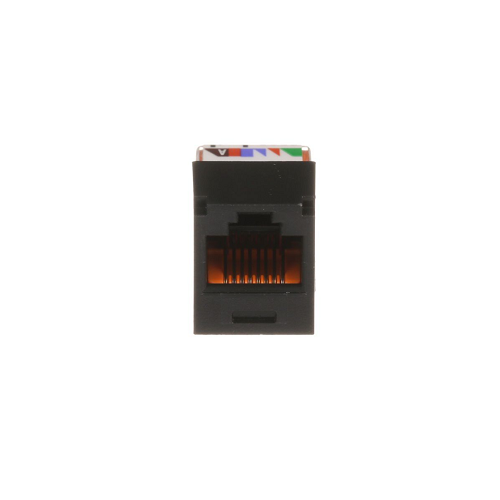

•  Front Module: Consists of the RJ45 socket that is made to easily snap into wall plates, patch panels, and surface mount boxes.

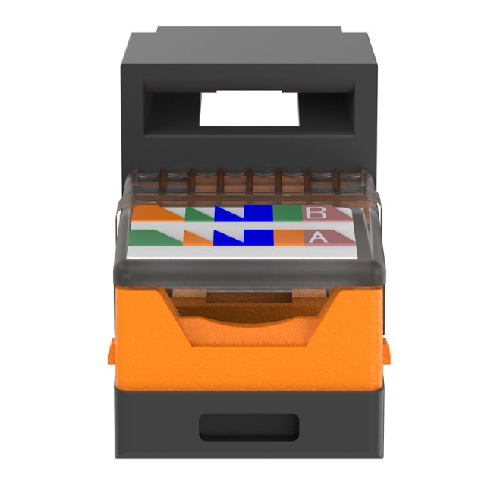

•  Rear Module: Contains IDC or punch down termination blocks for easy cable connections.
•  Leadframe Technology: Enhances the performance by ensuring precise and reliable connections.
•  Materials: Constructed with high-quality plastics and metals to ensure durability and optimal performance.
