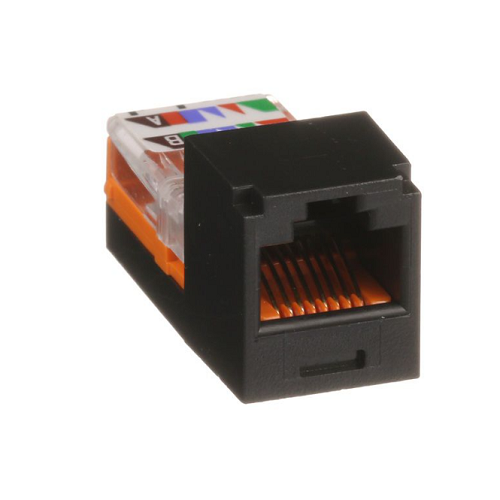

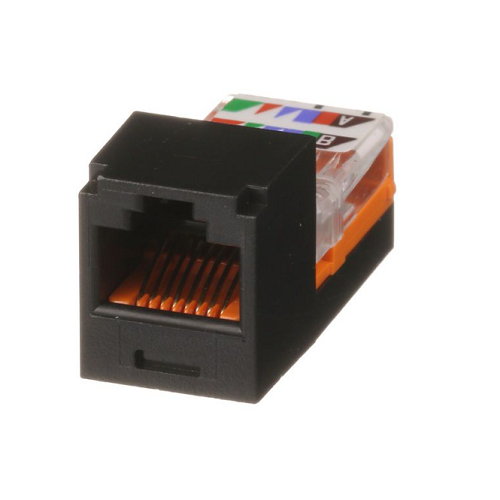

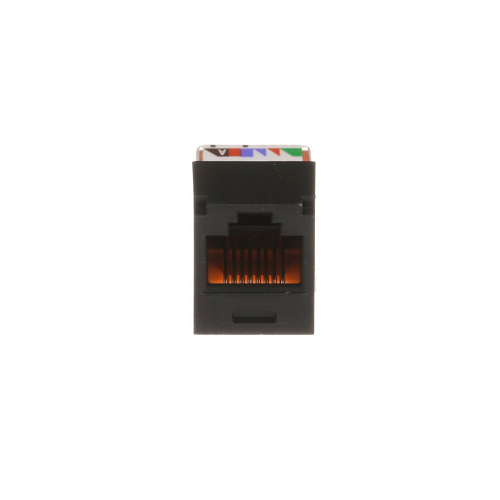

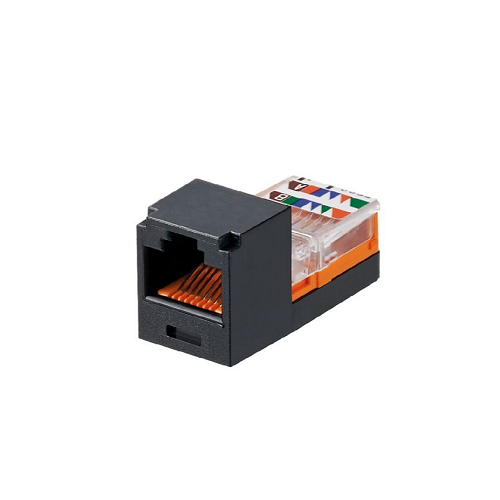

22-24 AWG Mini-Com RJ45 Cat5e UTP Jack Module Leadframe CJ588BLY

Product Information

Specification

Also Known As:

The 22-24 AWG Mini-Com RJ45 Cat5e UTP Jack Module Leadframe CJ588BLY is also known as a Cat5e jack, Ethernet jack, or network jack, characterized by its specific model number CJ588BLY and its compatibility with 22-24 AWG wire sizes.

About:

The CJ588BLY is a high-performance RJ45 jack module designed to provide reliable and robust connections for Cat5e UTP cables. It is optimized for 22-24 AWG wires, ensuring that it can handle a variety of installation and networking requirements, offering enhanced performance for data and voice applications.

Specification:

Common Applications:

•  Office Networks: Connecting computers, VoIP phones, printers, and other peripherals to the local network.
•  Residential Networking: Facilitating connections to PCs, gaming consoles, streaming devices, etc.
•  Data Centers: Implementing server to switch connections and other high-speed data transmission requirements.
•  Educational Institutions: Networking computers, projectors, and other digital equipment for interactive learning.

Features:

•  Enhanced Connectivity: Specially designed for 22-24 AWG wires for optimal connections.
•  Universal Wiring: Supports both T568A and T568B wiring schemes.
•  Quick Installation: Designed for easy punch-down installation, reducing setup time.
•  High Performance: Complies with Cat5e performance standards, ensuring reliable data transmission.
•  Durability: Built with quality materials to resist wear and ensure a long operational lifespan.

Standards:

•  TIA/EIA-568-B: Meets or exceeds the requirements for Cat5e performance.
•  ISO/IEC 11801: Conforms to international data communication and cabling standards.
•  RoHS Compliant: Free from hazardous materials, making it environmentally friendly.

Construction:

•  Jack Module: Composed of a durable plastic housing that encases the metal leadframe for optimal signal transmission.
•  Termination Points: Equipped with IDC terminals or punch down blocks for secure cable attachment.
•  Mounting Options: Can be easily snapped into wall plates, patch panels, and surface mount boxes.

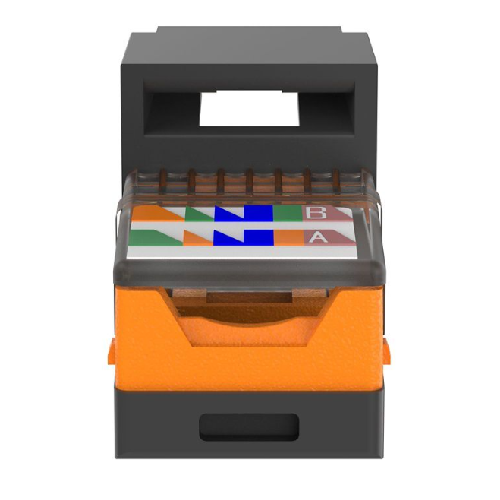

•  Color Coding: The module may feature color-coding to facilitate easy wiring according to T568A or T568B standards.
