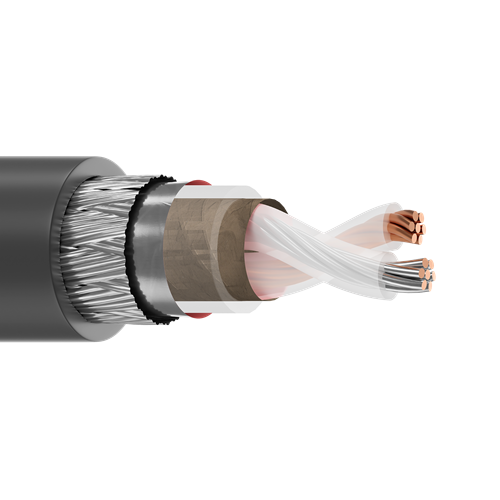

Belden 9207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Belden 9207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable
Roll over image to Zoom
Belden 9207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: NNC9207
belden-single-conductor-rg-6-u-fhdpe-insulation-precision-video-coax-cable

Select a Gauge

Belden 9207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Availability: In stock

Min Length: 1 FT
Max Length: 10000 FT
Price:
$4.06 /FT
$4.06 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Curtis Fox
Cable works well

Cable works well for the application.

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

Product Information
Specification

Belden 9207 20 AWG 1 Pair 7x28 Stranding 100 Ohm Twinax Cable

Description:

Twinax 100Ω, 1 Pair, 20 AWG (7x28) one tinned copper, one bare copper conductor, polyethylene insulation, polyethylene inner jacket, Duofoil (100% coverage) + a tinned copper braid shield (85% coverage), PVC outer jacket, CMG.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.083 in (2.1 mm) and 0.236 in (5.99 mm)

Outer Shield:

• Layer 1: Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Material Trade Name Duofoil, Coverage [%] 100%

• Layer 2: Type Braid, Tinned Copper (TC) Material, Coverage [%] 85%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.330 in (8.38 mm)
• Overall Cable Diameter (Nominal): 0.330 in (8.38 mm)

Applications:

• Computer, Instrumentation

Specifications:

• Size (AWG): 20
• No. of Pair: 1
• Stranding: 7x28
• Nom. Diameter: 0.036 in
• Impedance: 100 Ohm
• Conductor Material: TC - Tinned Copper & BC - Bare Copper
• Part Number: 9207

Manufacturer Equivalents
Alpha Wire : Black : M4271
Belden : Black : 9207 0101000
Omni Cable :  Black : BEL9207
Wirexpress : Black : B9207
Omni :  Black : BEL9207



*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Download PDF Spec Sheet
