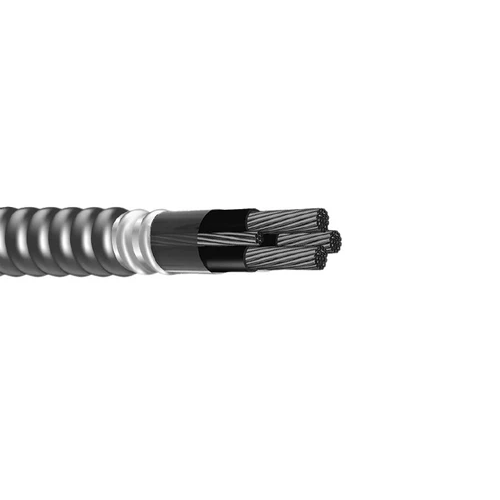

500-3C W/G Aluminum interlocked Armor AIA Copper Conductor Type MC Metal Clad PVC Jacket Power Cable

500-3C W/G Aluminum interlocked Armor AIA Copper Conductor Type MC Metal Clad PVC Jacket Power Cable

Application:

Southwire’s 600 Volt Type MC power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Silicone Free.

Also Known As:

Metal clad cable, aluminum armored cable, mc cable, mc wire, mc cable wiring, armored wire, armoured electrical cable, mc electrical wire, fire alarm mc cable, flexible armored cable, armored cable wiring, metal clad cable type mc, AIA Cable, armored fire alarm cable

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• UL 44 Thermoset-Insulated Wires and Cables
• UL 1569 Metal-Clad Cables
• UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
• ICEA S-58-679 Control Cable Conductor Identification Method 3 (1-BLACK, 2-RED, 3-BLUE)
• ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
• IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr

Construction:

• Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
• Insulation: Cross Linked Polyethylene (XLPE) Type XHHW-2
• Grounding Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
• Filler: Paper filler (cable size 8 & 6 uses Polypropylene filler
• Binder: Polypropylene tape
• Armor: Aluminum Interlocked Armour (AIA)
• Overall Jacket: Polyvinyl Chloride (PVC) Jacket

Specifications:

• Size: 500 MCM
• Number of Conductor: 3
• Number of Conductor: 37
• Diameter Over Conductor (inch): 0.789
• Insulation Thickness (Mil): 65
• Concentric Neutral No. x AWG: 1 x 4/0
• Diameter Over Armor (inch): 2.341
• Jacket Thickness (mil): 75
• Approx. OD (In): 2.491
• Approx. Weight (Lbs/1000'Ft): 6691
• Min Bending Radius (In): 17.4
• Max Pull Tension lb: 12000
• Allowable Ampacity At 75°C (Amp): 380
• Allowable Ampacity At 90°C (Amp): 430
