4 Pair 23 AWG Cat6A Plenum 10 Gain XP+ Solid Copper Cable White 6B-272-4B 1000 ft Reel

Product Information

Specification

About :

10 Gain XP+ CAT 6A cable meets or exceeds all industry requirements including  ANSI/TIA-568.2-D. This cable utilizes a proprietary core wrap which assures excellent alien crosstalk performance. This cable fully complies with UL 444 requirements for an unshielded twisted pair product. 10Gain XP is ideal for PoE applications requiring higher levels of current and simultaneously up to 10 Gigabit Ethernet.

Also Known as :

4 Pair Count, 23 AWG Cable, 4 Pair 23 AWG, CAT6A Cable, Category 6a Cable, 10Gain Plus Cat6a Cable, CMP Cable, Plenum Cable, Twisted Pair Cat6a Cable, Unshielded Cable.

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• Article 800, NEC (NFPA 70)

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring
• Backward compatible to legacy protocols and applications
• HDBaseT Class A and B

Benefits:

• Guaranteed AXT performance in virtually any installation environment
• Assures consistent worry-free performance
• Assures ample bandwidth headroom
• Higher cable density, smaller bend radius and lowers installation costs

Features:

• Guaranteed 15 dB AXT margin
• UL Verified CAT 6A
• Tested to 650 MHz

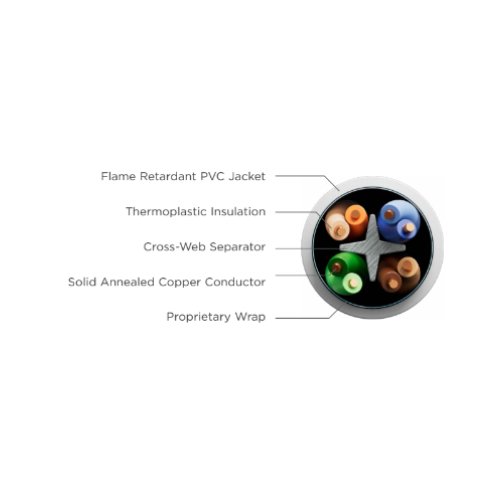

• Proprietary core wrap

Specifications:

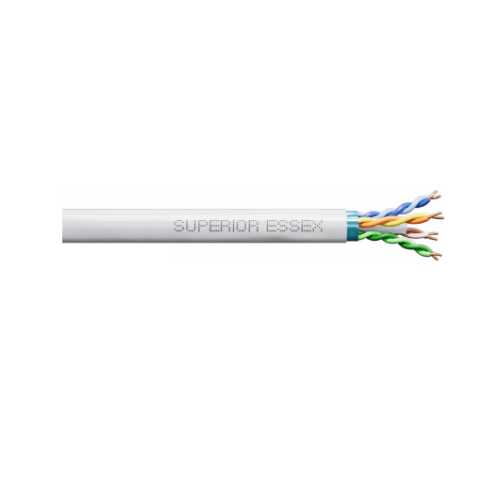

*Image is an illustration purpose only, may not reflect the exact color sold.
