1000' 23 AWG 4 Pairs Black CAT6A CMX Solid Bare Copper LLDPE Jacket Outdoor Cable

Product Information

Specification

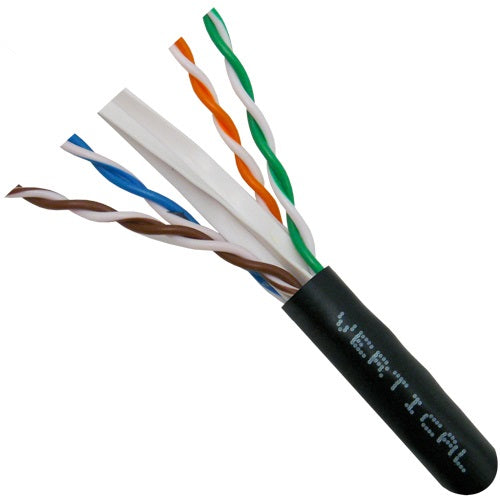

1000' 23 AWG 4 Pairs Black CAT6A CMX Solid Bare Copper LLDPE Jacket Outdoor Cable

DESCRIPTION:

Category 6A CMX Outdoor-Rated Cable, 8-Conductor, UV-Resistant Jacket, 23 AWG Solid Bare Copper, 1000 ft.

FEATURES:

⦿ High-Performance Data Cable
⦿ Category-6A
⦿ CMX Outdoor Rated
⦿ 10 Gigabit Ethernet
⦿ Category-6A Unshielded Twisted Pair
⦿ Easily Identified Color-Striped Pairs
⦿ 23AWG Solid Copper Conductors
⦿ Exceeds TIA/EIA-568C.2
⦿ Outdoor UV-Rated Jacket
⦿ ETL Listed, RoHS Compliant
⦿ 1000ft Wooden Spool

Technical Data

⦿ Rated Temperature 70ºC
⦿ Rated Voltage 60V
⦿ Flammability Test IEC-332-1

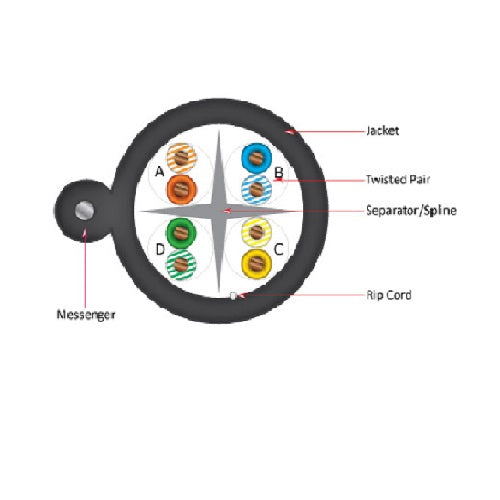

Conductor Solid Bare Copper

⦿ Size 23 AWG

Insulation PE

⦿ Insulation Diameter (±0.005mm) 1.02
⦿ Twisted Pair Diameter (±0.01) 2.04

Separator/Spline LDPE

⦿ Assembly Diameter 5.20

Jacket (Black) LLDPE

⦿ Outer Diameter (±0.20mm) 7.60
⦿ Rip Cord Nylon
⦿ Color: Black

Color of Pairs

⦿ Pair 1: Blue, White-Blue
⦿ Pair 2: Orange, White-Orange
⦿ Pair 3: Green, White-Green
⦿ Pair 4: Brown, White-Brown

Mechanical Characteristics

⦿ Test Object Jacket
⦿ Test Material LLDPE
⦿ Before Tensile Strength (Mpa) >= 10.6
⦿ Aging Elongation (% >= 300
⦿ Aging Condition (ºCxhrs) 100x168
⦿ After Tensile Strength (Mpa) >= 85% of unaged
⦿ Aging Elongation (% >= 50% of unaged
⦿ Cold Bend (-20±2º Cx4hrs) No Crack

Marking on Jacket

⦿ VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 23 AWG OUTDOOR UV LLDPE 10GS AUGMENTED CAT6A TIA/EIA - 568-C.2 RoHS V1379PXXXX XXXFT (SEQUENTIAL FOOT MARKERS ON JACKET)
