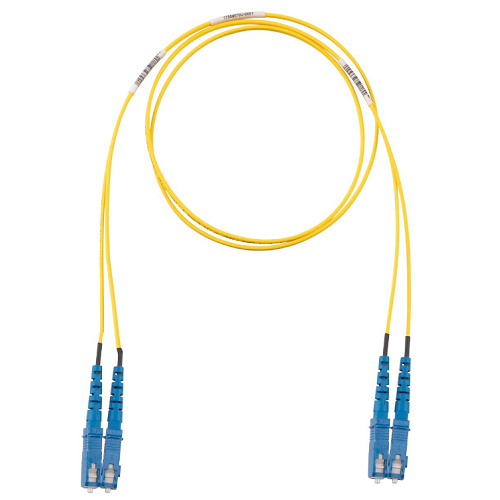

2 Meter 2 Fiber Opti-Core Optic Patch Cord Pigtail OS1/OS2 SC Duplex F923RSNSNSNM002

Product Information

Specification

About:

This patch cord is equipped with two single-mode fibers, optimal for OS1/OS2 applications, which means it is designed to support both indoor and outdoor installations that require low attenuation and high bandwidth capabilities. The SC duplex configuration allows for simultaneous, bidirectional communication.

Also Known As:

• 2M SC Duplex Single-Mode Patch Cable
• Fiber Optic Jumper SC to SC
• Single-Mode Duplex SC Patch Lead
• OS1/OS2 Fiber Optic Network Cable

Common Applications:

• Data centers for connecting switches, servers, and storage systems using single-mode fiber.
• Telecommunications linking for central offices, outside plant, and customer premise equipment.
• Structured cabling systems within buildings or campuses for high-speed data transmission.
• Enterprise networks for integrating high-speed switches, routers, and other network devices.
• Fiber-to-the-X (FTTx) installations, such as Fiber-to-the-Home (FTTH) or Fiber-to-the-Building (FTTB).

Standards:

• OS1/OS2: These signify the type of single-mode fiber, with OS1 typically for indoor use and OS2 for longer outdoor runs with less signal loss.

• IEC 60793-2-50: A standard concerning the classification of optical fibers.

• TIA/EIA-568: A set of telecommunications standards that provide guidelines for telecommunications cabling systems.

• ITU-T G.652: The ITU standard describing the characteristics and specifications of single-mode optical fibers.

Construction:

• Core: The central part of the fiber where the light is transmitted, made of glass.

• Cladding: The layer around the core that reflects the light back into the core, keeping the signal strong and clear.

• Jacket: The protective outer coating that defends the fiber from physical damage and environmental factors.

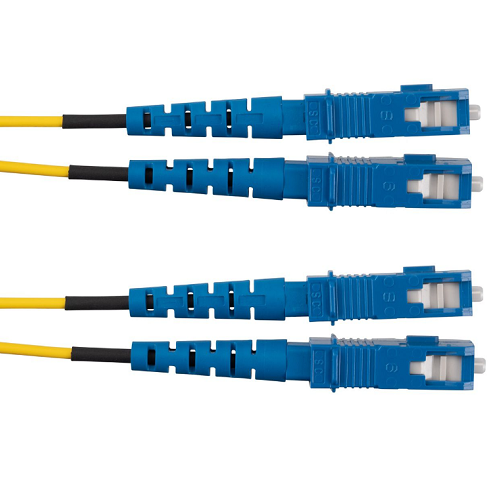

• Connectors: SC connectors are known for their push-pull design which ensures a snug and secure fit, making them easy to use in dense patch panels.

Features:

• Low Insertion Loss: Ensures that connecting the patch cord to another component does not significantly reduce signal strength.

• High Return Loss: Minimizes the reflection of the signal back toward the source, which is crucial for signal clarity.

• Duplex Configuration: Enables two fibers within a single patch cord to support bidirectional communication, which is standard in today's network environments.

• Compliance and Reliability: Meets industry standards for performance and safety, ensuring reliable and consistent operation.

• Precision Engineering: Includes accurately aligned ferrules and quality polished faces on the connectors for optimal signal transmission.
