4 Meter 2 Fiber Opti-Core Optic Patch Cord Pigtail OS1/OS2 SC Duplex F923RSNSNSNM004

Product Information

Specification

About:

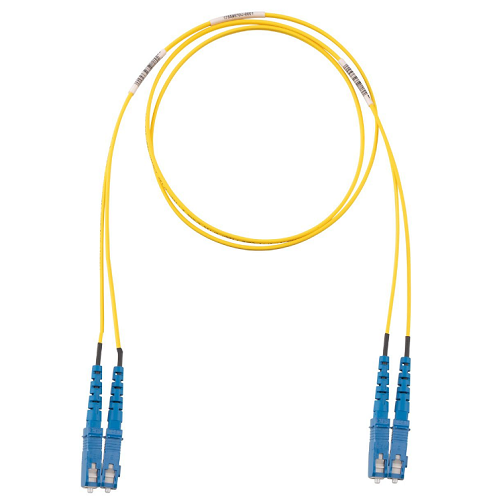

The "4 Meter 2 Fiber Opti-Core Optic Patch Cord Pigtail OS1/OS2 SC Duplex F923RSNSNSNM004" is a specialized fiber optic patch cord. It's 4 meters long, features a duplex SC connector, and is designed with two single-mode fibers (OS1/OS2 type), suitable for high-speed data communication and long-distance connectivity. This patch cord is typically used in networking environments like data centers or telecommunications rooms for connecting various network devices. The pigtail design implies one end has a connector and the other end is prepared for splicing.

Also Known As:

• "4-meter single-mode fiber optic patch cord with SC duplex connectors."

Common Applications:

• Data Centers: For connecting servers, switches, and other networking equipment within a data center.

• Telecommunications Rooms: Used in structured cabling systems to connect fiber optic communication lines.

• Long-Distance Networking: The single-mode fiber (OS1/OS2) is suitable for long-distance data transmission, making it ideal for connecting buildings or facilities over a campus or city-wide network.

• High-Speed Internet Connections: Supports high data rate transmissions, essential for broadband and high-speed internet services.

• Fiber Optic Splicing: The pigtail aspect of the cord is used for splicing onto longer fiber runs, commonly seen in fiber optic backbone installations.

Standards:

• ITU-T Recommendations: For single-mode fibers, standards like G.652 (for OS1) and G.657 (for OS2) are relevant. They specify characteristics of the fiber for various types of applications.

• IEC Standards: The International Electrotechnical Commission sets standards for fiber optics, including IEC 61754 for fiber optic connector interfaces, which would cover the SC connectors.

• TIA/EIA Standards: In the United States, the Telecommunications Industry Association (TIA) and Electronic Industries Alliance (EIA) standards such as TIA/EIA-568 are used for commercial building cabling for telecommunications products and services.

• ISO/IEC Standards: The International Organization for Standardization and the IEC jointly issue standards like ISO/IEC 11801, which covers general cabling in organizational infrastructure.

Construction:

• Single-Mode Fibers (OS1/OS2): For high-speed, long-distance data transmission.

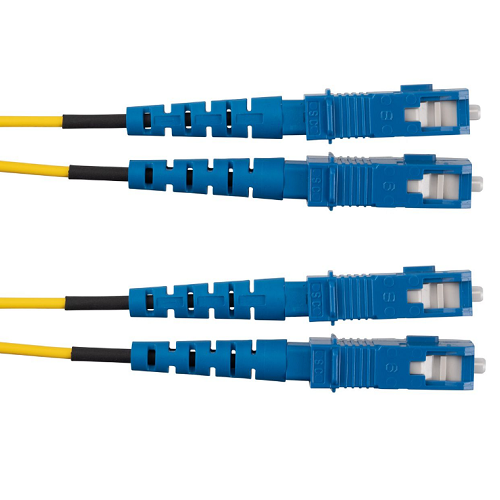

• SC Duplex Connectors: Easy-to-use push-pull connectors for bidirectional data flow.
• Pigtail Design: One end with connectors, the other prepared for splicing.
• Protective Jacket: Durable material, often color-coded for easy identification.
• Reinforcement: Strength members like aramid yarn for durability and protection.

Features:

• 4-Meter Length: Suitable for short to medium-range connections.
• Two Single-Mode Fibers: Optimized for high-speed, long-distance data transmission.
• SC Duplex Connectors: Secure and easy-to-use for reliable connectivity.
• OS1/OS2 Compatibility: Versatile for both indoor and outdoor applications.
• Pigtail Design: Allows for easy splicing to other cables or equipment.

Specification:
