2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable

2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable
Roll over image to Zoom

2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable

SKU:

Select a Gauge

2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable
Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$0.00 /FT
Sale price
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable

Allowable Ampacity
for 2 Cores 4 mm² RFOU 0.6/1KV Low Voltage Power Lighting Flame Retardant Halogen Free and MUD Offshore Cable: 100 Amps

Also Known As:

RFOU Cable, Low Voltage Cable, Power Lighting Cable, Offshore Cable, Flame Retardant Cable, Halogen Free Cable, MUD Cable, Marine Cable, Marine Shipyard Cable

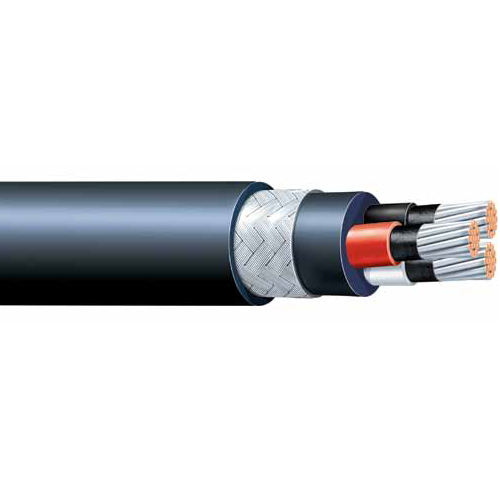

Construction:

• Conductor: Stranded tinned anneaIed copper wires as per IEC 60228, CIass 2

• Insulation: EPR as per IEC 60092-360

• Cabling: - InsuIated cores shaII be cabIed
                  - FIame retardant & non-hygroscopic fiIIers may be used
                  - SuitabIe tape(s) may be appIied on the cabIed core
                  - A FiIIer may be appIied to obtain a circuIar CabIe

• Inner Covering: FIame retardant haIogen free thermoset compound

• Armor: - Braid of tinned copper wire (O) / bronze wire (B) /gaIvanized steeI wire (C)
                - A suitabIe separator tape(s) may be appIied under/over the armor

• Sheath: - SHF2 as per IEC 60092-360
                 - Option: NEK 606 Category a,b,c,d Mud or oiI resistant
                 - Outer sheath coIor: BIack

Sheath Marking:

• e.g. : S.E.C. 0.6/1kV P1/P8 RFOU-M 2 X 70SQMM NEK 606 IEC 60332-3A MUD SEOUL Year Length

Core Identification:


No. of Cores


Without Earth Core


With Earth Core

1C Off-White or BIack
-
2C Off-White, BIack -
3C / 2C + E Off-White, BIack, Red Off-White, BIack, G/Y
4C / 3C + E Off-White, BIack, Red, BIue Off-White, BIack, Red, G/Y
5C / 4C + E BIack No. On White InsuIation Off-White, BIack, Red, BIue, G/Y
6C and over BIack No. On White InsuIation BIack No. On white InsuIation, G/Y


Application Standard:

• Design Guide:
NEK-606& IEC 60092-353
• Flame Retardant:
IEC 60332-1 & IEC 60332-3 Category A
• Halogen Content:
IEC 60754-1, 0.5% ↓
• Cold bend / Impact:
CSA C22.2 No. 2556 or IEC 60092-350 Annex.E Method 1 (-40/-35°C)
• Mud / Oil Resistant:
NEK 606 (Category a,b,c,d)
• Smoke light Transmittance: :
IEC 61034, 60% ↑
• Sunlight (UV) Resistant:
UL 1581

Specification:

• No. of Cores:
 2
• Conductor Nominal Area:
 4 mm²
• Conductor Min. No. of Wires: 7 EA
• Conductor Max. Overall Dia: 2.7 mm
• Thickness of Insulation:
1.0 mm
• Thickness of Inner Covering:
1.0 mm
• Nominal Dia. Inner Covering:
 11.0 mm
• Dia. of Wire for Armour:
 0.3 mm
• Thickness of Sheath:
 1.3 mm
• Overall Diameter Nominal:
 15.1 mm
• Overall Diameter Tolerance:
 0.9 ±mm
• Conductor Resistance (at 20°C) (Max.):
 4.70 Ω/km
• Insulation Resistance (at 20°C) (Min.):
 940 MΩ-km
• Test Voltage:
3500 V/5min.
• Cable Weight:
0.282 Lbs/Ft


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
