16 Port Opticom MPO Fiber Optic Adapter Panel FAP Horizontal FAPH1624RDMPO

Product Information

Specification

About:

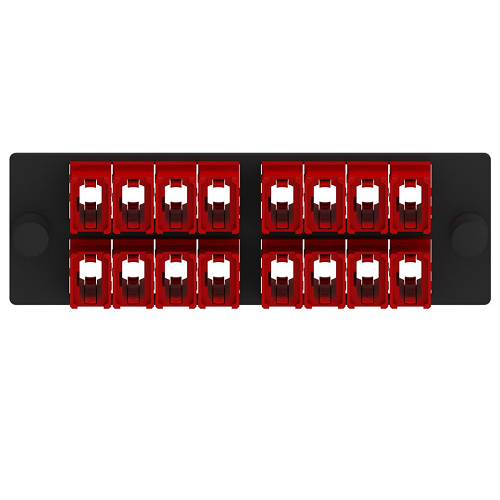

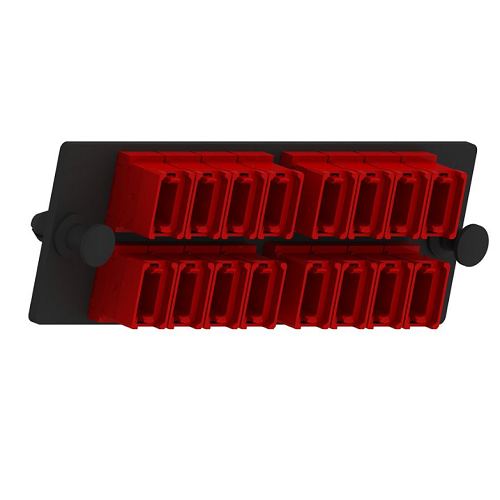

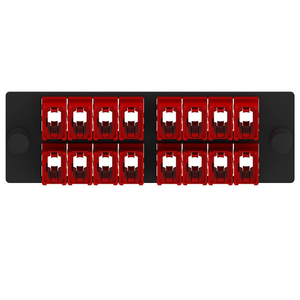

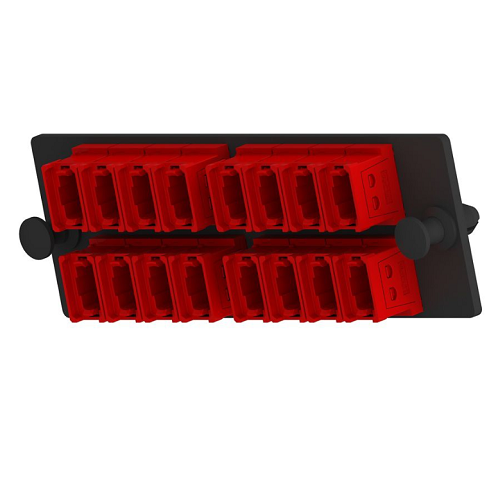

The Opticom MPO fiber adapter panel is loaded with 16 MPO fiber optic adapters. The fiber optic adapters are in the key-up/key-down position, type a polarity and are red in color. The MPOs are positioned in a vertical arrangement when looking head-on on a horizontal-orientated faceplate.

Also Known As:

• MPO Adapter Plate
• MPO Fiber Adapter Panel
• MPO FAP
• High-Density Fiber Optic Panel

Common Applications:

• High-density networking environments
• Telecommunications rooms
• Data centers
• Network cabling and connectivity solutions
• Enterprise LAN and SAN networks

Standards:

• Complies with TIA/EIA-568-C.3 for fiber optic cabling
• Meets IEC 61754-7 standards for MPO connectors
• Adheres to ANSI/TIA-942 data center standards

Construction:

• Typically houses 12, 24, or 48 fibers per panel
• Accommodates MPO/MTP connectors
• High-quality, lightweight, durable materials
• Modular design for scalability and easy upgrades

Features:

• Supports high-density fiber connectivity
• Tool-less installation and removal
• Excellent performance with low insertion loss
• Available in a variety of configurations and fiber types (e.g., single-mode, multimode)
• Color-coded adapters for easy identification

Specification:
