12 Port Opticom MPO Fiber Optic Adapter Panel FAP Horizontal FAPH1212CGMPO

Product Information

Specification

About:

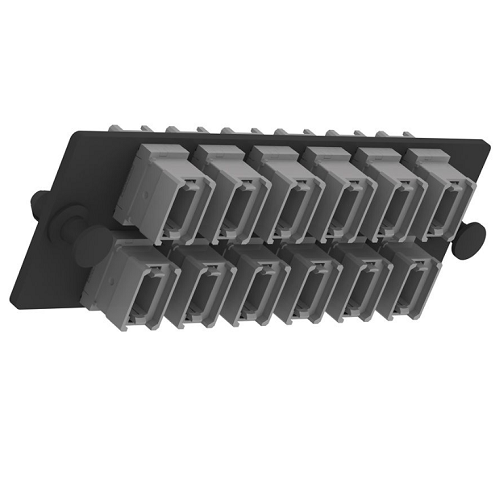

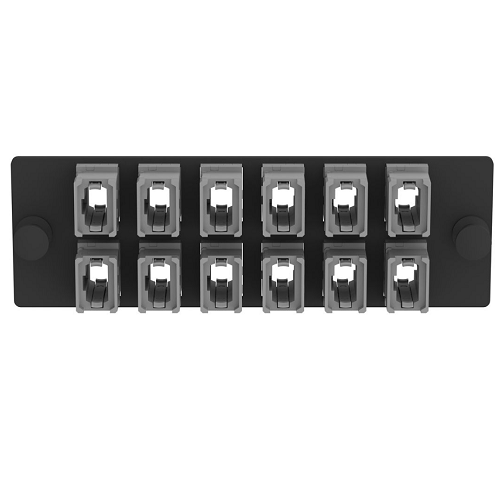

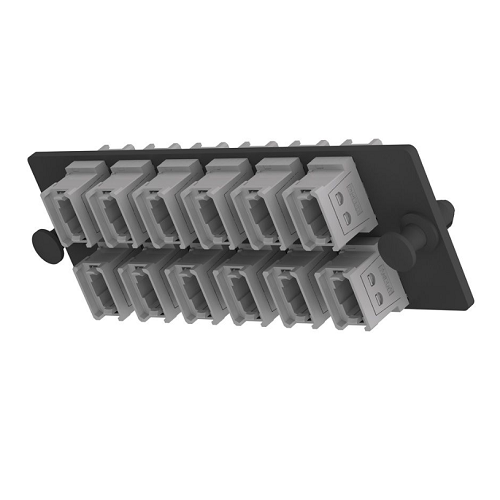

The Opticom MPO fiber adapter panel is loaded with 12 MPO fiber optic adapters. The fiber optic adapters are in the key-up/key-up position, type b polarity and are charcoal gray in color. The MPOs are positioned in a vertical arrangement when looking head-on on a horizontal-orientated faceplate.

Also Known As:

• MPO Adapter Plate
• MPO Fiber Adapter Panel
• MPO FAP
• High-Density Fiber Optic Panel

Common Applications:

• Data centers
• Telecommunications rooms
• High-density networking environments
• Enterprise LAN and SAN networks
• Network cabling and connectivity solutions

Standards:

• Complies with TIA/EIA-568-C.3 for fiber optic cabling
• Meets IEC 61754-7 standards for MPO connectors
• Adheres to ANSI/TIA-942 data center standards

Construction:

• High-quality, lightweight, durable materials
• Accommodates MPO/MTP connectors
• Modular design for scalability and easy upgrades
• Typically houses 12, 24, or 48 fibers per panel

Features:

• Excellent performance with low insertion loss
• Tool-less installation and removal
• Supports high-density fiber connectivity
• Color-coded adapters for easy identification
• Available in a variety of configurations and fiber types (e.g., single-mode, multimode)

Specification:
