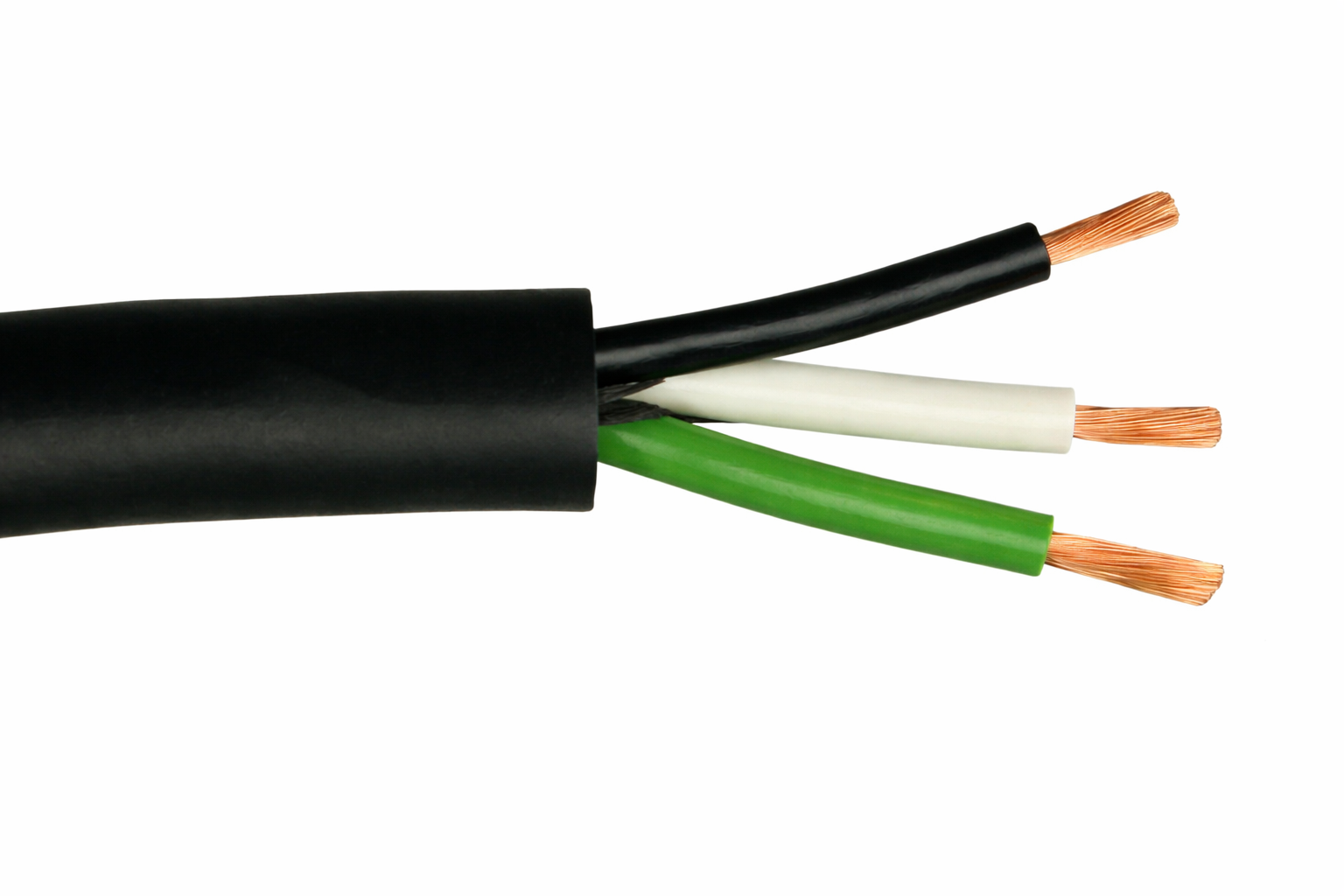

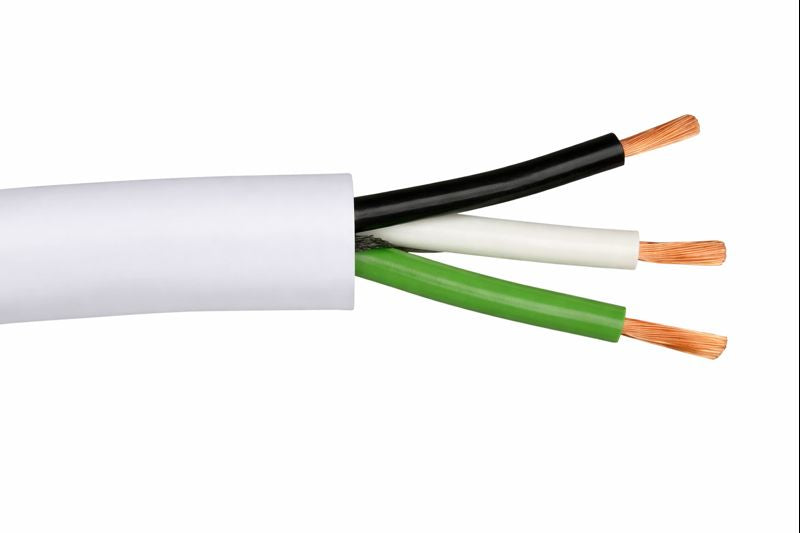

16/3 SJTOW Portable Cord 300V
Allowable Ampacity For 16/3 SJTOW Portable Cord: 13 Amps
Also Known As:
16/3 SJTOW Portable Power Cable, 16/3 SJTOW, 16/3 SJTOW Extension Cord, 16/3 SJTOW Power Cord, 16/3 SJTOW Portable Cord, 16/3 SJTOW Service Cord, 16/3 SJTOW Service Cable, 16/3 SJTOW Cord, 16/3 SJTOW Cable, 16/3 SJTOW Wire, 16/3 SJTOW Flexible Power Cable, 16/3 SJTW
SJTOW is a junior service entrance cable with a thermoplastic PVC rubber insulation that is resistant to oil. The electrical cable has excellent weather resistance. The voltage of the electrical cable is 300 volts. The cable is designed to be used in portable tools and appliances, as well as small motors, floor cleaning tools, lighting, and sound systems. SJTOW is suitable for both indoor and outdoor applications. It is a highly flexible electrical cable with a superior tensile strength that can serve you for decades. The temperature range is -20°C to 60°C.
- General-Purpose Indoor Wiring
- Outdoor Use: The "W" rating means it is suitable for outdoor applications where exposure to weather conditions is expected, such as in outdoor lighting, sound systems, and temporary power supply solutions.
- Industrial Environments: The oil resistance makes it suitable for use in industrial settings where exposure to oil or lubricants is common, such as in automotive manufacturing or machine shops.
- Portable Tools and Equipment: SJTOW cables are often used in the wiring of portable electrical tools and equipment that may be used in various environments, including those that are wet or oily.
- Temporary Power Supplies: Often used for temporary outdoor power supply setups, for example in fairs, exhibitions, or construction sites.
- Control Systems: Used in the wiring of control panels and systems where a flexible and durable cable is required.
- Pumps and Motors
SJTOW Portable Cord 300V Applications in Size 16/3:
- Small Appliances
- Portable Tools
- Light Outdoor Equipment
- Light Industrial Machinery
- Extension Cords
- Marine Use
- Control Circuits
- Indoor/Outdoor Lighting
- Temporary Power
- Audio/Visual Equipment
16/3 SJTOW Portable Cord 300V Standards:
- UL Listed and CSA certified 600V STOW and 300V SJTOW cable to NEC Article 400
- Federal and Military use under Federal Spec. JC-580B
- ROHS Compliant
16/3 SJTOW Portable Cord 300V Construction:
Stranded, bare, and fully soft annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions.
Premium PVC Rubber insulation resistant to oil, abrasion, and chemicals.
16/3 SJTOW Portable Cord 300V Specification:
- Gauge :16
- No. Conductors: 3
- Conductor Stranding: 26 x 30
- Nominal Insulation Thickness : 0.030 inches
- Nominal Overall Diameter: 0.330 inches
- New Weight lb/1000FT :65 lbs
- AMPS: 13
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
