14/2 SJTOW PORTABLE POWER CABLE CORD

14/2 SJTOW PORTABLE POWER CABLE CORD

14/2 SJTOW PORTABLE POWER CABLE CORD

SKU: NNC0505X

Availability: In stock

Min Length: 1 FT
Max Length: 1000000 FT
Price:
Shipping cost calculated at Checkout. Standard lead time is 1 to 6 business days.
Quantity must be 1 or more

Enter the required footage in the Quantity box

our commitment

global shipping
verified suppliers
A+ Rated
payments types accepted
See all »

Product Information

Specification

14/2 SJTOW Portable Cord 300V

Allowable Ampacity For 14/2 SJTOW Portable Cord: 18 Amps

Applications:

SJTOW is a junior service entrance cable with a thermoplastic PVC rubber insulation that is resistant to oil. The electrical cable has excellent weather resistance. The voltage of the electrical cable is 300 volts. The cable is designed to be used in portable tools and appliances, as well as small motors, floor cleaning tools, lighting, and sound systems. SJTOW is suitable for both indoor and outdoor applications. It is a highly flexible electrical cable with a superior tensile strength that can serve you for decades. The temperature range is -20°C to 60°C.

Also Known As:

14/2 SJTOW Portable Power Cable, 14/2  SJTOW, 14/2  SJTOW Extension Cord,14/2  SJTOW Power Cord, 14/2  SJTOW Portable Cord, 14/2  SJTOW Service Cord, 14/2  SJTOW Service Cable,14/2  SJTOW Cord,14/2  SJTOW Cable,14/2  SJTOW Wire, 14/2  SJTOW Flexible Power Cable

Standards:

  • UL Listed and CSA certified 600V STOW and 300V SJTOW cable to NEC Article 400
  • Federal and Military use under Federal Spec. JC-580B
  • ROHS Compliant

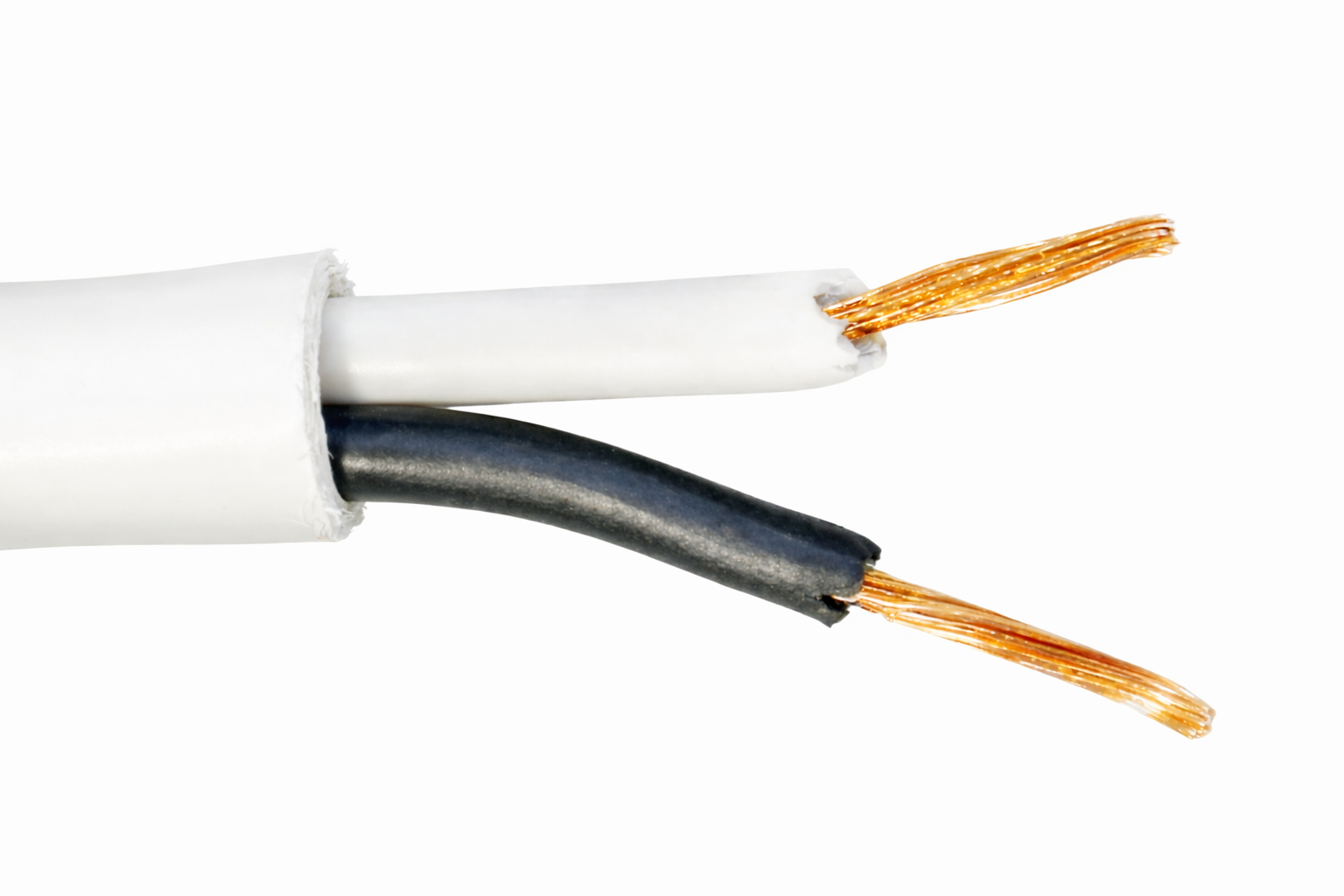

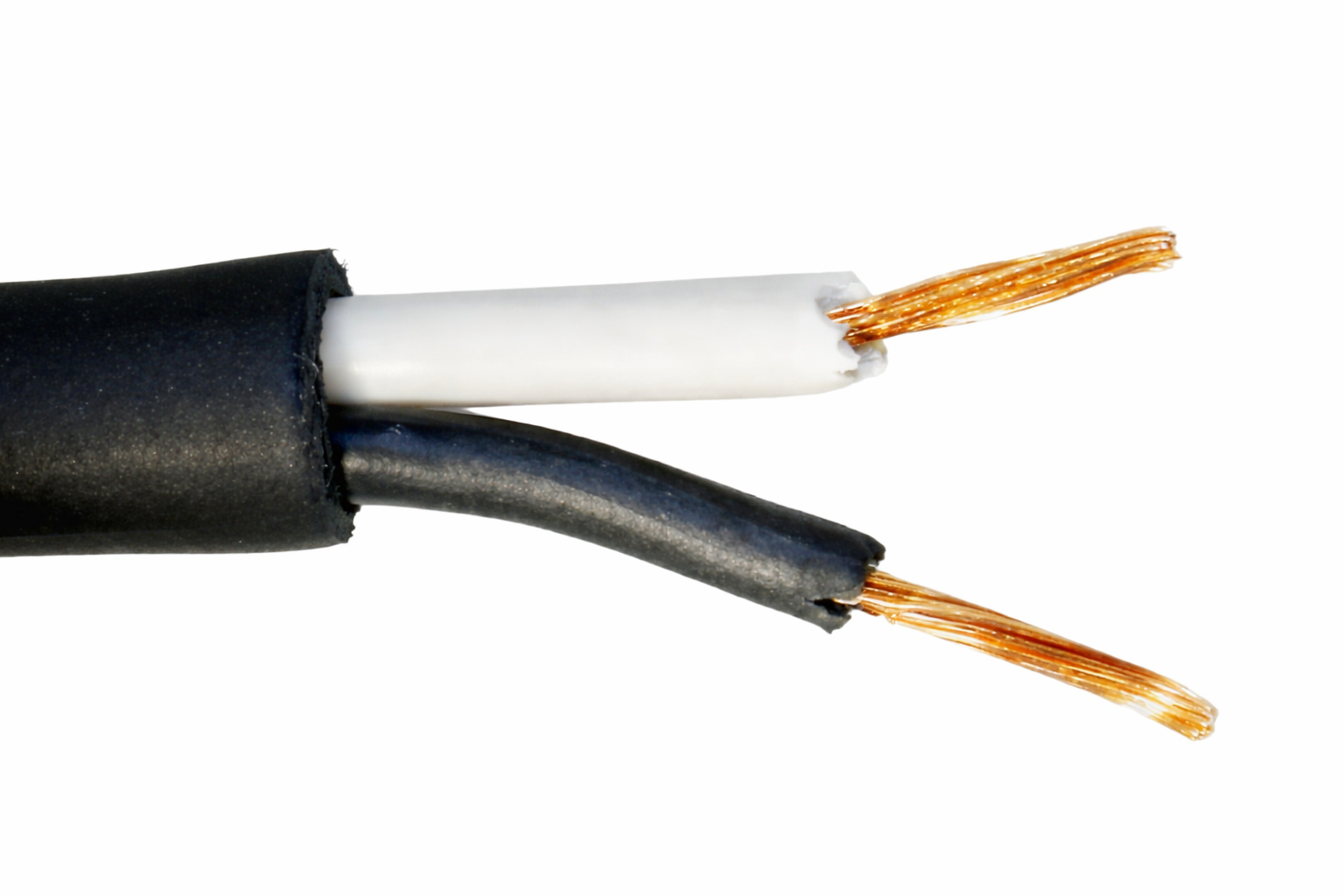

Construction:

Conductor:

Stranded, bare, and fully soft annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions.

Insulation:

Premium PVC Rubber insulation resistant to oil, abrasion, and chemicals.

Specification:

  • Gauge :14
  • No. Conductors: 2
  • Conductor Stranding: 41 x 30
  • Nominal Insulation Thickness : 0.030 inches
  • Nominal Overall Diameter: 0.300 inches
  • New Weight lb/1000FT :84 lbs
  • AMPS: 18


*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.

Download PDF Spec Sheet
