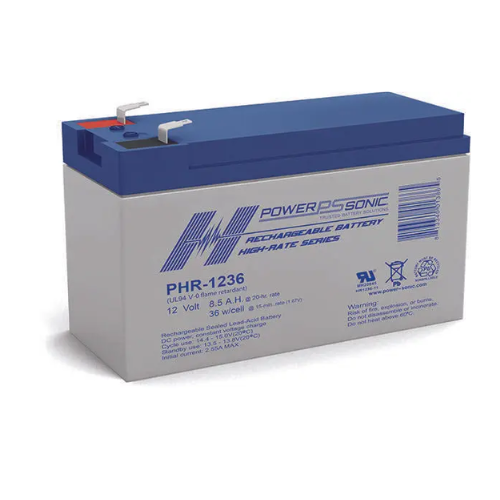

12V 9Ah PHR High Rate SLA Battery F2 Terminal PHR-1236 F2 FR (Pack of 5)

Product Information

Specification

About:

• The PHR-1236 F2 FR is part of the PHR high rate range of sealed lead-acid batteries (referred to as VRLA).
• It has been designed specifically designed for high-rate discharge applications.
• The 12V 36.00w/ cell high-rate battery has superb high-rate discharge characteristics that ensure reliable performance in UPS applications.

Also Known As:

Power Sonic Battery, High Rate Battery, High Rate SLA Battery, Lead Acid Battery, Sealed Lead Acid Battery, High Rate Discharge Battery, Power Sonic PHR-1236 F2 FR, PHR1236 F2 FR, PHR1236F2 FR, PHR 1236 F2 FR, PHR1236F2FR.

Specifications:

• Voltage: 12 V
• Capacity @ 20HR: 9 Ah
• Capacity @ 10HR: 8.50 Ah

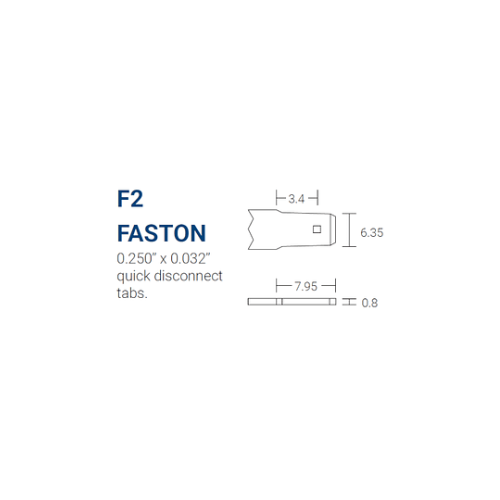

• Terminal Type: F2
• Case: UL94:V0 Flame Retardant ABS Plastic
• Applications: High Rate UPS, Data Centers
• Dimensions: 5.94" L x 2.56" W x 3.68" H
• Recommended Charger: PSC-121000ACX

Features:

• 12V 9Ah High Rate VRLA battery
• Specifically designed for UPS and critical power backup applications
• Valve-regulated, spill-proof construction allows safe operation in any orientation (excluding continuous inverted use)
• Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
• Lead calcium alloy grids and the use of high-purity lead account for superior shelf-life characteristics
• Rugged impact-resistant ABS case and cover, flame-retardant to UL94:V-0.
