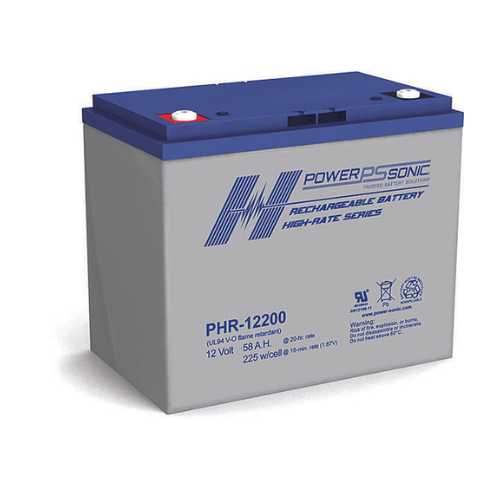

12V 58Ah PHR High Rate SLA Battery M6 Terminal PHR-12200 M6 FR

Product Information

Specification

About:

• The PHR-12200 M6 FR is part of the PHR high rate range of sealed lead-acid batteries (referred to as VRLA).
• It has been designed specifically designed for high-rate discharge applications.
• The 12V 225.00w/ cell high-rate battery has superb high-rate discharge characteristics that ensure reliable performance in UPS applications.

Also Known As:

Power Sonic Battery, High Rate Battery, High Rate SLA Battery, Lead Acid Battery, Sealed Lead Acid Battery, High Rate Discharge Battery, Power Sonic PHR-12200 M6 FR, PHR12200 M6 FR, PHR12200M6 FR, PHR 12200 M6 FR, PHR12200M6FR.

Specifications:

• Voltage: 12 V
• Capacity @ 20HR: 58 Ah
• Capacity @ 10HR: 55 Ah

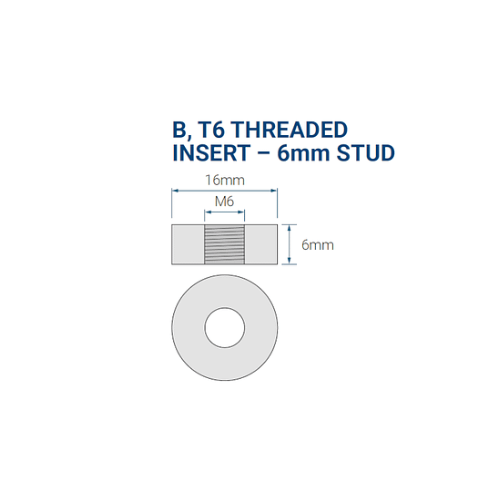

• Terminal Type: M6
• Case: UL94:V0 Flame Retardant ABS Plastic
• Applications: High Rate UPS, Data Centers
• Dimensions: 9.02" L x 5.43" W x 7.87" H

Features:

• 12V 58Ah High Rate VRLA battery
• Specifically designed for UPS and critical power backup applications
• Valve-regulated, spill-proof construction allows safe operation in any orientation (excluding continuous inverted use)
• Precision plate pasting for higher consistency with 100% load testing to ensure uniform capacity
• Lead calcium alloy grids and the use of high-purity lead account for superior shelf-life characteristics
• Rugged impact-resistant ABS case and cover, flame-retardant to UL94:V-0.
