Product Information

Specification

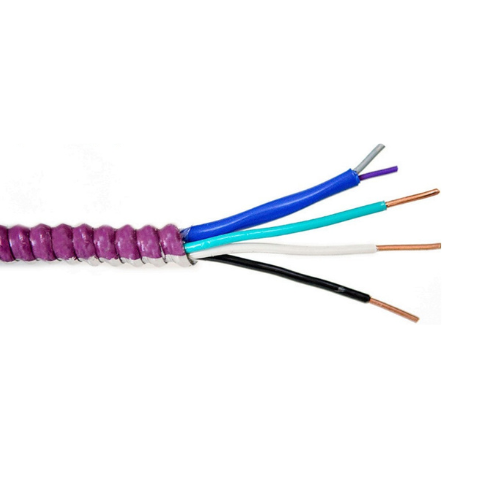

12/3C Power + 12 W/Ground + 16/2C Control Type MC-VC Solid Commercial Lighting MC Cable

Application:

MC-VC™ Commercial Lighting Cable is used for LED and Fluorescent dimming and SMART buildings, and is intended for use in non-shielded applications. MC-VC™ is suitable for use as branch circuits, feeders or lighting cable in both exposed and concealed environments or in cable trays in accordance with the applicable sections of the National Electrical Code.

Also Known As:

Mc 12 2 electrical wire, 12/2 metal clad cable, 12/2 aluminum armored cable, 12/2 mc cable, 12/2 mc wire, 12/2 mc cable wiring, 12/2 armored wire, 12/2 armoured electrical cable, 12/2 mc electrical wire, 12/2 fire alarm mc cable, Type MC-VC Cable, Commercial Lighting Cable, 16/2C Control Cable, 12/2C Power Cable.

Conductors:

• Solid soft drawn bare copper

Insulation:

•  Polyvinyl chloride (PVC) / nylon over coated type THHN/THWN insulation

Ground:

• Solid soft drawn bare copper with a green polyvinyl chloride (PVC) / nylon over coated type THHN/THWN insulation

Control Conductors:

Two 16AWG type TFN insulated conductors twisted together with an overall blue Polyvinylchloride jacket to isolate the control conductors from the power conductors.

Binding Tape:

The Control assembly, power conductors, and ground conductor are cabled together and securely wrapped with a mylar binding tape

Armor:

Aluminum interlocking armor with a purple stripe is applied over the cable assembly.

Standards:

• UL standards 66, 83, 1569, 1581
• UL Listed MC-PCS Cable
• NEC Articles 230-43, 300-22, 392, 396, 330, 518, 520, 530, 645 and 725
• Federal Specification A-A59544
• Class I Div. 2, Class II Div. 2, and Class III Div. 1 Div. 2 for hazardous locations

Specifications:

• Size: 12/3C Power, 16/2C Control
• Ground Conductor Size: 12 AWG
• Armor Outside Diameter: 0.583 inches
• Approx. Weight per 1000 ft: 168 lbs

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
