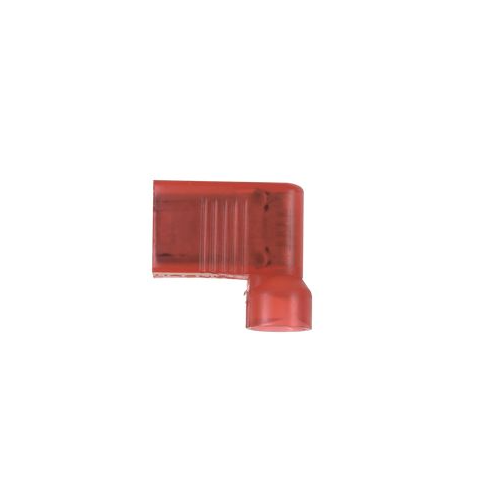

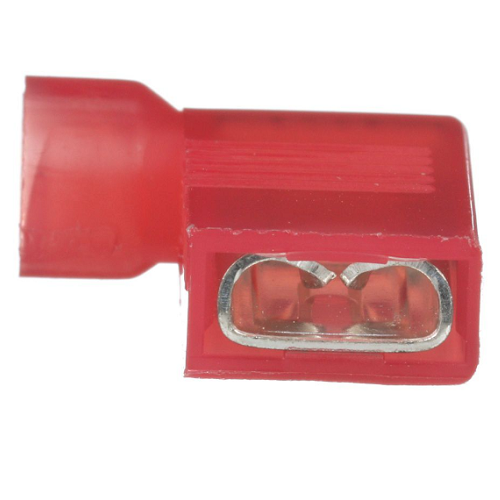

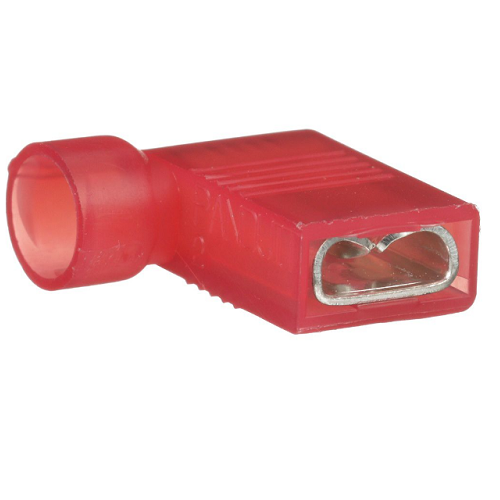

0.178 22-18 AWG Pan-Term Female Disconnect Right Angle Nylon Insulated DNFR18-250FIB-M (Pack of 1000)

Product Information

Specification

About:

This is a bulk pack of 1000 female disconnect terminals designed for the purpose of creating removable electrical connections. Made for 22-18 AWG (American Wire Gauge) wires, these terminals come with nylon insulation. The "0.178" likely denotes the width of the disconnect's tab, and the right-angle design offers space-efficient connections.

Also Known As:

• Female spade connector
• 90-degree insulated terminal
• Right-angle quick disconnects

Common Applications:

• Automotive: In car audio systems, lighting, or accessory installations.
• Consumer Electronics: In devices requiring frequent connection and disconnection.
• Industrial Machines: In control panels or where there is a need for removable connections.
• Household Appliances: For easily connectable or replaceable components such as motors or heating elements.

Standards Met:

UL 310, CSA 22.2 No.153

Construction:

• Connection Type: Crimp, which indicates that the wire is inserted and then tightly crimped to secure the connection.
• Insulation: Constructed from nylon, ensuring both electrical insulation and a degree of mechanical protection.
• Conductor Material: Typically crafted from high-conductivity metals like copper or brass, and they're often tin-plated to counteract corrosion.
• Terminal Design: Right angle, which is suitable for situations where space is a constraint or when direct connections might lead to wire bending.

Features:

• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Right angle design for use in limited space applications
• Longer barrel design for use with Panduit standard disconnect tool

Specification:
