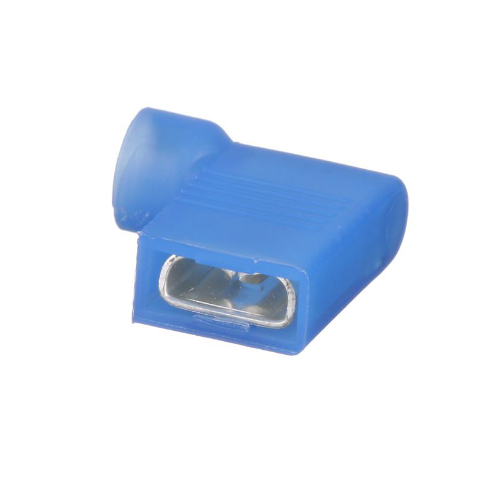

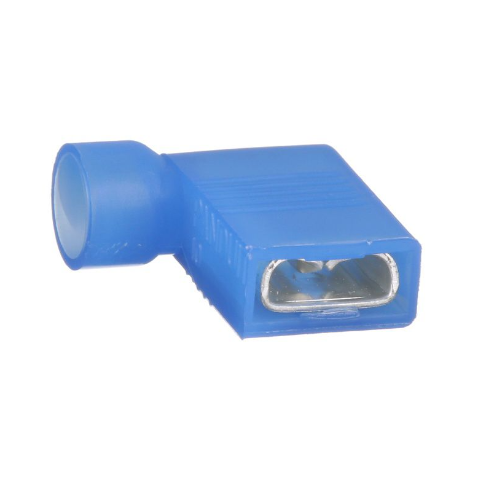

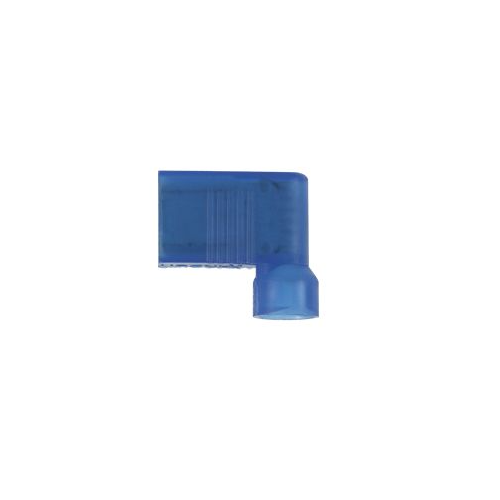

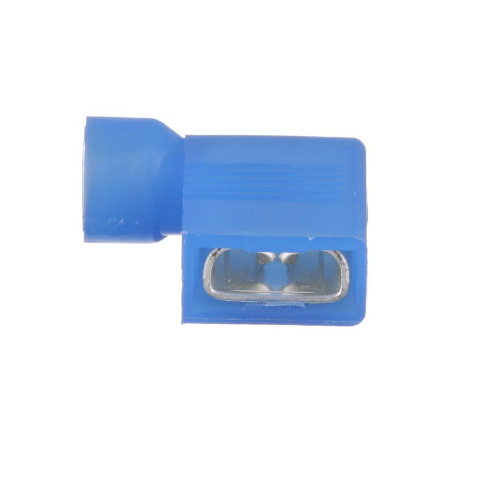

0.178 16-14 AWG Pan-Term Female Disconnect Right Angle Nylon Insulated DNFR14-250FIB-M (Pack of 1000)

Product Information

Specification

About:

This pack contains 1000 female disconnect terminals that are specifically designed for facilitating removable electrical connections. Suited for 16-14 AWG (American Wire Gauge) wires, these terminals come with nylon insulation. The "0.178" measurement likely signifies the width of the disconnect's tab. The right-angle structure is meant to provide connections that are space-efficient.

Also Known As:

• Right-angle quick disconnects
• Female spade connector
• 90-degree insulated terminal

Common Applications:

• Automotive: Useful for connecting car audio, lights, or other electronic accessories.
• Consumer Electronics: Devices that might need regular or occasional connection and disconnection.
• Industrial Machines: In situations where removable connections are required, like control panels.
• Household Appliances: Connect components that might need replacement or maintenance, such as motors, heaters, or switches.

Standards Met:

UL 310, CSA 22.2 No.153

Construction:

• Connection Type: Crimp, where the wire is placed inside and then compressed or crimped to form a secure connection.
• Insulation: Comprised of nylon, offering electrical insulation as well as some mechanical protection against wear and tear.
• Conductor Material: Typically constructed from metals with high conductivity, like copper or brass. Many times, they are tin-plated to help prevent corrosion.
• Terminal Design: Right angle, which is especially beneficial in areas with limited space or where a straight connection might lead to undue stress on the wire.

Features:

• Longer barrel design for use with Panduit standard disconnect tool
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Right angle design for use in limited space applications
• UL and CSA rated up to 600 V per UL 310
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
