Zoom Room System Kit YEA-ZVC640-C0-A00

Product Information

Specification

About:

In collaboration with Zoom, the ZVC640 Zoom Rooms Kits are fully integrated with Zoom Rooms and come with pre-installed Zoom Rooms software. Certified by Zoom, Yealink provides these kits to meet the needs of medium and large meeting spaces. The solution offers exceptional audio and video quality, combining the Yealink CP960 Conference Phone with the Yealink UVC84 optical PTZ camera. Together, they deliver a seamless and native Zoom Rooms experience.

Also Known as:

Zoom Meeting Kit, Kits for Meeting, Kits for Meeting room, Room Meeting Kit, Room Meeting System, Conference Kit.

Specifications:

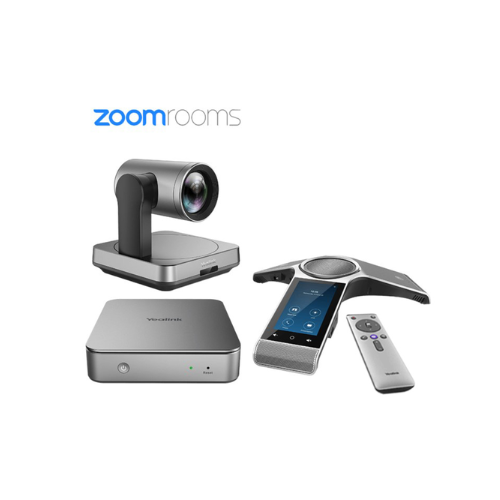

Package Contents:

• 1x UVC84 12X optical USB PTZ 4K camera with
    ‣ VCR20 remote
    ‣ wallmount bracket
    ‣ power adapter and cables
• MCore mini-PC, power adapter and cables
• 1x CP960-Zoom Edition Conference Phone, PoE adapter and cables, supports ultrasonic and Zoom direct share.
• The mini-PC computer preloads Windows 10 IoT Enterprise OS and license, Zoom Rooms App, as well as Yealink Plug-in.

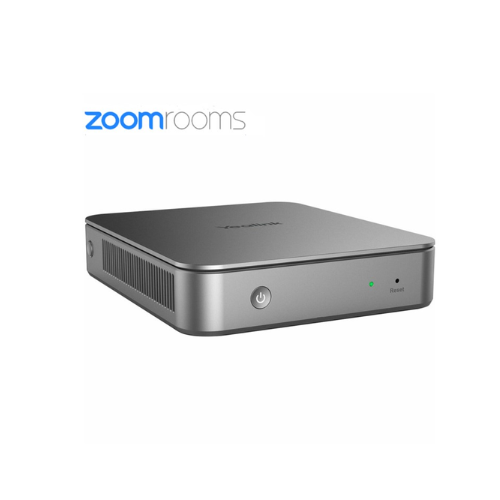

MCore Mini-PC Package:

• 8th-gen Intel QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• • Bluetooth and Wi-Fi
• 4 x USB3.0 Type-A
• 1 x VCH port for conecting to MTouch II
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot

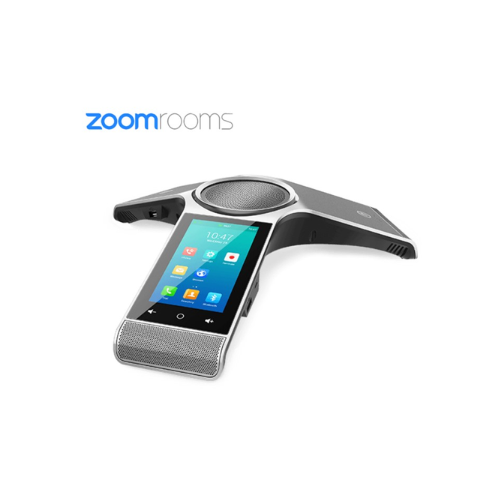

CP960 Conference Phone:

• 5” 720×1280 capacitive touch screen
• 1 x RJ45 10/100M Ethernet port
• Power over Ethernet (IEEE 802.3af ), class 4
• 2 x Wired MIC port
• 2 x USB 2.0 port
• 1 x 3.5mm audio-out port
• 1 x USB 2.0 Micro-B device port
• 1 x Security slot

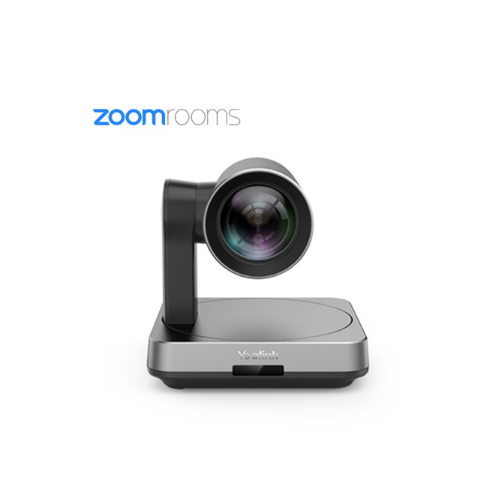

UVC84 USB PTZ Camera:

• 4K camera
• 12x optical zoom
• Field of view (diagonal): 80°
• Auto Framing
• Camera presets
• Pan range: 200°
• Tilt range: 130°
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
