Wire Clip Natural PA 6.6 Push Barb LWC75-H25-C (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Route and Secure Cords and Cables |
| Product Type | Latching Wire Clip |
| Body Material | Nylon 6.6 |
| Color | Natural |
| Environment | Indoor |
| Maximum Bundle Diameter (In.) | 0.75 |
| Maximum Bundle Diameter (mm) | 19 |
| Maximum Compatible Panel Thickness (In.) | 0.105 |
| Maximum Compatible Panel Thickness (mm) | 2.7 |
| Mount Method | Push Barb |
| Mounting Hole Diameter (In.) | 0.25 |
| Mounting Hole Diameter (mm) | 6 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35.6 |
| Overall Length (In.) | 1.45 |
| Overall Length (mm) | 36.8 |
| Overall Width (In.) | 0.87 |
| Overall Width (mm) | 22.1 |
| Standards Met | RoHS Compliant |
| Part No | LWC75-H25-C |
Wire Clip Natural PA 6.6 Push Barb LWC75-H25-C (Pack of 100)
DESCRIPTION :

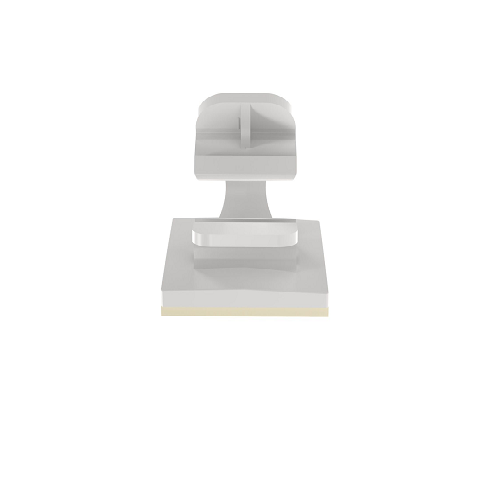

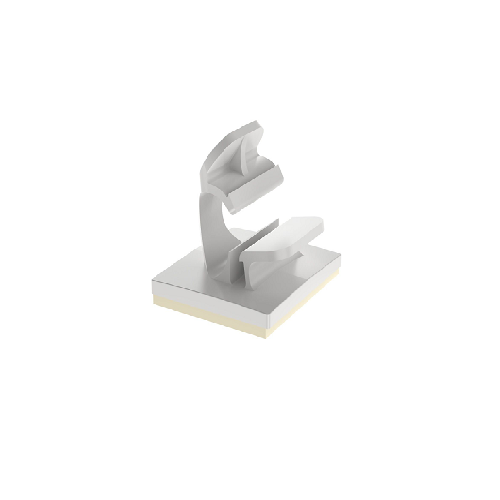

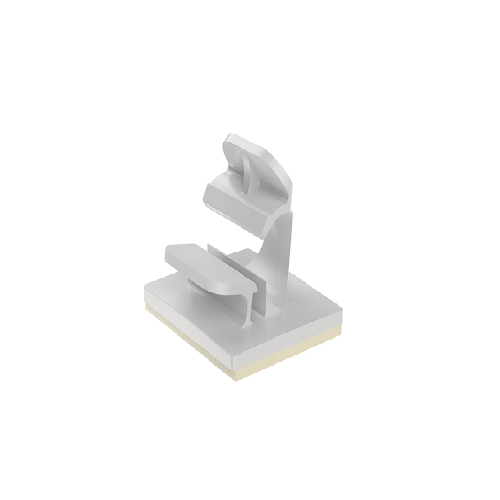

Panduit LWC75-H25-C Latching Wire Clips with push barb style mounts, route and secure cords and cables. The convenient releasable latch allows you to reconfigure and reuse multiple times. The rubber-based adhesive provides a strong and reliable bond and the large mounting base allows for high bond strength. For use in indoor environments and with bundles of no more than 0.75” (19.1mm) in diameter. Made of Nylon 6.6, are natural in color.
Download PDF Spec Sheet
