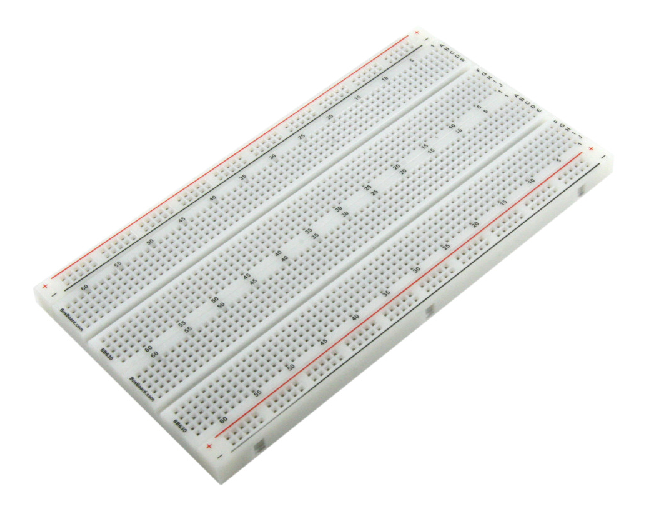

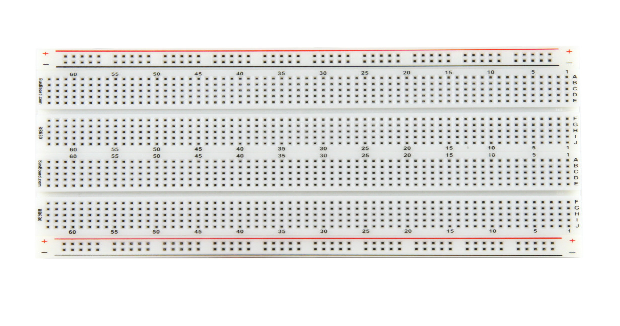

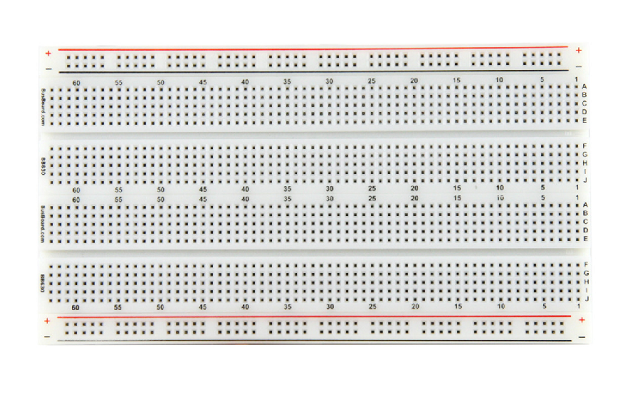

White 1460 Tie-point Modular Solderless Plug-in Breadboard With Power Rails BB1460

White 1460 Tie-point Modular Solderless Plug-in Breadboard With Power Rails BB1460

Description:

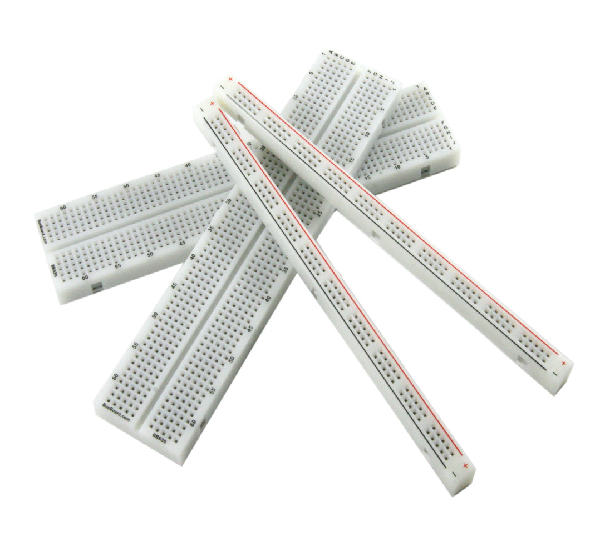

BB1460 is a modular solderless (plug-in) breadboard with 1460 connection tie-points (i.e. 1460 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB1460 has two 630 tie-point IC-circuit areas plus four 100 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant.Feature Note: Configurable.The four sections of the BB1460 can be detached and re-arranged to make different configurations. The BB100R power rails and the BB630 circuit areas each have their own separate adhesive backing. i.e. The power rails are not connected to the circuit area by the adhesive tape backing (as is the case for the BB830 and BB1660). Mix and match the parts as needed.Feature Note: DIP Integrated Circuits.DIP integrated circuits can be inserted along the centerline of the BB1460. Extra holes are available if needed on an I.C. pin by jumping across the groove (shown by the green wire in the photo below). This is particularly useful for DIP40 wide I.C.s.Square post connectors can be inserted and removed reliably. The beryllium-copper contact alloy is specially designed for maximum springiness. It allows both thin 26 AWG wire and large square post headers to be used. The contacts are machine tested for 50,000 insertions to confirm manufacturing quality (human insertions may vary).The power rails are now the standard red and black for positive and negative.

Features:

• 1460 tie points total: 1260 tie-point IC-circuit area plus two 100 tie-point distribution strips providing power rails.

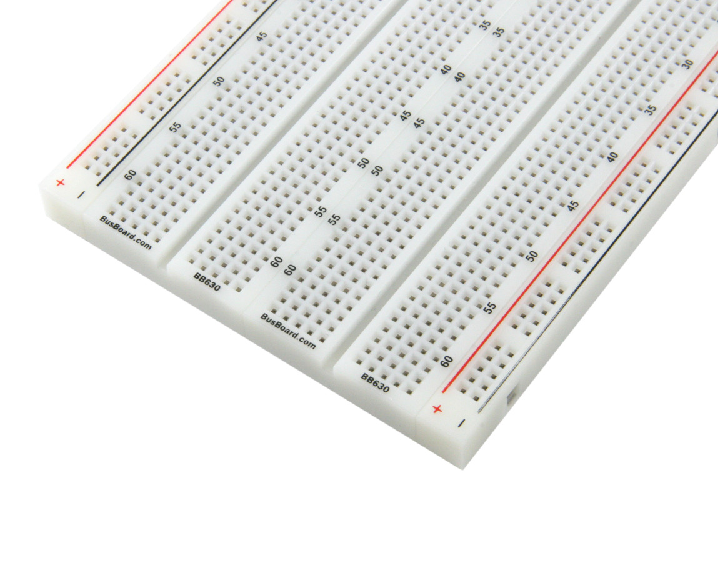

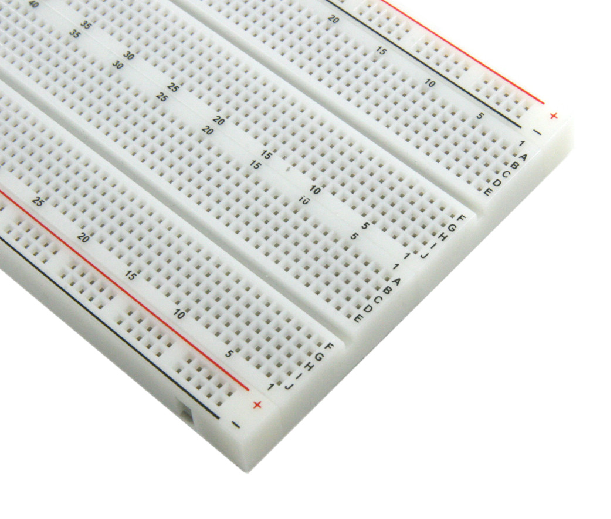

• ABS plastic body with black printed legend. Color legend on distribution strips.
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
• Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

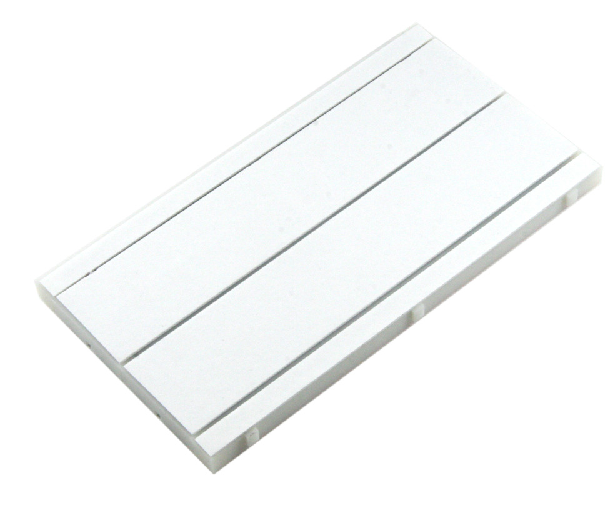

• Peelable adhesive tape backing provided for attaching to a surface.
• Size: 6.5 x 3.5 x 0.3in (165.1 x 89.4 x 8.5mm)
