Product Information
Specification
About:

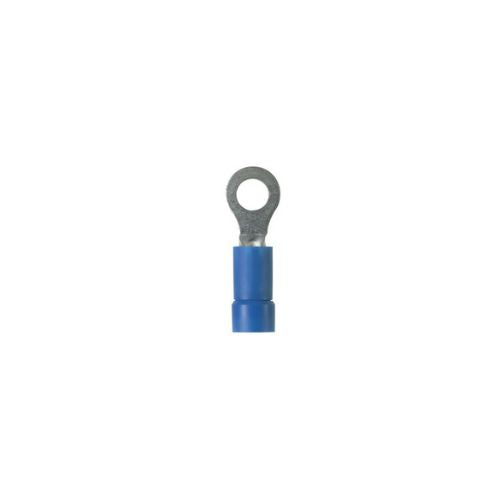

• The Vinyl Narrow Ring Terminal Loose Piece is a high-quality electrical connector designed for secure wire termination in compact spaces. Featuring a vinyl insulation that offers excellent protection against moisture and corrosion, it ensures long-lasting, reliable connections.
• The narrow ring design allows for easy attachment to smaller studs or terminals, making it ideal for use in applications where space is limited.
• This loose piece is perfect for individual use or as part of a larger assembly, providing flexibility in a variety of electrical wiring systems.
Also Known As:
Vinyl Ring Terminal, Narrow Ring Terminal, Loose Ring Terminal, Vinyl Insulated Ring Terminal, Electrical Ring Terminal, Vinyl Insulated Wire Connector, Narrow Insulated Ring Terminal, Ring Connector (Loose Piece).
Specification:
| Product Type | Ring Terminal |
| Color | Blue |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Barrel Type | Funnel Entry |
| Length | 0.84 In |
| Width | 0.25 In |
| Thickness | 0.03 In |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Part No. | PV14-6RN-C |
Features:
• Insulation support prevents wire damage in bending applications.
• Ring tongue design ensures a secure connection in high-vibration applications.
• Brazed seam protects the terminal barrel from splitting during the crimping process.
• Internal barrel serrations provide excellent wire contact and maximum tensile strength.
