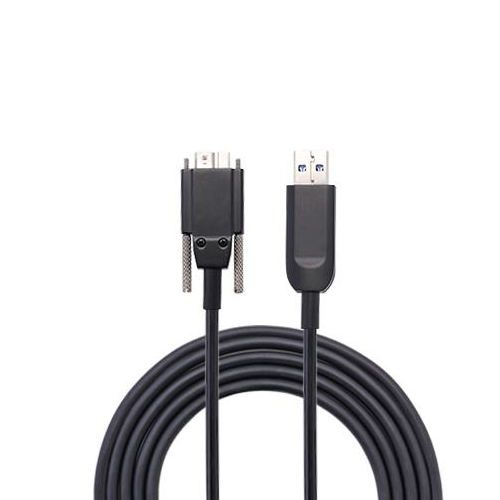

USB 3.2 Type A to Micro B 5Gbps AOC Cable
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Features:
● Excellent EMI performance.
● Without the external power supply, it can work through plug and play.
● Support USB 3.1 signal transmission, support theoretical maximum rate of 10Gbps.
● Standard TYPE-A & MicroB interface, compatible with the USB specification.
Performance:
|
Parameters
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Remarks
|
|
Transmission Rate
|
5
|
Gbps
|
|||
|
Operating
temperature
|
-20
|
25
|
70
|
℃
|
|
|
Operating Voltage
|
4.8
|
5
|
5.3
|
V
|
|
|
Operating current
|
300
|
440
|
mA
|
||
|
Wave length
|
850
|
nm
|
|||
|
Bit Error Rate
|
1.00E-12
|
||||
|
Hot Plugging and
Unplugging
|
Yes
|
||||
Storage Conditions:
1. Ambient temperature: 25℃±5℃
2. Other: Dust-free environment
3. Ambient humidity: 30～75%RH
Cautions:
1. Prevent the items from the water and dust.
2. Don’t remove or replace components privately during the product working.
3. Prevent the optical fibers and copper cores from damaging. Don’t bend or stretch
the cable over its max performance limitation.
