Ultra fiber Single-mode 12 F Gel-Free All-Dielectric Cables with Binderless Fast Access Technology 012ZU4-T3F22D20

Product Information

Specification

About :

Corning ALTOS cable with Binderless FastAccess technology is an all-dielectric gel-free cable designed for outdoor and limited indoor use for lashed aerial and duct installations. The innovative FastAccess technology feature combined with the gel-free binderless loose tube design simplifies removal of the cable jacket and accessing the buffer tubes. The loose tube design uses Corning SMF-28 Ultra fiber to provide reliable transmission parameters for a variety of voice, data, video and imaging applications. The cable is fully waterblocked using craftfriendly, water-swellable materials, which means no cleanup is required. The flexible buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy midspan access. The all-dielectric gelfree cable construction requires no bonding or grounding, and these cables have a medium-density polyethylene jacket that is rugged, durable and easy to handle. Corning’s patented Binderless FastAccess Technology refers to the combination of a Corning FastAccess Technology jacket with an innovative technology used to bind cable construction through the manufacturing process, eliminating the use of binder yarns and waterblocking tapes.

Specifications :

Product Number : 012ZU4-T3F22D20
Environment : Outdoor
Cable Type : Loose Tube
Product Type : Dielectric
Fiber Category : Single-mode (OS2)
Application : Aerial,  Duct
Fiber Count : 12
RoHS : Free of hazardous substances according to RoHS 2011/65/EU

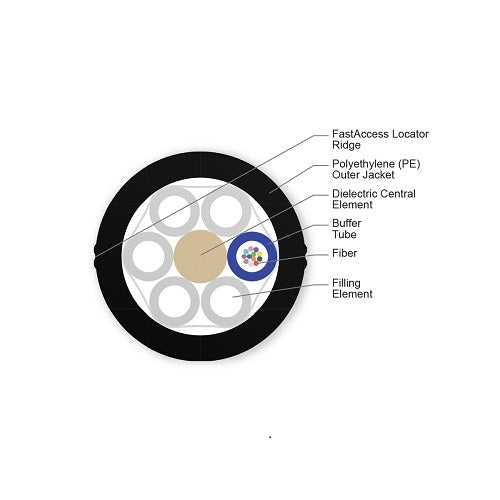

Central Element : Dielectric
Fiber Count : 12
Outer Jacket Color : Black
Outer Jacket Material : Polyethylene (PE)
Buffer Tube Color : Blue
Buffer Tube Diameter : 2.5 mm (0.1 in)
Number of Active Tubes : 1
Number of Filling Elements : 5
Number of Tube Positions : 6
Tape : Water-swellable
Fiber Coloring : Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube : 12
SAP Powder : Water-swellable
Color Code Standards : Telcordia
Fiber Code : Z
Fiber Name : SMF-28 Ultra fiber
Fiber Type : Single-mode
Performance Option Code : 22
Maximum Attenuation : 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
Typical Attenuation : 0.32 / 0.32 / 0.18
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D/G.657.A1

Features :

• Corning's Binderless FastAccess Technology refers to the combination of a Corning FastAccess Technology jacket with an innovative technology used to bind cable construction through the manufacturing process, eliminating the use of binder yarns and waterblocking tapes and resulting in a 25 percent improvement in cable access time. These technologies also reduce the overall risk of inadvertent fiber damage by reducing the need for sharp cable access tools.

• Elimination of overlapping yarn binders around stranded tubes to reduce end access time

• Simple access and no clean up

• Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)

• Ready for any application
