Type P Bronze Armored Single Conductor Power Cable 600/1000V

Type P Bronze Armored Single Conductor Power Cable 600/1000V

Application:

• DRILMAR 125-XE cables are specifically designed for the installation and use in marine environments, for use on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist.
• These cables are used for the distribution of power in circuits rated for 600/1000 volts.
• Typical applications include: D/C motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Also Known As:

Type P Cable, Bronze Armored Cable 600V, 1000V Single Conductor Cable, Marine Type P Cable, Bronze Armored Cable.

Standards:

• IEEE 1580
• Recommended Practice for Marine Cable for Use on Shipboard and Fixed and Floating Platforms.
• IEEE 45
• Recommended Practice for Electrical Installations on Shipboard Cable.
• UL 1309
• Marine Shipboard Cable.
• CSA C22.2 No. 245
• Marine Shipboard Cable.

Features:

• Engineered for easiest installation. Extra flexible stranding meets IEEE, UL, and CSA requirements. Maximum conductor operating temperature: 100 °C as Type P per IEEE, and 110°C as Type X110 per UL and CSA. Meets ampacity ratings per ABS, DNV, LRS, and TCMS.
DRILMAR XLPO Insulation:
• Superior oil and chemical resistance.
• Sunlight resistant.
• Rated at 125 ºC.
• Passes Cold Bend at -55 ºC.
Heavy Duty CP Jacket:
• Arctic Type XE design.
• Abrasion and sunlight resistant.
• Rated at 90 ºC. Completed cable offers superior flame resistance meeting:
• 70,000 Btu Flame Tests IEEE 1202/FT4, IEEE 383, UL 1685, ICEA T-30-820, and IEC 332 Category A.
• 210,000 Btu Flame Test ICEA T-29-520.
• Arctic Type design meets Cold Bend and Impact Tests at -40 ºC, exceeding the Transport Canada Marine Safety requirements.
• Cables inner jacket is optional for single conductors, 18 AWG and larger, rated 2 kV or less and insulated when are intended for applications within equipment or an enclosure.

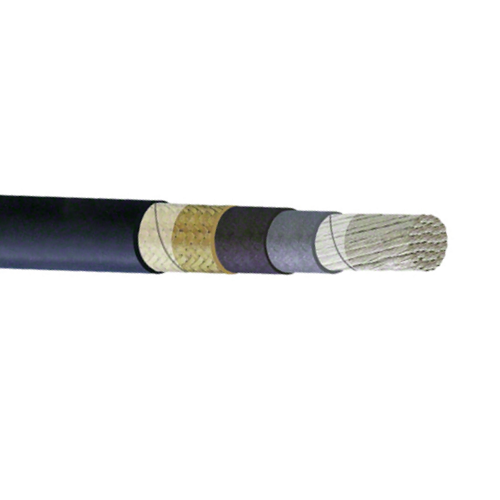

Construction:

• Conductor: Soft annealed flexible Tin Coated Copper per IEEE, UL, and CSA.
• Separator Tape: Polyester tape as required.
• Insulation: Flame retardant and sunlight resistant Crosslinked Polyolefin (XLPO) per IEEE. Also meets and exceeds the requirements of UL and CSA for Type X110. DRILMAR 125-XE is a 125 °C XLPO.
• Inner Jacket (optional): Flame retardant and sunlight resistant Arctic Type
Chlorinated Polyethylene (CPE) per IEEE, UL and CSA
• Armor (optional): Standard - Bronze. Optional - Aluminum or Tinned Copper Braid per IEEE, UL and CSA.
• Overall Sheath (optional): Flame retardant and sunlight resistant Arctic Type Chlorinated Polyethylene (CPE) per IEEE, UL, and CSA
