Type P Bronze Armored Single Conductor Drilling Rig and Marine Cable 2kV

Application:

• DRILMAR 125-XE cables are specifically designed for the installation and use in marine environments, for use on offshore drilling rigs, aboard marine vessels, and on fixed and floating offshore facilities where harsh marine environments exist. These cables are used for the distribution of power in circuits rated for 2000 volts.
• Typical applications include: D/C motor cables, generators, transformers, top drives, and other applications that may require a highly flexible rugged power cable.

Also Known As:

Type P Cable, Bronze Armored Cable 2kV, Single Conductor Cable, Marine Type P Cable, Power Cable

Standards:

• IEEE 1580-2001
• Recommended Practice for Marine Cable for Use on Shipboard and Fixed and Floating Platforms.
• IEEE 45-2002
• Recommended Practice for Electrical Installations on Shipboard Cable.
• UL 1309-1995
• Marine Shipboard Cable.
• CSA C22.2 No. 245
• Marine Shipboard Cable.

Features:

• Engineered for easiest installation. Extra flexible stranding meets IEEE, UL, and CSA requirements.
• Maximum conductor operating temperature: 100 °C as Type P per IEEE, and 110°C as Type X110 per UL and CSA. Meets ampacity ratings per ABS, DNV, LRS, and TCMS.
DRILMAR XLPO Insulation:
• Superior oil and chemical resistance.
• Sunlight resistant.
• Rated at 125 ºC.
• Passes Cold Bend at -55 ºC. Heavy Duty CP Jacket:
• Arctic Type XE design.
• Abrasion and sunlight resistant.
• Rated at 90 ºC.
Completed cable offers superior flame resistance meeting:
• 70,000 Btu Flame Tests IEEE 1202/FT4, IEEE 383, UL 1685, ICEA T-30-820, and IEC 332 Category A.
• 210,000 Btu Flame Test ICEA T-29-520.
• Arctic Type design meets Cold Bend and Impact Tests at -40 ºC, exceeding the Transport Canada Marine Safety requirements.
• Cables meet applicable requirements of IEC 92-350

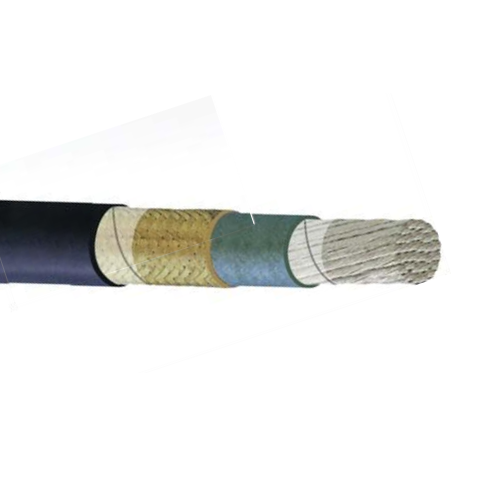

Construction:

• Conductor: Soft annealed flexible Tin Coated Copper per IEEE, UL, and CSA.
• Separator Tape: Polyester tape as required.
• Integral HD Insulation/ Jacket: Flame retardant and sunlight resistant Crosslinked Polyolefin (XLPO) per IEEE. Also meets and exceeds the requirements of UL and CSA for Type X110. DRILMAR 125-XE is a 125 °C XLPO
• Inner Jacket (optional): Flame retardant and sunlight resistant Arctic Type
Chlorinated Polyethylene (CPE) per IEEE, UL and CSA
• Armor (optional):  Standard - Bronze.
• Overall Sheath (optional): Flame retardant and sunlight resistant Arctic Type Chlorinated Polyethylene (CPE) per IEEE, UL, and CSA.
