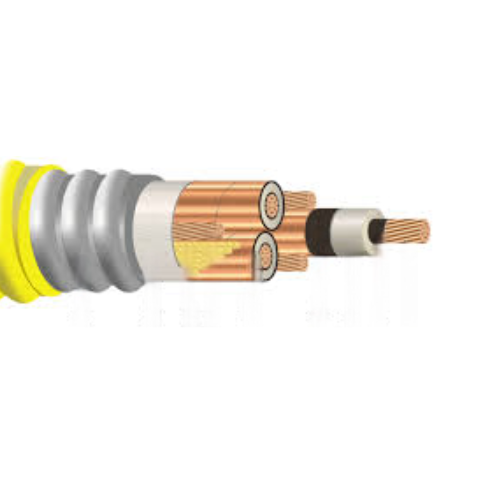

Type MV-105 Three Conductor Copper 5/8kV NLEPR Insulation 133/100% IL ARMOR-X Yellow PVC Jacket

Type MV-105 Three Conductor Copper 5/8kV NLEPR Insulation 133/100% IL ARMOR-X Yellow PVC Jacket

Application:

The 5KV ARMOR-X MC HL are armored cables for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, 250°C for short circuit conditions, and -50°C for cold bend. For uses in Class I, II, and III, Division 1 and 2 hazardous locations per NEC Article 501, 502, and 503. Suitable for VFD application. Rated for 1000 lbs./FT maximum sidewall pressure Type MV-105 Three Conductor Copper, 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, Continuous Corrugated Welded Aluminum Armor - ARMOR-X, Polyvinyl Chloride (PVC) Jacket. Suitable for VFD Applications. Type MC HL. Silicone Free

Also known as:

MV-105 Three-Conductor Copper Cable 5/8 kV Three Conductor Cable with NLEPR Insulation Medium Voltage Three-Conductor Copper Cable with Armor-X Protection 133/100% Insulation, Three-Conductor Copper Cable with Yellow PVC Jacket 5/8 kV NLEPR Insulated Copper Cable with Armor-X, Yellow PVC Jacket Medium Voltage Copper Cable with IL Armor-X and Yellow PVC Jacket

Construction:

Conductor:
Class B compressed stranded bare copper per ASTM B3 and B8 (Tinned Copper per ASTM B33 optional)

Conductor Shield:
Semi-conducting cross-linked copolymer

Insulation:
115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level

Insulation Shield:
Strippable semi-conducting cross-linked copolymer

Copper Tape Shield:
Helically wrapped 5 mil copper tape with 25% overlap

Grounding Conductor:
3 Class B compressed stranded bare copper ground per ASTM B3 and B8 (Tinned Copper per ASTM B33 optional)

Filler:
Wax paper filler

Binder:
 Polypropylene tape

Armor:
ARMOR-X Continuous Corrugated Welded Aluminum Armor

Overall Jacket:
Polyvinyl Chloride (PVC)

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
• UL 1072 Medium-Voltage Power Cables
• UL 1569 Metal-Clad Cables
• UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
