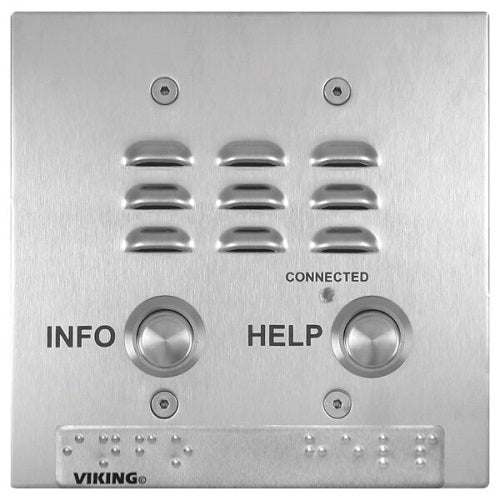

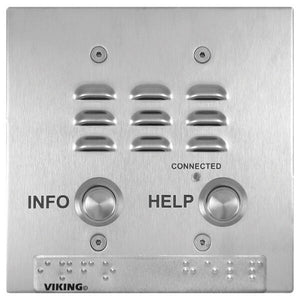

Viking E-1600-22-IP – Two Button Double Gang Box Mount VoIP Emergency Phone
About :
The E-1600-22-IP ADA and CE Compliant VoIP Emergency Phone offers handsfree emergency communication for SIP VoIP systems with PoE. It meets ADA standards for elevator and emergency use and can be programmed via touch-tone phone, PC, or remotely using a static IP. The Help button dials up to 5 emergency numbers, while the Info button dials up to 5 non-emergency numbers. The phone can deliver a location announcement or DTMF code, and features a "Call Connected" LED. All settings are stored in non-volatile memory, and the unit is powered by PoE.
Also Known As :
Emergency Phone, Emergency Call Box, Hotline Phone, Help Point Phone, Hotline Phone
Specification :
Door Phone Type |
Emergency, Indoor, Push Button |
Power | PoE class 1 (<4 Watts) |
Humidity | 5% to 95% non-condensing |
Audio Codecs | G711u, G711a, G722 |
Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
Material | 14 gauge 316 stainless steel with #4 brushed finish |
Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
Connections |
(1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
Core Features :
• Automatic polling and programming software included
• 2 Amp relay contacts to control an SL-2 Strobe Light (DOD 242) or LV-1K Line Verification Panel (DOD 246)
• Red “Call Connected” LED indicator
• SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• VoIP audio detection eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• Handsfree operation
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Help button dials up to 5 emergency numbers
• Info button dials up to 5 non-emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Diagnostics for testing mic, speaker, relay
• Flush mounts in a standard double gang box (not included)
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
