Turn-Tell White Vinyl Cassette R100X150V1M (Pack Of 5)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

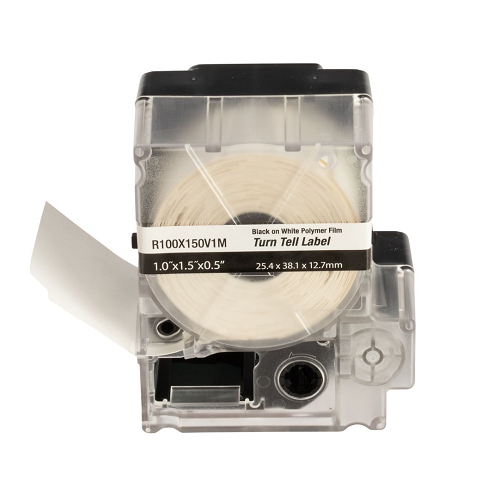

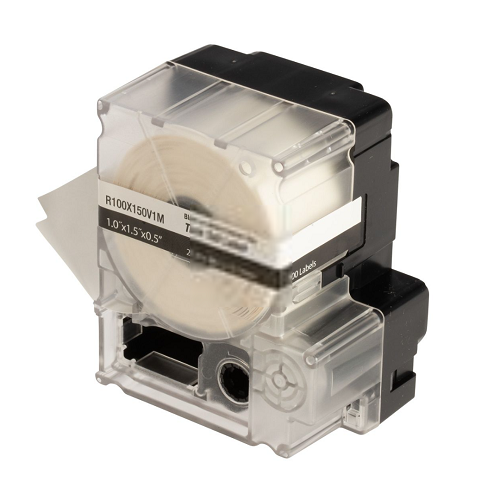

Turn-Tell White Vinyl Cassette R100X150V1M
About:
R100X150V1M Turn-Tell label cassettes, have an innovative design that allows label rotation to any angle for improved visibility, aesthetics, and easy repositioning. Label is 1.0" x 1.5” with 1.0" x 0.5" white print-on area and clear overlaminate. It can easily be installed on existing terminated wires and assemblies and does not require disconnecting wires or cables. For use with Panduit MP series printers.
Also Known As:
Turn-Tell Label Cassette, Vinyl Material, MP Printer Use, Cable & Wire Marking, White Color
Specification:
| Product Type | Turn-Tell Label Cassette |
| Note | For use with MP300 printer |
| Cable Type | Category 5e/6/6e UTP and Category 5e FTP |
| Color | White |
| Material | Vinyl |
| Number of Labels per Cassette | 100 |
| Compatible Wire Gauge (AWG) | 12-10 |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7.1 |
| Minimum Cable Diameter (In.) | 0.22 |
| Minimum Cable Diameter (mm) | 5.6 |
| Label Length (In.) | 1.5 |
| Label Length (mm) | 38.1 |
| Label Width (In.) | 1 |
| Label Width (mm) | 25.4 |
| Label Height (In.) | 1.5 |
| Label Height (mm) | 38.1 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 93 |
| Maximum Operating Temperature (°F) | 200 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Part No. | R100X150V1M |
