Turn-Tell White Vinyl Cassette R100X125V1M
About:

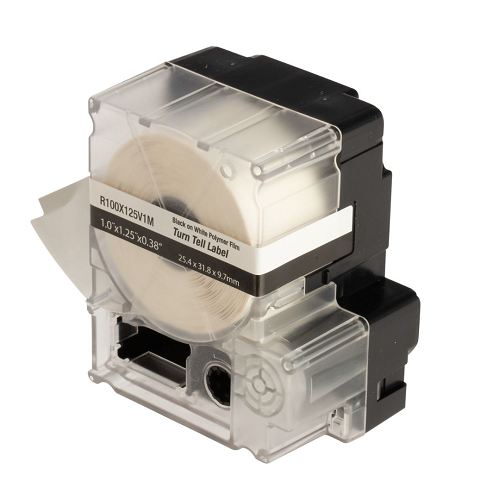

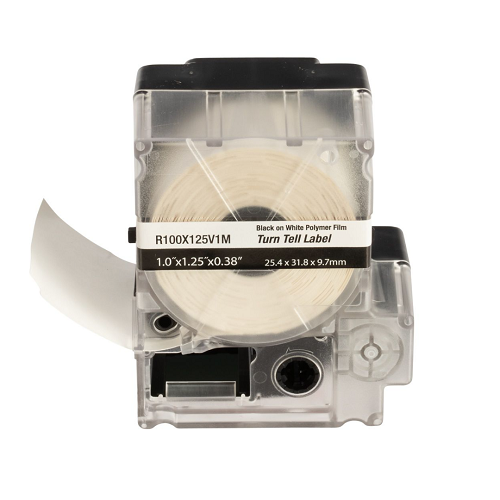

The R100X125V1M Self-Laminating Turn-Tell Label Cassette includes both label material and ribbon for easy changeover. The label design allows rotation for visibility from any angle - reposition on the wire/cable to align legends and improve aesthetics. Can be easily installed on existing terminated wires and assemblies without disconnecting the wires/cables. For use with the MP300 printer. Vinyl. 1" x 1.25" (25.4 mm x 31.8 mm). Color Clear/White.
Also Known As:
Turn-Tell Label Cassette, Vinyl Material, MP300 Printer Use, Cable & Wire Marking, White Color
Specification:
| Product Type | Turn-Tell Label Cassette |
| Note | For use with MP300 printer |
| Cable Type | Category 3 UTP |
| Color | White |
| Material | Vinyl |
| Number of Labels per Cassette | 125 |
| Compatible Wire Gauge (AWG) | 12-10 |
| Maximum Cable Diameter (In.) | 0.22 |
| Maximum Cable Diameter (mm) | 5.6 |
| Minimum Cable Diameter (In.) | 0.16 |
| Minimum Cable Diameter (mm) | 4.1 |
| Label Length (In.) | 1.25 |
| Label Length (mm) | 31.8 |
| Label Width (In.) | 1 |
| Label Width (mm) | 25.4 |
| Label Height (In.) | 1.25 |
| Label Height (mm) | 31.8 |
| Print-On Area Height (In.) | 0.38 |
| Print-On Area Height (mm) | 9.7 |
| Maximum Operating Temperature (°C) | 93 |
| Maximum Operating Temperature (°F) | 200 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Part No. | R100X125V1M |
