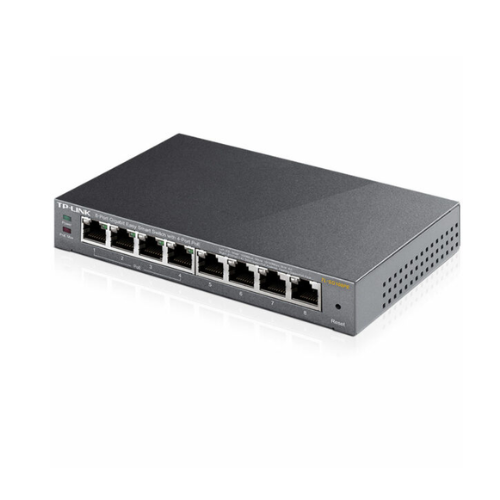

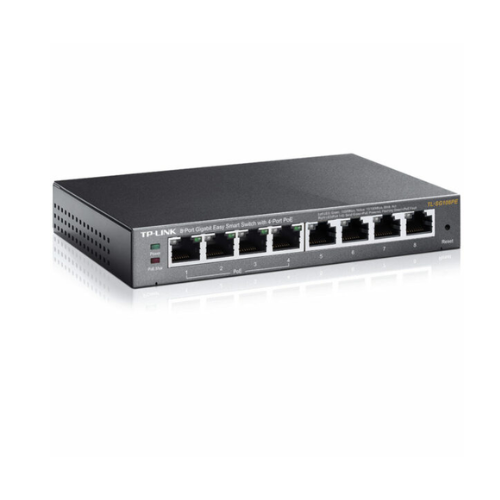

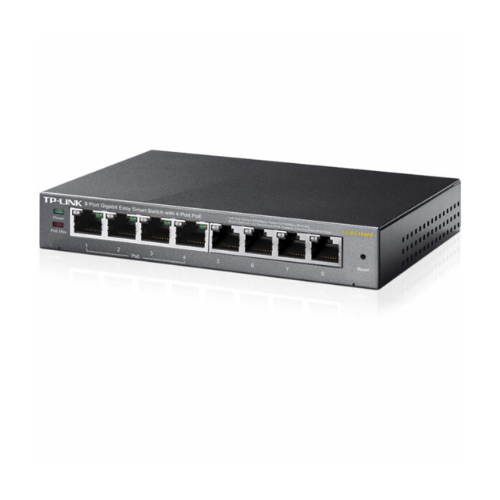

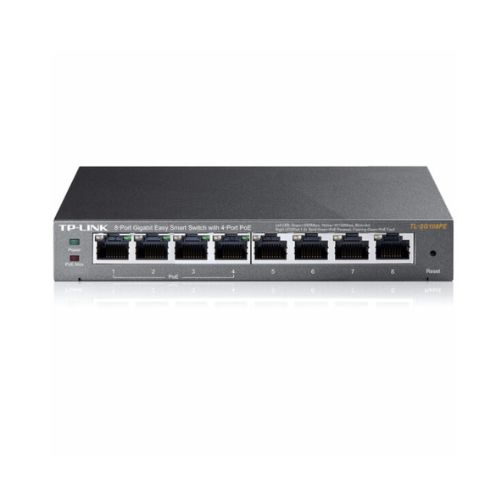

TPLINK 8-Port Gigabit Easy Smart Switch with 4 PoE+ Ports TPL-TL-SG108PE
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
TP-Link TL-SG108PE, Easy Smart Managed – 4 PoE+ Ports @64W – Plug & Play – Sturdy Metal with Shielded Ports – Fanless – QoS, Vlan & IGMP.
Also known as:
Ethernet Switches, 8 Port Ethernet Switch, PoE+ Ethernet Switch, Smart Network Switch, Networking Switches.
Specifications:
| Switch Type | Easy Smart Switches |
| Number of Ports | 5-10 |
| Main Port Speed | Gigabit |
| Uplink Ports | Gigabit RJ45 |
| Layer Support | L2+ |
| PoE Support | Yes |
| PoE Budget | Low (30-70 W) |
| Weight | 1.92 lbs |
| Dimensions | 7.72 × 5.16 × 4.76 in |
| Part Number |
TPL-TL-SG108PE |
Performance:
• Switching Capacity: 16Gbps
• Packet Forwarding Rate: 11.9Mbps
• MAC Address Table: 4K
• Packet Buffer Memory: 1.5Mb
• Jumbo Frame: 15KB
Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Features:
• 8 10/100/1000Mbps RJ45 ports
• With 4 PoE ports, data and power can be transferred on one single cable
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration
Download PDF Spec Sheet
