Thermal Transfer Self-Laminating Label White S200X225VATY (Pack Of 1000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

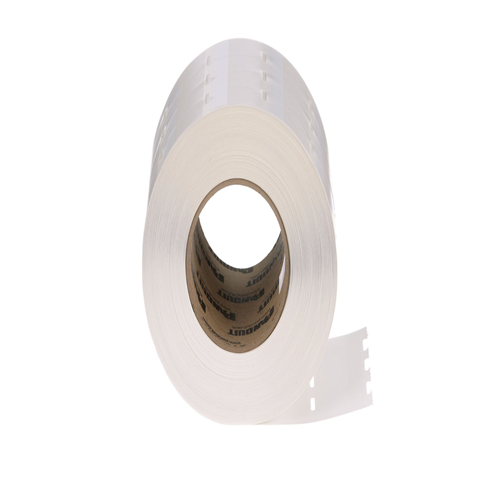

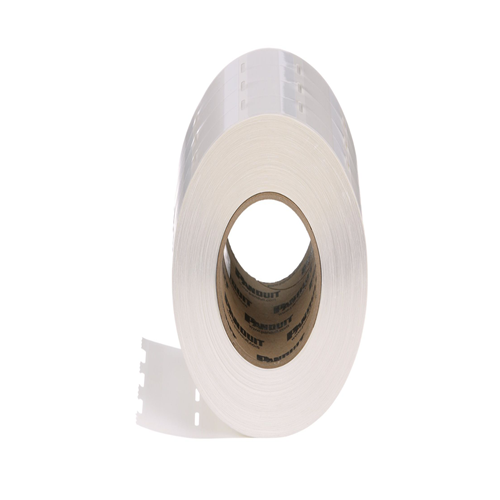

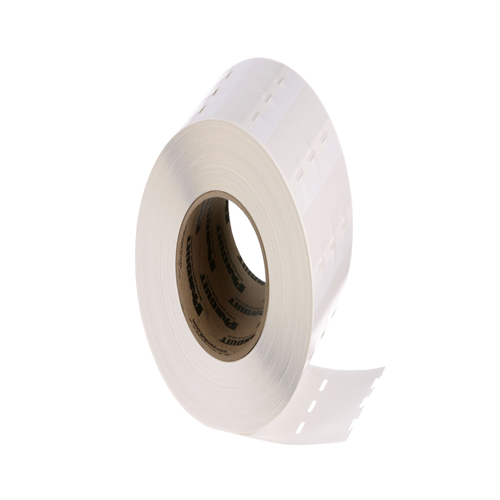

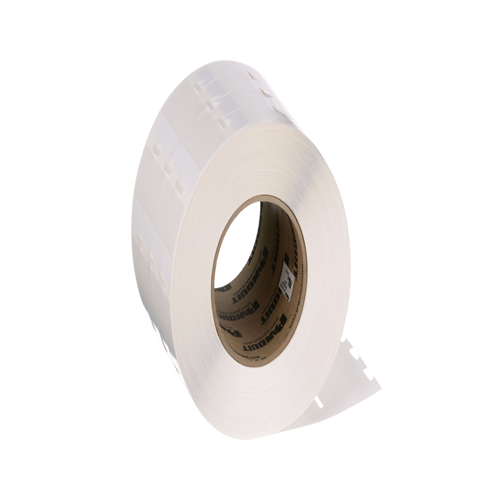

The S200X225VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 2" x 2.25" (50.8 mm x 57.2 mm). Color Clear/White.
Specification :
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP; Category 6a (10 Gig) UTP; Category 6e (10 Gig) FTP |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 8 – 4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.1 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 1000 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Print-On Area Height (In.) | 0.75 |
| Print-On Area Height (mm) | 19 |

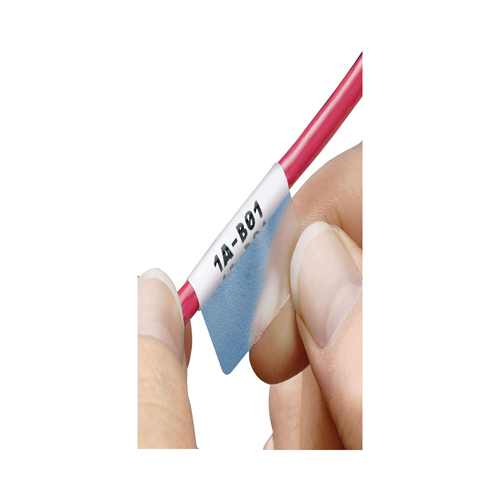

| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
Features :
• Durability: These labels are designed to withstand various environmental conditions, including moisture, chemicals, and abrasion. The self-laminating feature adds an extra protective layer that shields the printed information from damage.
• Versatility: They can be used in a wide range of applications, from industrial settings to office environments. The adhesive ensures they adhere firmly to different surfaces, including plastic, metal, and paper.
• Clarity: The white background of the label enhances visibility and readability of the printed information. This is especially important for barcodes, serial numbers, and other critical data.
Download PDF Spec Sheet
