Thermal Transfer Self-Laminating Label Vinyl White S050X150VATY (Pack Of 5000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
About :

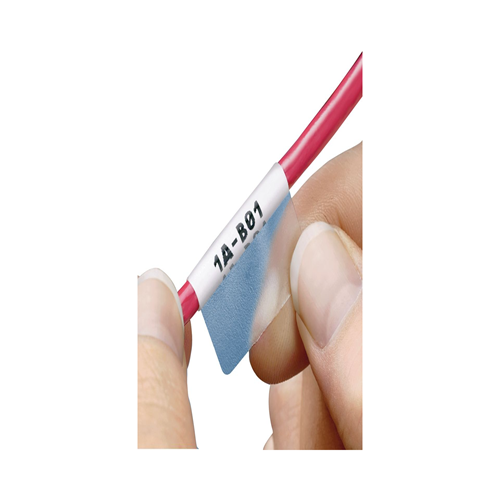

The S050X150VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 0.50" x 1.50" (12.7 mm x 38.1 mm).
Specification :
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Cable Type | Category 5e UTP;Category 6 UTP;Category 6A UTP; Category 5e FTP |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 10 – 6 |
| Maximum Cable Diameter (In.) | 0.32 |
| Maximum Cable Diameter (mm) | 8.1 |
| Minimum Cable Diameter (In.) | 0.16 |
| Minimum Cable Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5000 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
Features :
• Self-Extinguishing: This feature means that the label is designed to resist flames and will extinguish itself if exposed to fire, contributing to fire safety in environments where flammability is a concern.
• Self-Laminating: The self-laminating aspect implies that the label comes with its own protective layer that can be applied over the label itself without needing an additional lamination process. This protective layer shields the label from damage caused by moisture, chemicals, abrasion, and other environmental factors, thus prolonging its lifespan.
• Tedlar Material: Tedlar is known for its exceptional durability, chemical resistance, and weatherability. Labels made from Tedlar are suitable for harsh environments where exposure to chemicals, UV radiation, extreme temperatures, and physical abrasion is common. This material ensures that the label maintains its integrity and legibility over an extended period.
