Thermal Transfer Self-Laminating Label Vinyl White S050X150VA1Y (Pack Of 5000)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

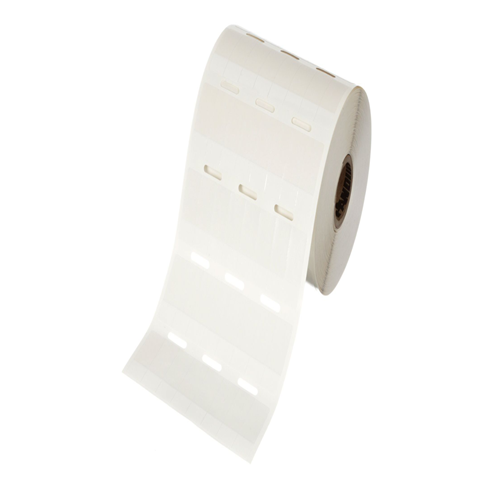

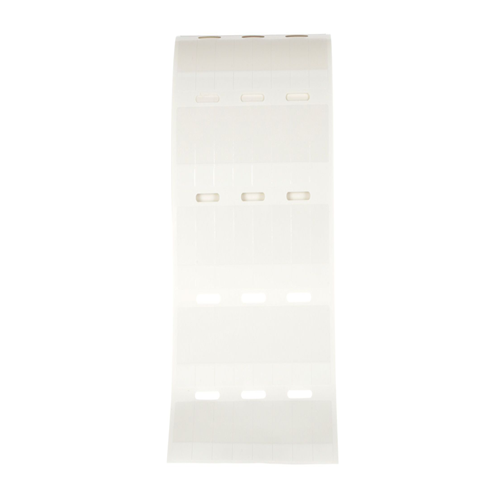

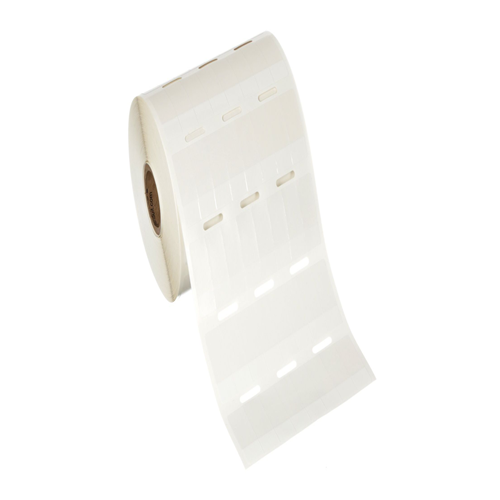

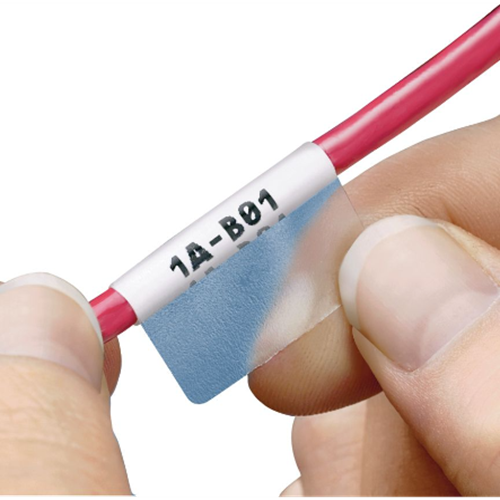

The S050X150VA1Y Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 0.50" x 1.50" (12.7 mm x 38.1 mm).
Specification :
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Cable Type | Category 5e UTP; Category 6 UTP; Category 6e UTP; Category 5e FTP |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 10 – 6 |
| Maximum Cable Diameter (In.) | 0.32 |
| Maximum Cable Diameter (mm) | 8.1 |
| Minimum Cable Diameter (In.) | 0.16 |
| Minimum Cable Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5000 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Print-On Area Height (In.) | 0.5 |
| Print-On Area Height (mm) | 12.7 |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
Features :
• Thermal Transfer: This indicates the printing method used for these labels. Thermal transfer printing involves using heat to transfer ink from a ribbon onto the label material. It's a common method for creating high-quality, long-lasting labels.
• Self-Laminating: These labels feature a self-laminating design, which means they have a clear protective layer that can be applied over the printed area. This layer helps protect the printed information from damage due to moisture, chemicals, abrasion, or other environmental factors.
• Label: This term simply refers to the adhesive-backed material used for identifying or marking objects. Labels come in various sizes, shapes, and materials to suit different applications.
• White: This indicates the color of the label. White labels are versatile and commonly used for general-purpose labeling where high visibility is desired.
Download PDF Spec Sheet
