Thermal Transfer Heat Shrink Label Roll H075X044H1T-B
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Heat Shrink Label |
| Color | White |
| Material | Polyolefin |
| Flammability Rating | VW-1 |
| Compatible Wire Gauge (AWG) | 16-10 |
| Number of Labels | 5000 |
| Standards Met | Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant. |
| Number of Labels per Row | 2 |
| Number of Sides | 1 |
| Resistance Properties | Military Grade |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability, Fluid Resistance, Harsh Environments, Military Grade |
| Printer Type | Thermal Transfer |
| Overall Height (In.) | 0.44 |
| Overall Width (In.) | 0.75 |
| Part No. | H075X044H1T-B |
Thermal Transfer Heat Shrink Label H075X044H1T-B
Description:

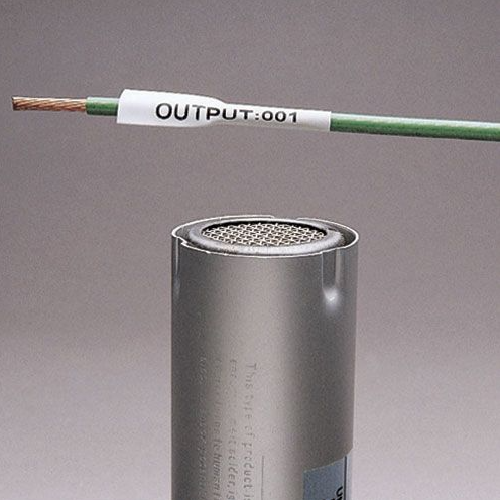

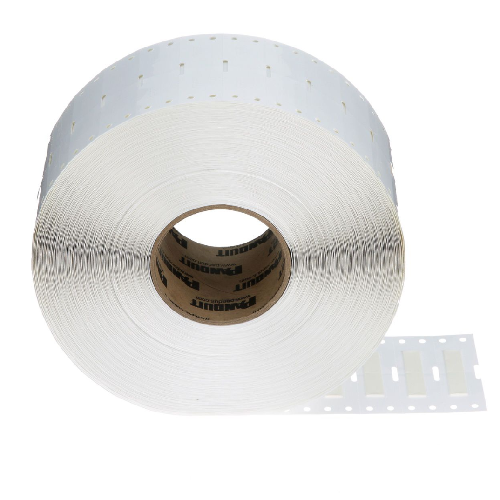

The H075X044H1T-B Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.75" x 0.44" (19 mm x 11.2 mm). Color White. 5000 labels per roll.
