Telephone Butt Set with High Impedance Monitoring Analog TBS-200
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | High Impedance Monitoring Analog |
| UPC | 810132436499 |
| Loop Limit | 4K ohms max. at 48VDC (5K meter - 26Ga non-loaded) nominal 15 mA minimum loop current |
| DC Resistor | 150 ohms Typical at 80 mA current |
| Monitor impedance, Ring Position | Low impedance—600 ohms Typical at 1 KHz |
| Monitor Impedance, Monitor Position | High impedance—100K ohms Typical at 1 KHz |
| Rotary Dial Output, Pulse Rate | 10 +/- 0.5 pulses/sec |
| Rotary Dial Output, Percent Break | 60% +/- 2% |
| Rotary Dial Output, Interdigital Pause | 8.5 ms Typical |
| Rotary Dial Output, Leakage During Break | > 50k ohms |
| DTMF Output, Tone Frequency Error | +/- 1.5% |
| DTMF Output, Level of Tone Pair | +2 dBm max., -8 dBm min. |
| DTMF Output, Low vs High Tone Difference | -4 dBm max |
| Dimensions | 9 in x 2 in x 2 in |
| Part Number | TBS-200 |
Telephone Butt Set with High Impedance Monitoring Analog
Description:

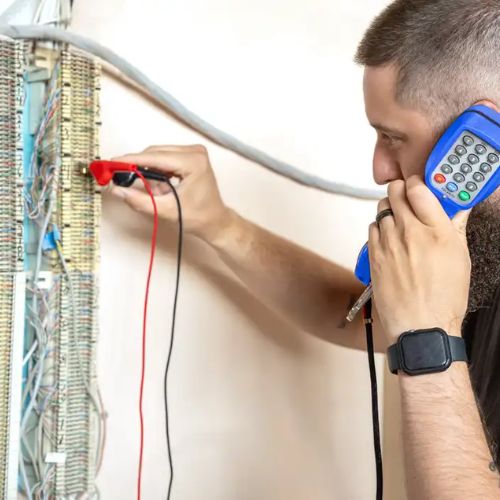

This telephone butt set is designed for installing, servicing, and maintaining analog telephone lines, offering all essential testing functions, including dial tone detection, call making and receiving, high-impedance monitoring, and both tone and pulse modes.
Features:

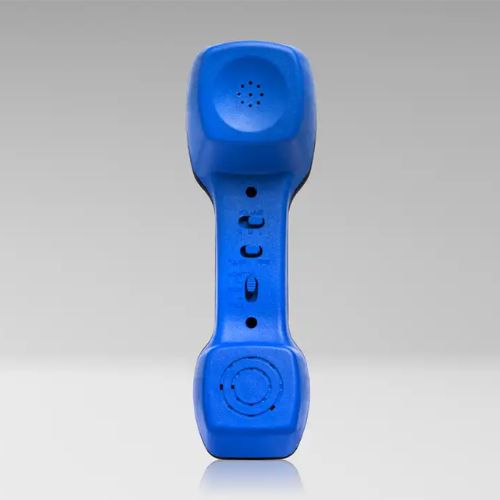

• Talk, Ring, and Monitor test functions, switchable from the handgrip
• Supports signaling via dial tone (DTMF) or dial pulse

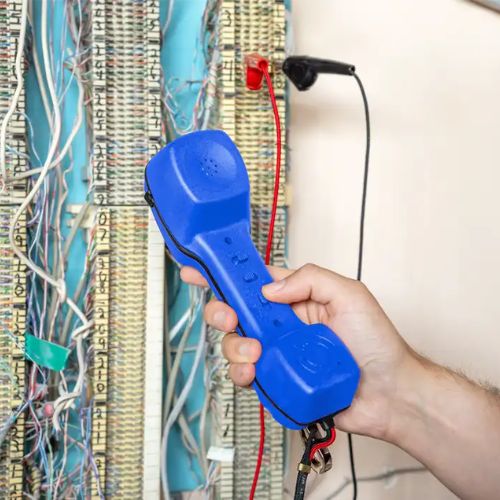

• High-impedance monitoring prevents disruption of data, conversations, or signals
• A bright LED clearly indicates reversed polarity
• Last-number redial memory (up to 31 digits)
• Built-in voltage protection against surges, ringer signals, and accidental battery/power supply connections

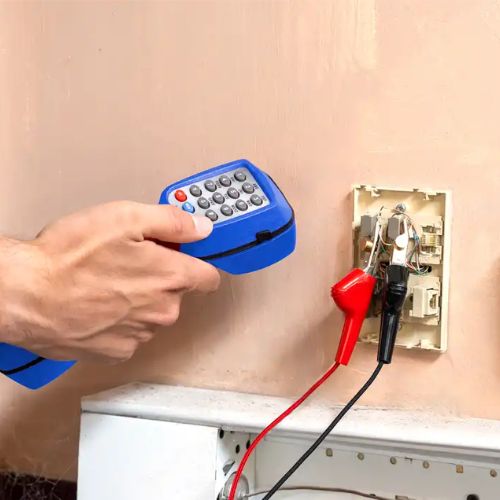

• Angled Bed-of-Nails (ABN) clips for secure connections
Download PDF Spec Sheet
