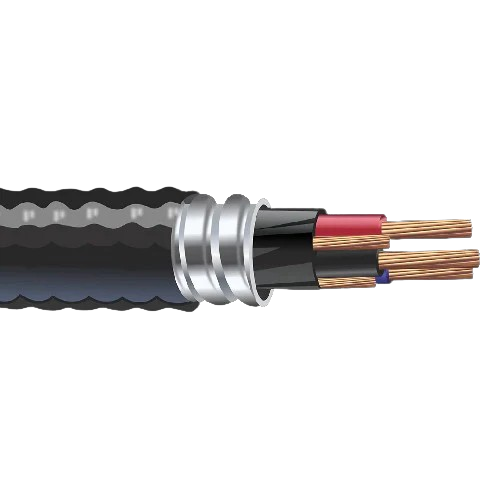

Teck 90 Bare Copper Aluminum Interlocked Armored Control Cable 1KV

Teck 90 Bare Copper Aluminum Interlocked Armored Control Cable 1KV

Application:

For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet, dry, or hazardous locations. Sunlight Resistant. Typical applications are for control. lighting and power circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants.1000V Multi Conductor, 14-10 AWG Copper, FT4 - Flame Retardancy Rating, XLPE Insulation, Aluminum Interlocked Armour, Sunlight Resistant, -40°C - 90°C, Rated HL, AG14.

Also Known As:

Teck90 Canadian Copper Construction Wire, Teck90, Teck90 Cable, Teck90 Wire, Teck90 Interlocked Armoured Cable, Teck 90 Bare Copper Aluminum, TECK90 Armored Control Cable.

Construction:

• Conductor: Class B stranded copper, compressed or compact, in accordance with ASTM B3 and B8
• Insulation: Cross-Linked Polyethylene (XLPE), Colour Code: 2/C black, white; 3/C red, black, blue; 4/C red, black, blue, white
• Grounding Conductor: Uninsulated Class B stranded grounding conductor
• Inner Jacket: Black Polyvinyl Chloride (PVC)
• Armor: Aluminum Interlocked Armor (AIA)
• Overall Jacket: Black PVC (optional colours available)

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• CSA C22.2 No. 174 Cables in Hazardous Locations
• CSA C22.2 No. 131 Type TECK 90 Cable
• CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
• CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
• CSA HL - for Hazardous Locations rating
• CSA SUN RES - for Sunlight Resistant rating
• CSA AG14 - Acid Gas Compliance
• IEEE 383 Flame Test (70,000 btu)
• IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test

Features:

• -40°C - CSA Cold Bend and Impact Temperature
• -40°C - Min. Installation Temperature
• 90°C - Max. Continuous Operating Temperature
