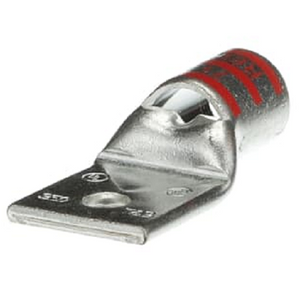

T&B 350 COPPER STANDARD BARREL 1-HOLE 3/8" BOLT - 256-30695-112 (Pack of 5)
Where are we? 4 Continents 8 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Chat
Live Chat: Bottom Right Corner!
Email Us
info@nassaunationalcable.com
Quick Support
Product Information
Specification
| Number of Pad Holes | 1 |
| Stud Size | 3/8 Inch |
| Color | Red |
| Die Index | 71 |
| Material | Electro Tin Plated Wrought Copper |
| Overall Length | 2.9 Inch |
| Voltage Rating | 600 Volt to 35 Kilovolt |
| Conductor Material | Copper |
| Conductor Size | 350 KCMIL (Code), 350 (Navy, Flex) |
| Barrel Type | Standard, Straight |
| Pad Size | 1.13 Inch Length x 1.36 Inch Width x 0.18 Inch Thickness |
| Category | Large Terminals & Connectors |
| Part Number | 256-30695-112 |
Description:
Electro Tin Plated Wrought Copper Material; Red Color; 2.9 Inch Overall Length; Copper Conductor Material; 600 Volt to 35 Kilovolt Voltage Rating; 350 kcmil (Code), 350 (Navy, Flex) Conductor Size; 3/8 Inch Stud Size; 71 Die Index; 1.13 Inch Length X 1.36 Inch Width X 0.18 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 256-30695 Model
Key Features:
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
- 1/2 in hole to tongue end
