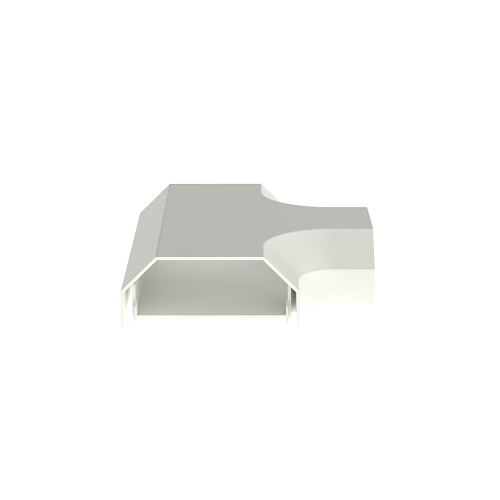

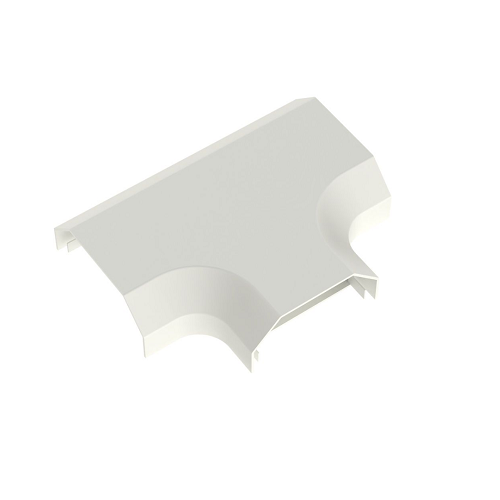

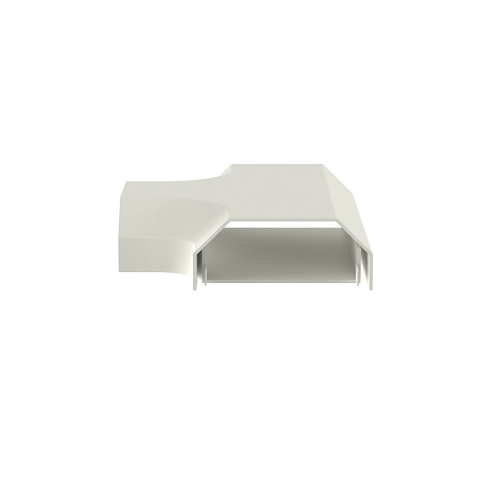

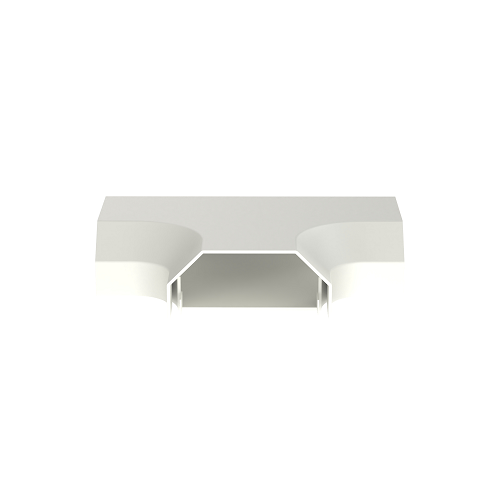

Surface Raceway Off-White Tee Fitting PANDUIT T70TIW

Product Information

Specification

Specification :

Description

Mini-Com Classic Series Faceplates mount to any standard size single gang junction box and can also mount to a wallboard adapter or raceway mounting brackets. When using classic series faceplates with Panduit surface raceway, color matching is guaranteed. Classic series faceplates with label and label cover offer a quick and easy way to identify the ports. Mounting screw colors match the faceplate for a clean, consistent look. Dedicated sloped faceplates provide additional room for bend radius control to help comply with standards. Select sloped faceplates include icon slots to help identify the connection. Eco packaging available for select product, provides easy access to the product and components while reducing waste

Application

Pan-Way T-70 Non-Metallic Surface Raceway is a multi-channel channel raceway which provides solutions for routing low voltage, fiber optic and/or power cabling along perimeter walls. T-70 raceway can mount NEMA standard screw-on faceplates or superior Pan-Way® Snap-on Faceplates directly to the channel. T-70 features the Workstation Outlet Center™ Offset Box, which provides an offset solution to maximize channel capacity and outlet density

Features

• 1" bend radius control fittings- Cables in the raceway will satisfy the minimum 1" bend radius requirement, preventing the potential degradation of cable performance; meets TIA/EIA standard and many warranty requirements.

• Snap-on faceplates- Faceplates snap directly onto the raceway base; cabling can be quickly accessed by removing only the faceplate, requiring less labor and cost
of maintenance.

• Channel has a 70mm opening- Accepts any manufacturer’s NEMA standard snap on or screw-on power or communication faceplates.

• Highly tamper resistant-Very difficult for untrained personnel to enter the raceway or remove faceplates; provides maximum security for communication cabling and
maximum safety for power cabling.

• Non-metallic construction- Lightweight reduces installer fatigue; solid color throughout profile will not chip peel, rust, corrode, or scratch; easy to cut reducing the need for special cutting devices; high impact resistance; durable.

• Designer profile- Aesthetically pleasing and matches a wide variety of decors.

• Available in there standard colors- Matches a variety of colors for various applications
