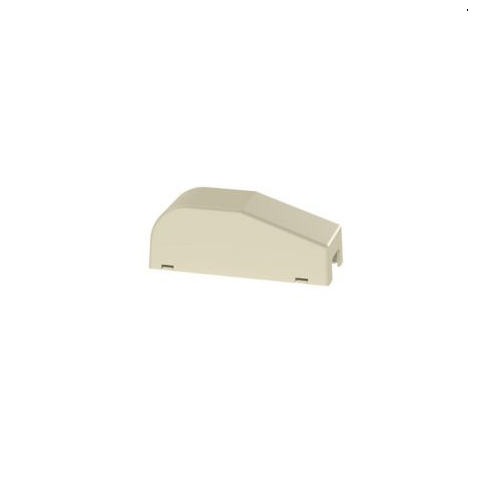

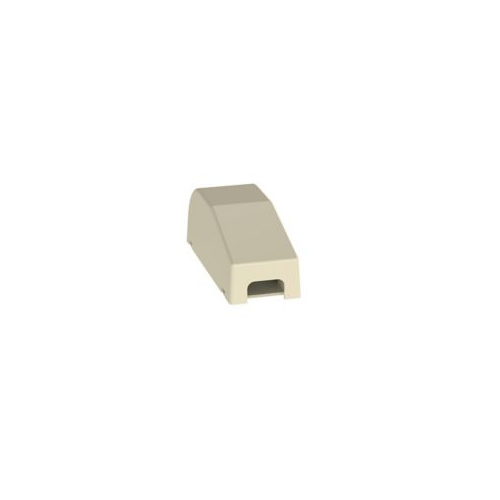

Surface Raceway Electric Ivory PVC Power Rated Fitting RAEFXEI-X
About:
The LD/LDPH Power Rated, 1" BRC is designed to maintain proper bend radius within the channel. It is Electric Ivory.
Also Known As:
Power Rated Fitting, PVC Material, Entrance End/Right Angle Fitting, Electric Ivory Color
Features:
1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes.
Application:
Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.
Specification:
| Product Type | Power Rated Fitting |
| Color | Electric Ivory |
| Fitting Type | Entrance End/Right Angle |
| Mounting Bolt Method | Cage Nut |
| For Use With | LD3, LDPH3, LDS3, LD5, LDPH5, LDS5, LD10, LDPH10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Overall Length (In.) | 5.05 |
| Overall Length (mm) | 128 |
| Overall Width (In.) | 1.94 |
| Overall Width (mm) | 49.2 |
| Overall Height (In.) | 1.88 |
| Overall Height (mm) | 47.6 |
| Part No. | RAEFXEI-X |
