Surface Raceway Elec Ivory Junct Box RJBX3510EI
About:

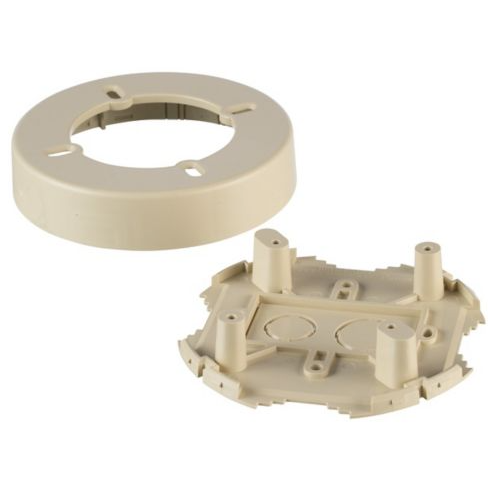

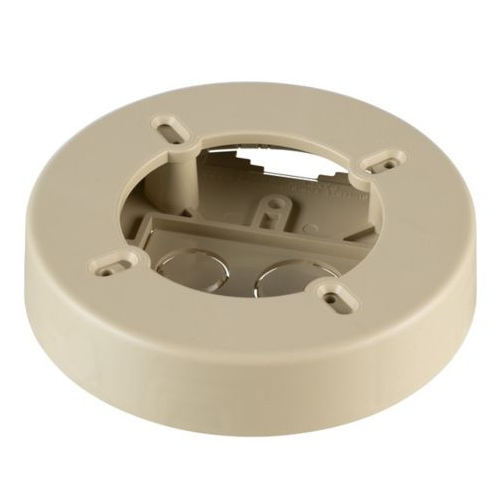

The single gang two-piece screw together round outlet box accepts UL/CSA devices not to exceed 10lbs. (5lbs. per CSA). For use with Pan-Way LD profile raceway. Dia. = 5.48"D x 1.14"H (139.2mm x 29.0mm). Breakouts for 3/4" or 1" diameter conduit. It is Electric Ivory.
Also Known As:
Junct Box, Single Gang, Two-Piece Round Outlet Box, PVC Material, Elec Ivory Color
Application:
Single Gang Two-Piece Screw Together Round Outlet Box. Box Accepts Ul/Csa Devices not to Exceed 10Lbs. (5Lbs. Per Csa).
Specification:
| Product Type | Junction Box |
| Color | Electric Ivory |
| Gang Opening Type | Single Gang |
| Material | PVC |
| Raceway Type | Two-Piece Round Outlet Box |
| Overall Length (In.) | 5.51 |
| Overall Length (mm) | 139.9 |
| Overall Width (In.) | 5.51 |
| Overall Width (mm) | 139.9 |
| Overall Height (In.) | 1.15 |
| Overall Height (mm) | 29.1 |
| Part No. | RJBX3510EI |
