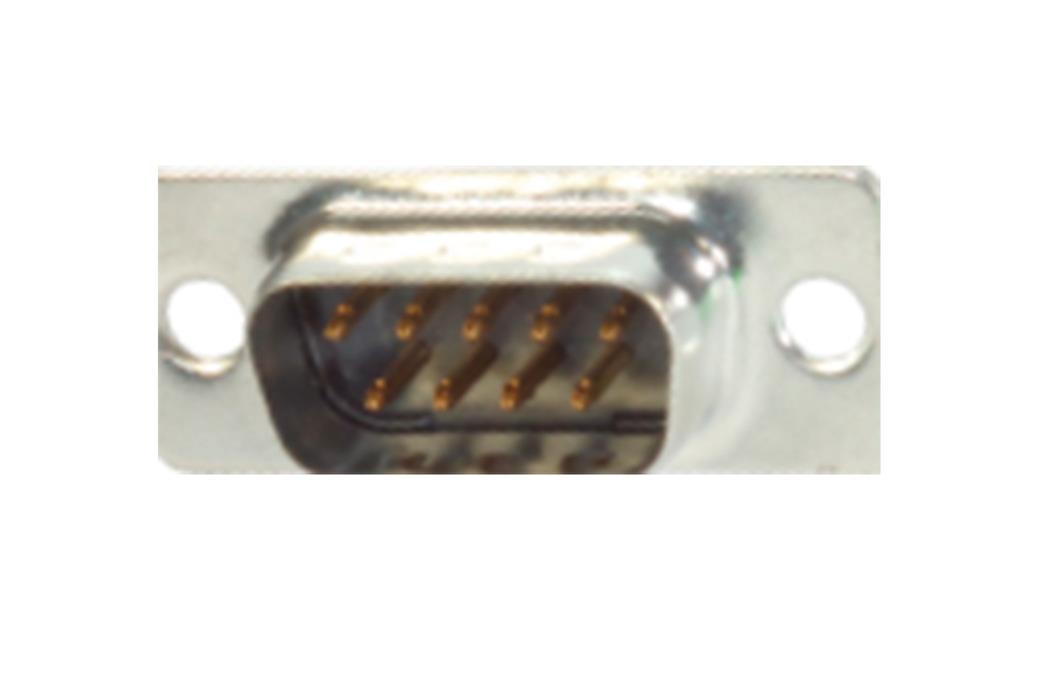

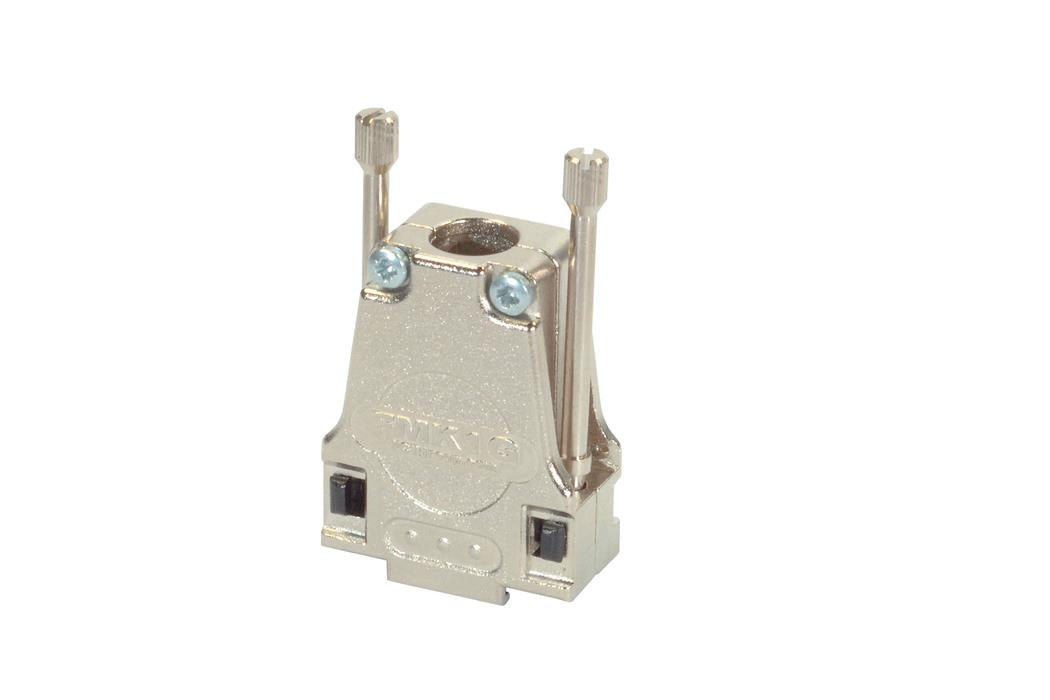

SUB-D straight Signal connector MAT01716507
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
General properties
| Design |
Standard connector |
| Solder insert |
socket 15-pole High Density |
| Material |
Zinc die-casting, nickel plated |
| Insulation body |
Glass fiber reinforced polyester |
| Contacts |
Copper alloy, flash gold-plated |
| SpeedTec |
No |
| Temperature Range | -31°F to +212°F |
Electrical Properties
| Max. continuous nominal current |
5 A |
| Testing voltage |
(L-L) 1200 V |
| Contact resistance |
1016 Ω/cm |
| Insertion cycles |
50 |
SUB-D straight Signal connector MAT01716507
Description
• SUB-D straight Signal connector . It is Zinc die-casting, nickel plated material. It's Temperature range -31°F to +212°F. It is Glass fiber reinforced polyester insulation body. It is Copper alloy, flash gold-plated contacts.
Specification
• Design: Standard connector
• Material: Zinc die-casting, nickel plated
• Insulation body: Glass fiber reinforced polyester
• Contacts: Copper alloy, flash gold-plated
• Max. continuous nominal current: 5 A
• Testing voltage: (L-L) 1200 V
• Contact resistance: 1016 Ω/cm
• Insertion cycles: 50
• Temperature range: -31°F to +212°F
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
