StructuredGround™ HTAP Kit 250-2 PANDUIT HTWC250-2-1
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Color Code | Purple |
| Panduit Die Index Number | PH25 |
| Sub Brand | StructuredGround™ |
| Maximum Run Size (kcmil) | 250 |
| Minimum Run Size (AWG STR) | 4/0 |
| Maximum Tap 1 Size (AWG) | 2 |
| Minimum Tap 1 Size (AWG) | 8 |
| Maximum Tap 2 Size (AWG) | 8 |
| Minimum Tap 2 Size (AWG) | 14 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25 |
| Surface Treatment | Tinned |
| For Use With | HTCT250-2-1 |
| Standards Met | UL and CSA up to 600V |
| Application | Utility/Ground Grid |
| Product Type | HTAP Kit |
StructuredGround™ HTWC250-2-1 HTAP Kit 250-2 PANDUIT HTWC250-2-1
Description:

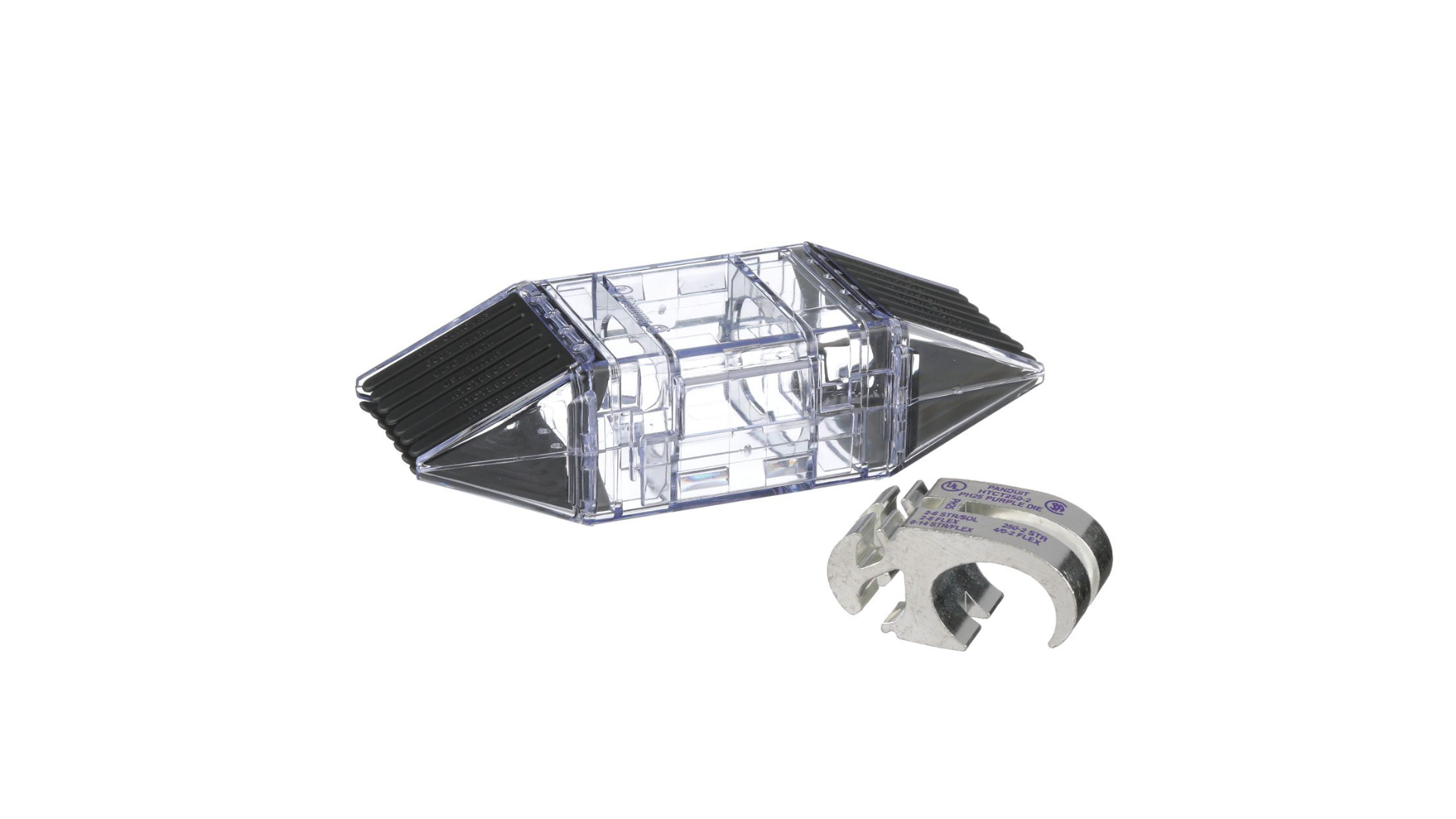

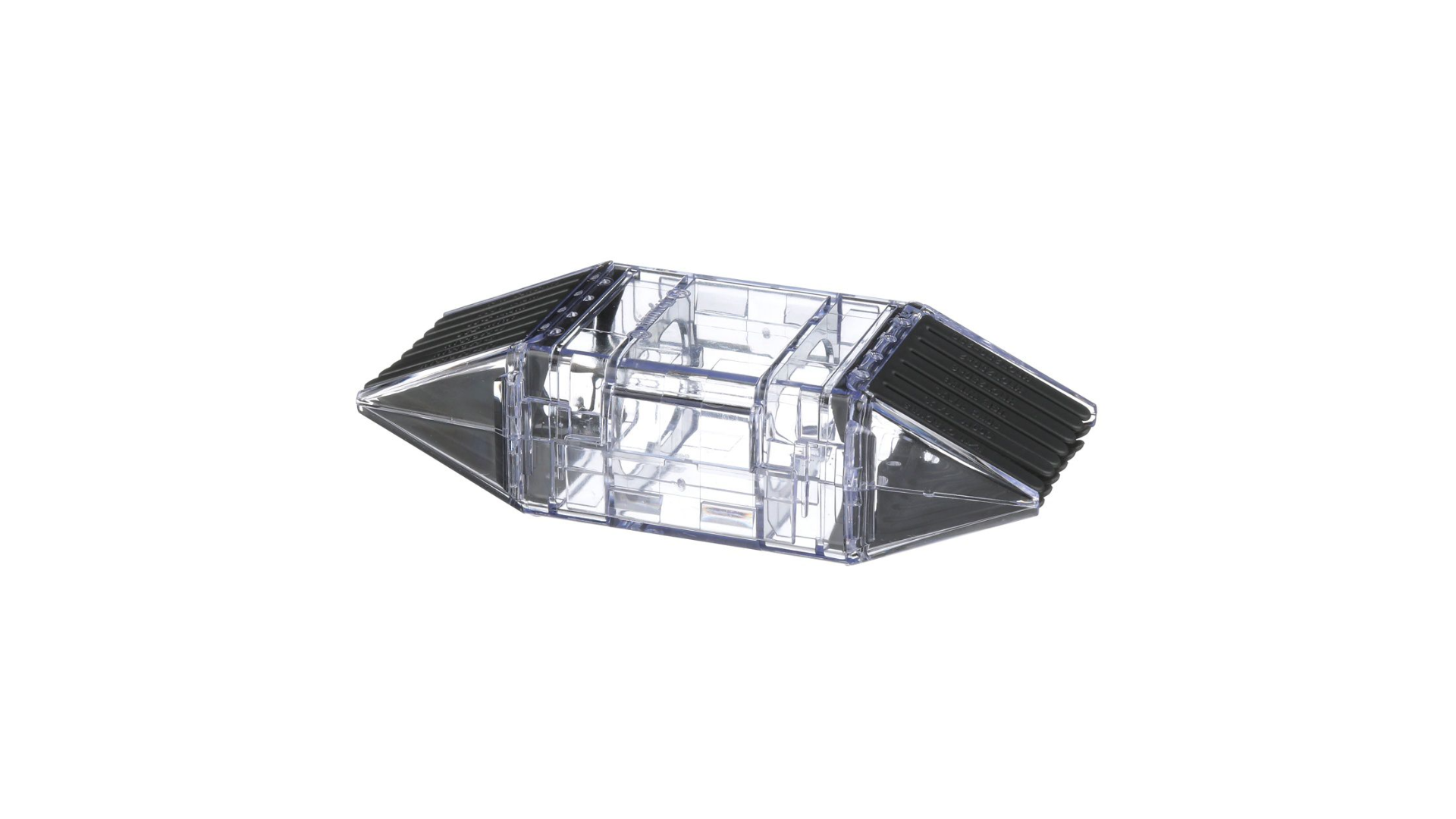

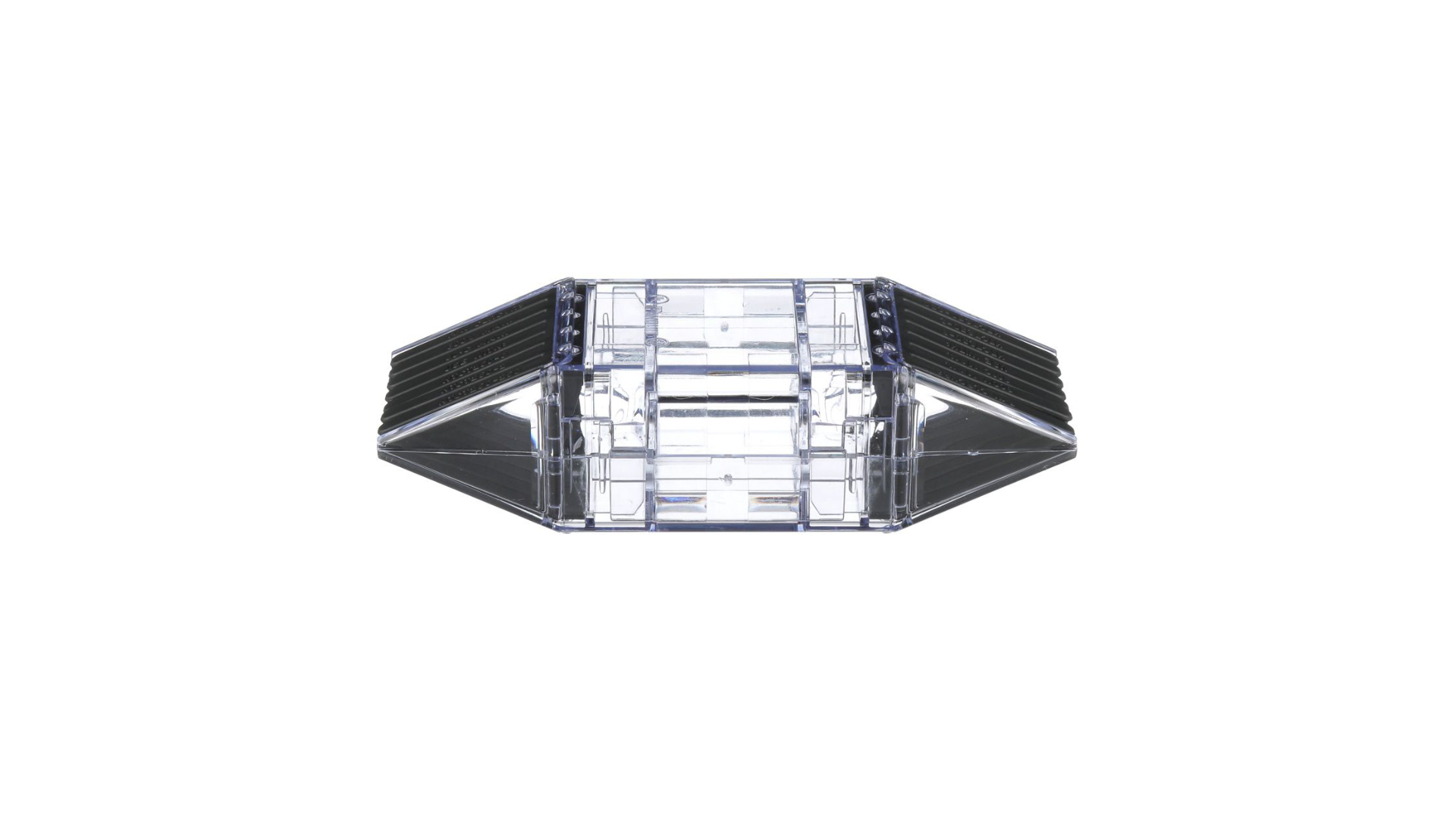

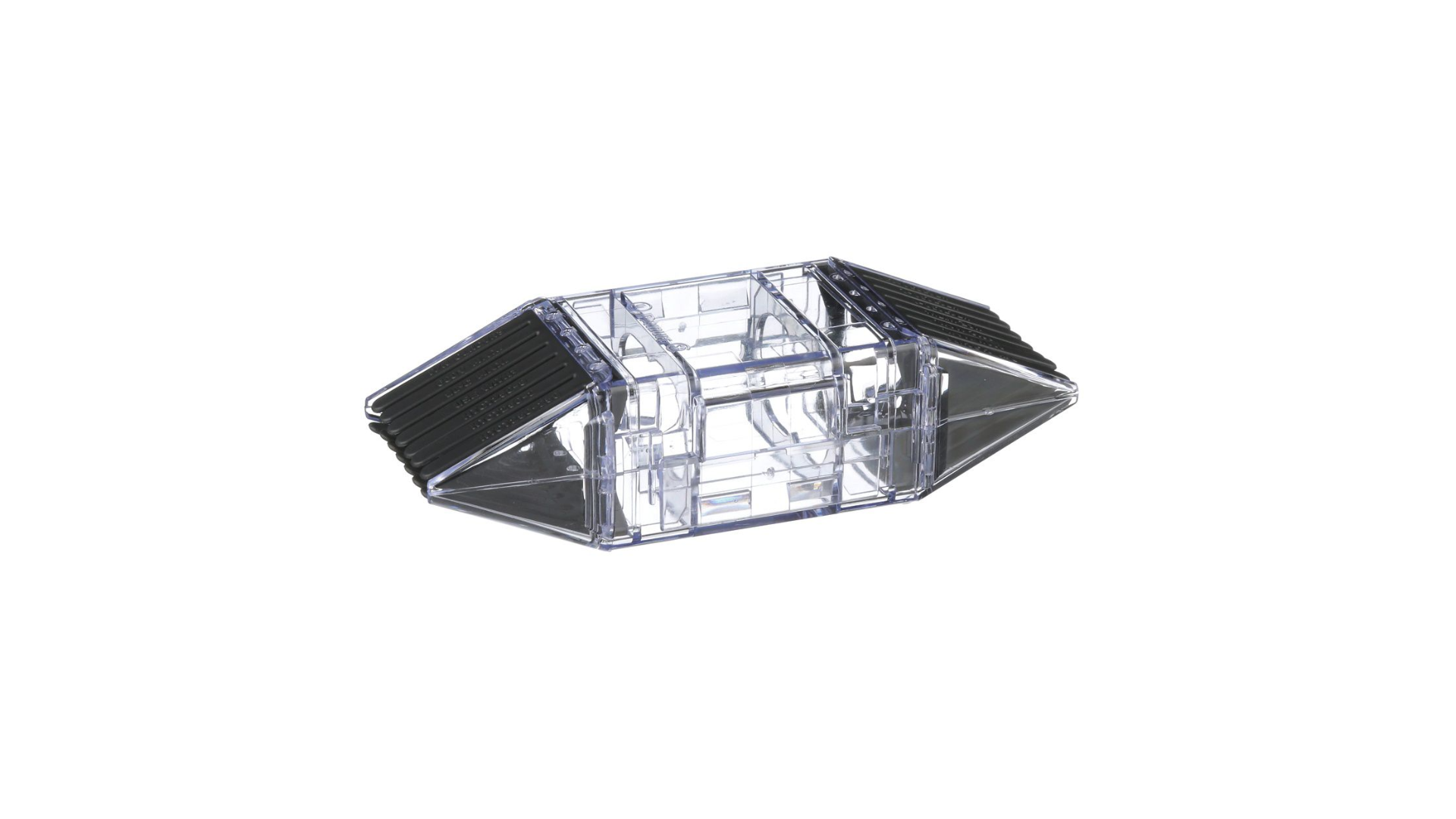

The HTWC250-2-1 HTAP Kit has a two-piece high impact plastic clear cover to provide 360° inspection of crimped connection. The cover has a UL 94V-0 flame rating and oxygen index of 28, providing self-extinguishing, flame retardant properties. For use with code or flexible strand class G, H, I, and Diesel Locomotive Flex cable. Color-coded and marked with Panduit die index numbers for proper die selection. Meets cULus requirements and CSA certified for use up to 600 volts.
