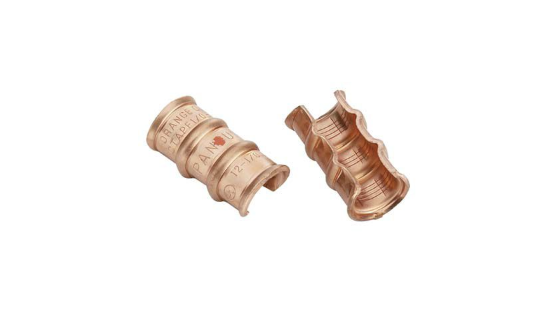

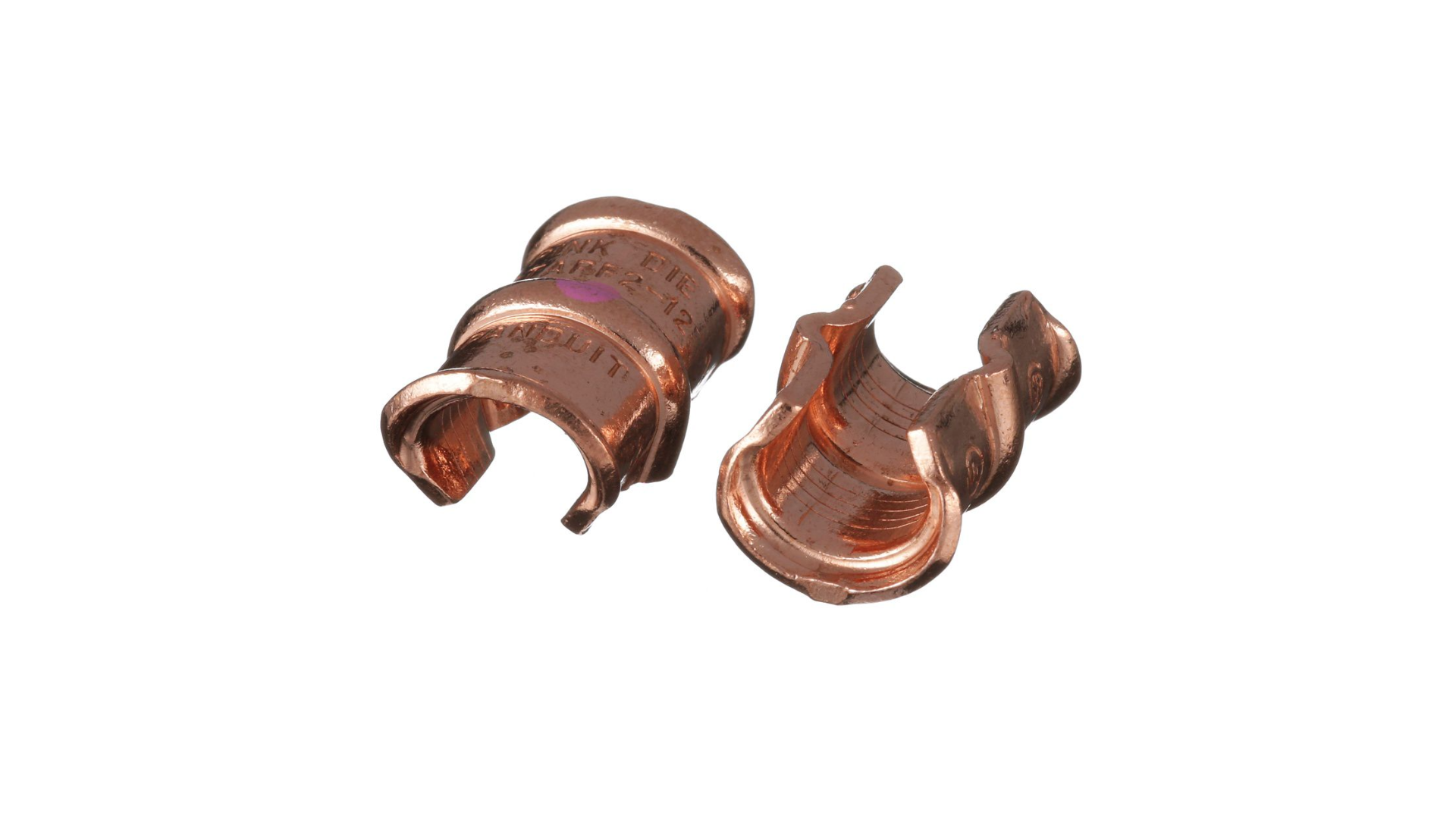

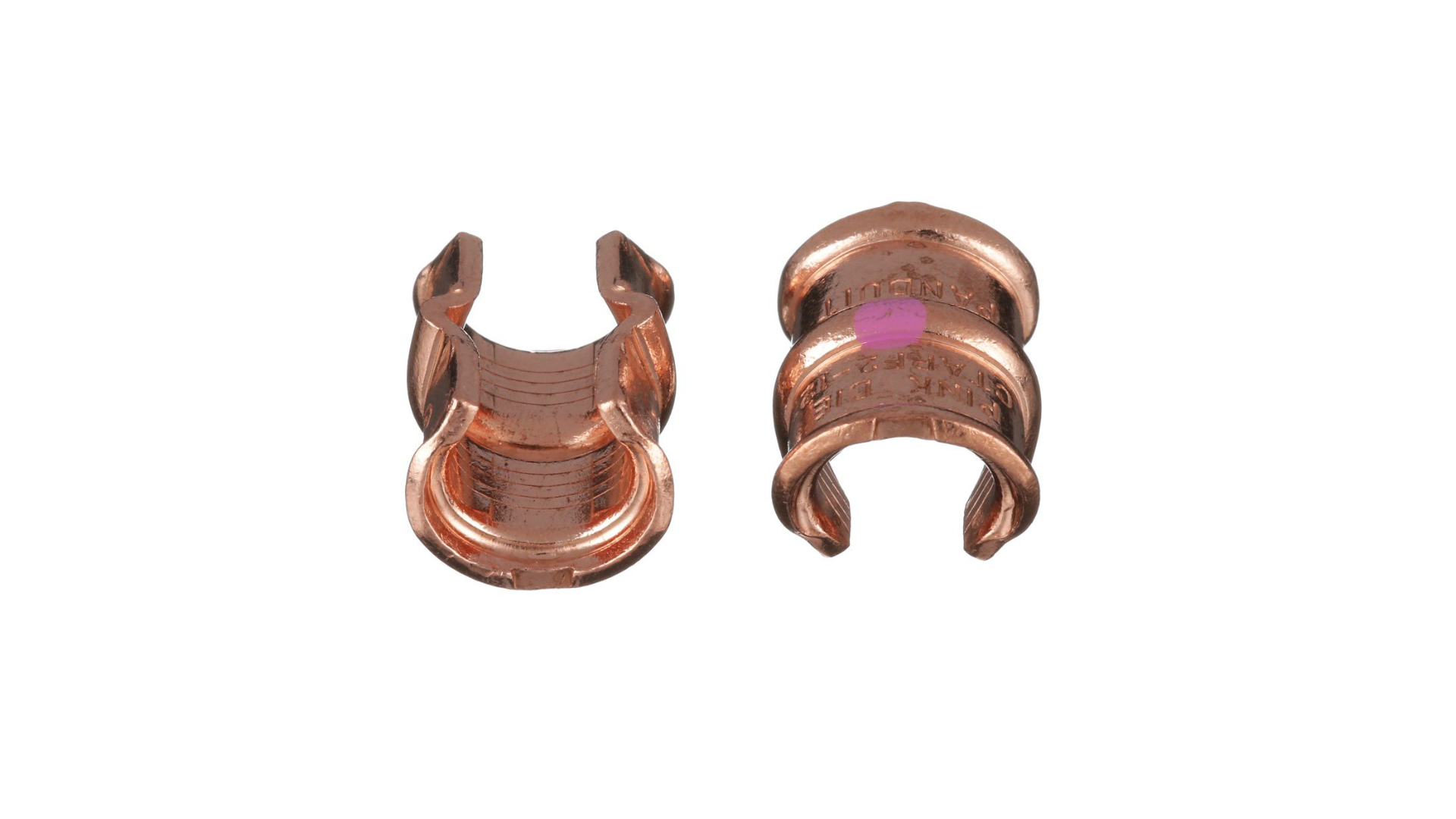

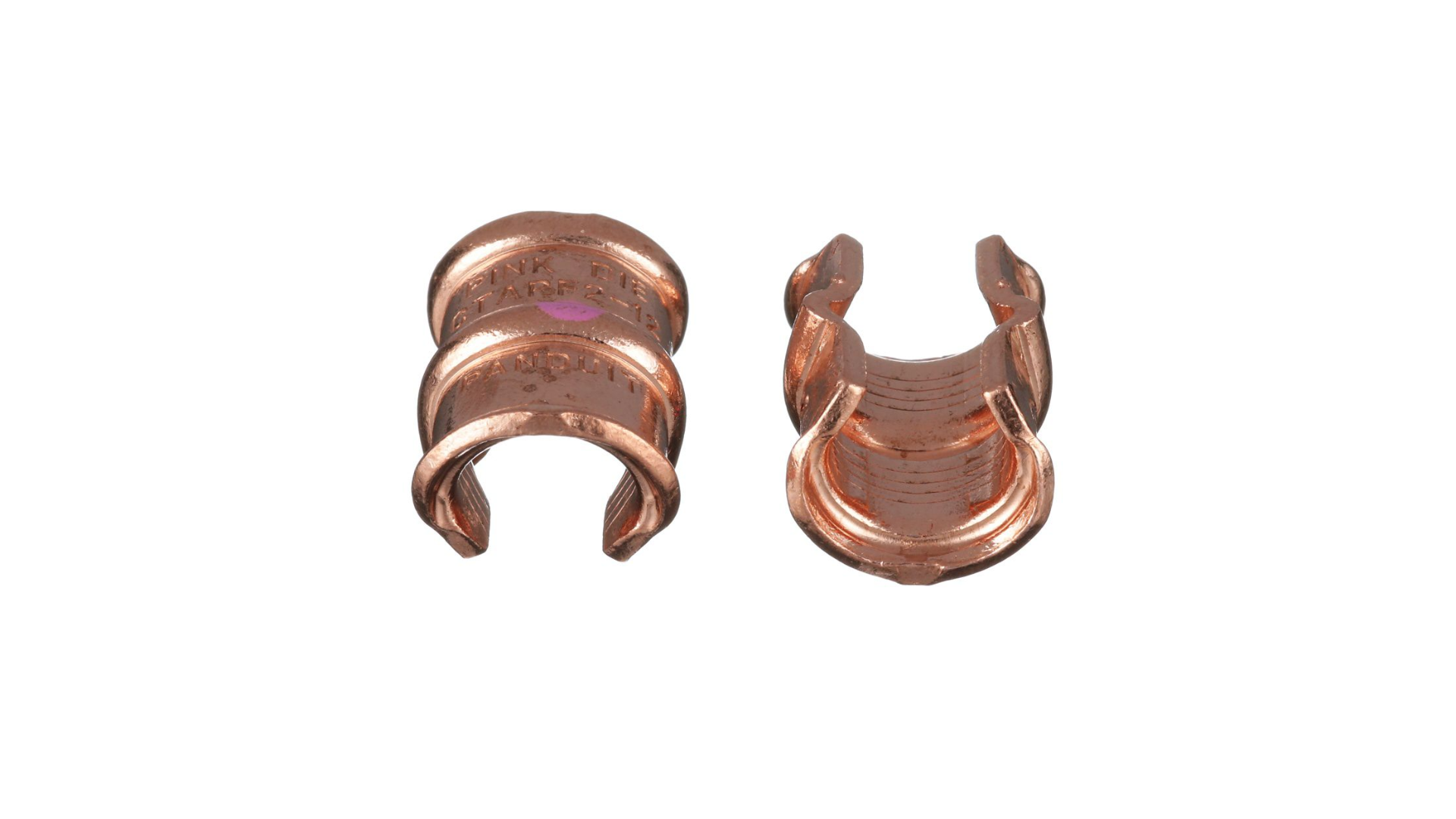

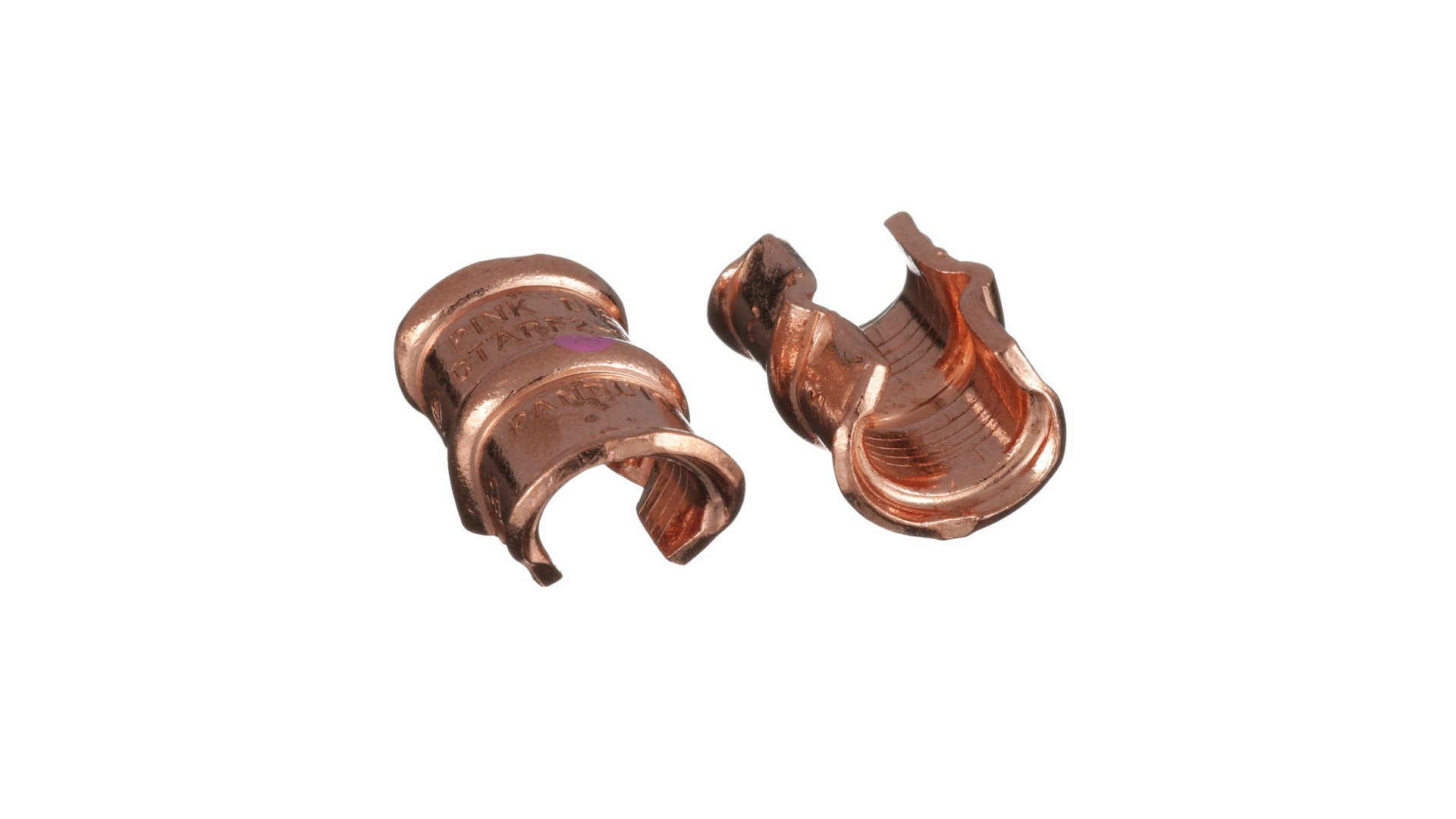

StructuredGround™ CTAPF2-12-C Comp. Tap 2-12 PANDUIT CTAPF2-12-C (Pack of 100)
Where are we? 4 Continents 9 Countries

Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Sub Brand | StructuredGround™ |
| Maximum Tap Size (AWG STR) | 4 |
| Minimum Tap Size (AWG STR) | 12 |
| Maximum Run Size (AWG STR) | 2 |
| Minimum Run Size (AWG STR) | 4 |
| Length (In.) | 1.25 |
| Thickness (In.) | 0.08 |
| Width (In.) | 1.25 |
| Panduit Die Index Number | P42M |
| Wire Strip Length (In.) | 1-5/16 |
| Inside Diameter (In.) | 0.51 |
| For Use With | AWG wire only |
| Standards Met | UL/CSA |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
StructuredGround™ CTAPF2-12-C Comp. Tap 2-12 PANDUIT CTAPF2-12-C
